Product Overview

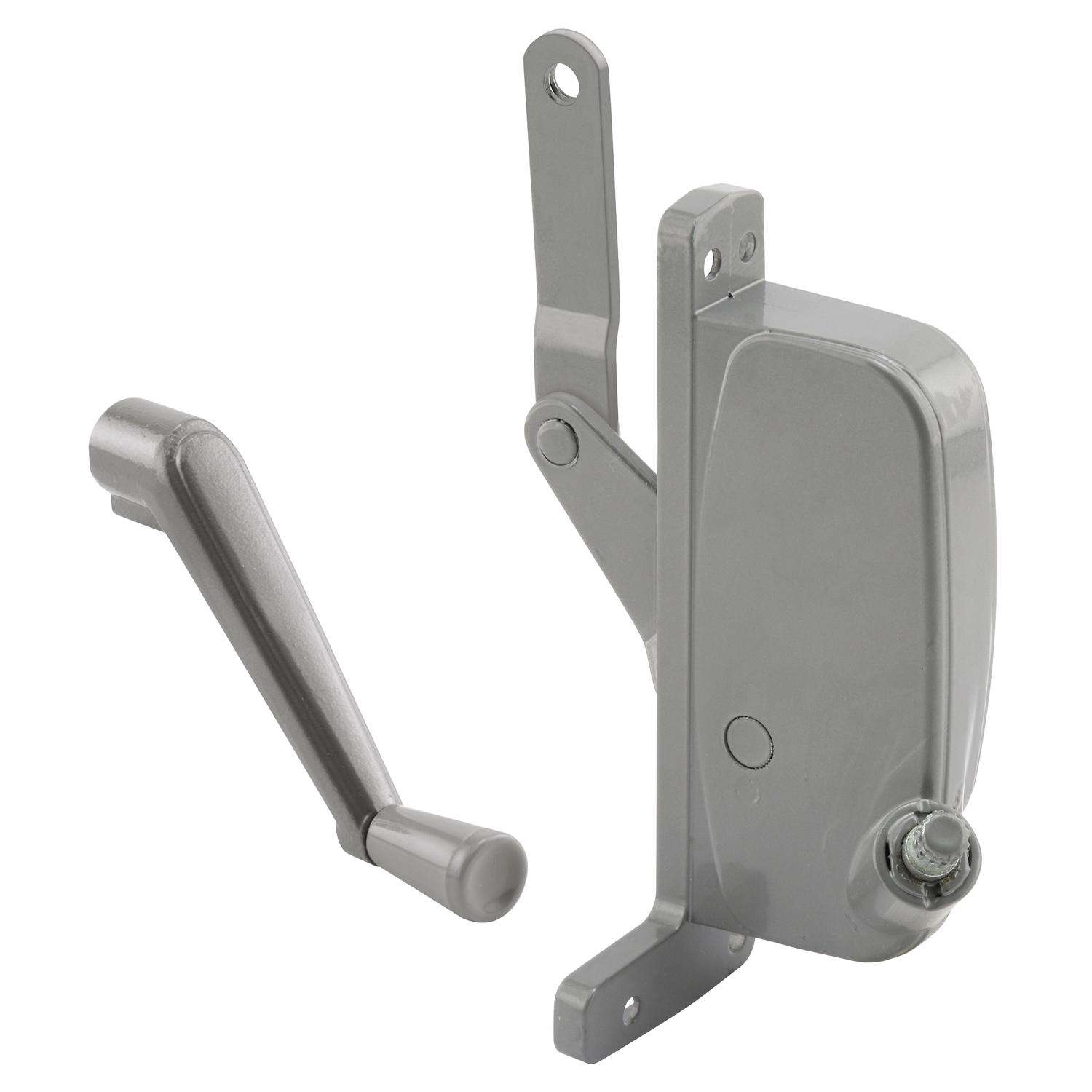

This is an awning operator of aluminum diecast construction with a gray baked enamel finish used on Pan-American Windows. It is right-handed with a matching crank handle with a 2-5/8 in. link arm. It has an L-shaped mounting hole pattern that has two top holes that are 5-1/4 in. from center of the top holes to the center of the bottom hole and the two horizontal holes in the bottom leg are 1-5/16 in. on center.
  • Constructed of diecast and steel material
  • Comes in a neutral gray color to blend with existing hardware, in a corrosion resistant, baked-on enamel finish
  • Designed for use with awning windows manufactured by Stanley Windows
  • Features an L-shaped mounting hole pattern to provide greater stability when cranking
  • Easy to install with only a few simple tools

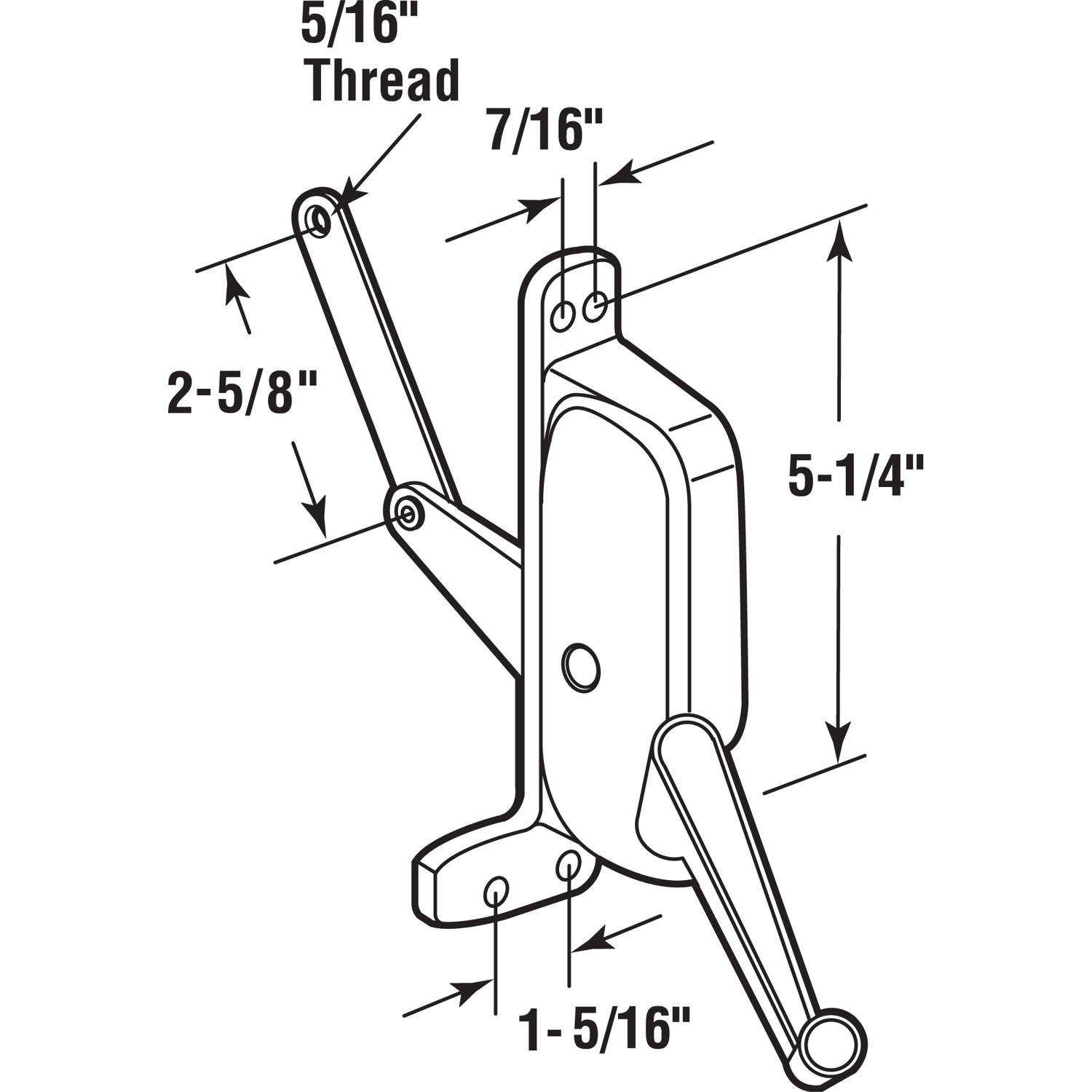

  • For further dimensional and specification information, please see the line drawing
  • A Phillips head screwdriver is required for Installation
  • For further dimensional information, please see the line drawing

Specifications

  • Brand Name: Prime-Line
  • Product Type: Window Operator
  • Brand Compatibility: Pan-American
  • Color: Silver
  • Handle Type: Awning
  • Length: 2-5/8 inch
  • Material: Steel
  • Number in Package: 1 pack
  • Orientation: Right
  • Packaging Type: Carded
  • Brand Name: Prime-Line
