Product Overview

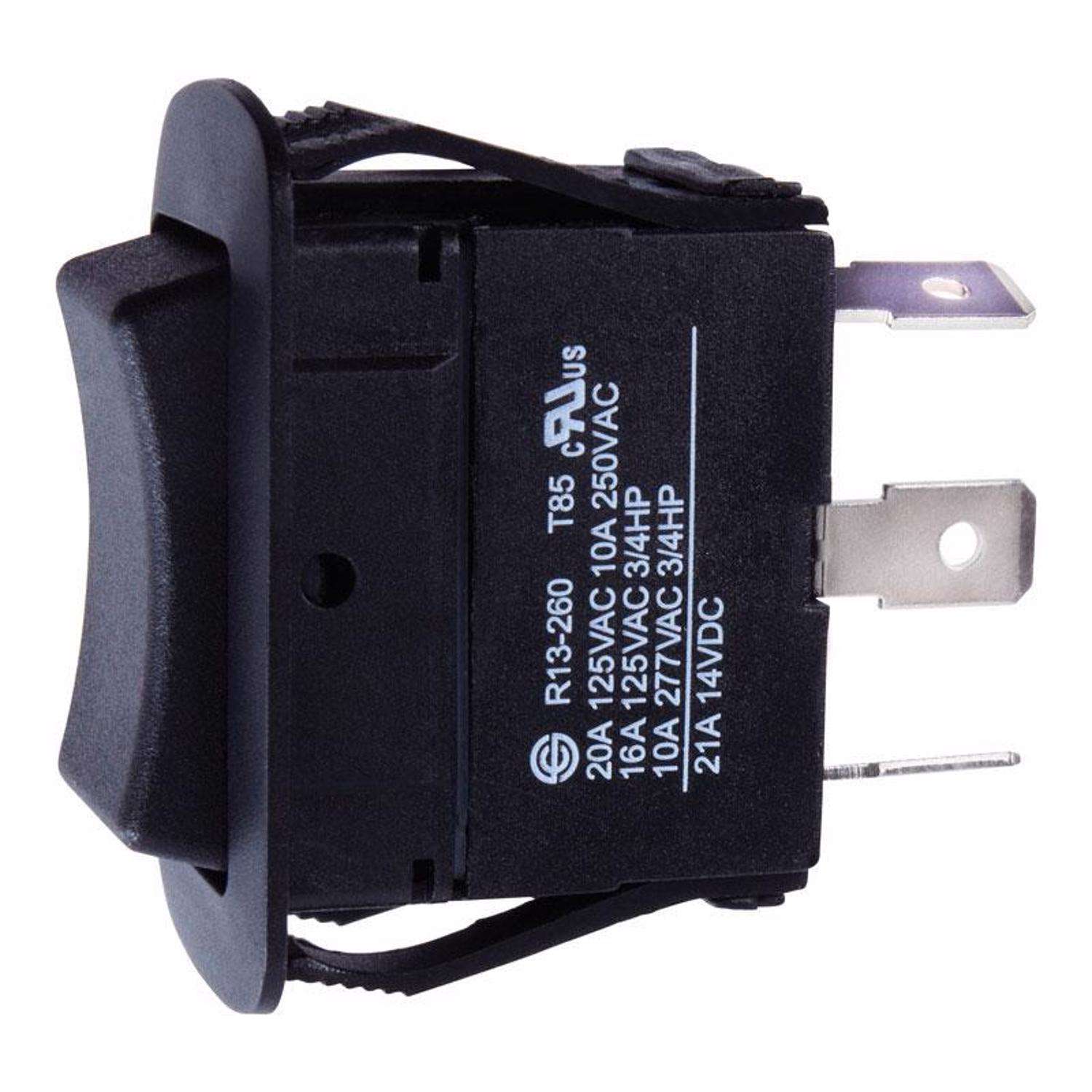

A rocker switch has a rocking lever type of actuator that makes or breaks the circuit contact when its position is changed. A momentary switch, sometimes called a spring return switch, automatically returns to the rest position. For the (On)/Off/(On) switch, the momentary position is (ON), which is denoted using parenthesis. Single pole, double throw (SPDT) is a three terminal switch that controls two single-wire circuits, permitting only one circuit to be energized at a time. It is commonly used in pairs and sometimes called a three-way switch.
  • This momentary rocker switch is commonly used for auto or marine applications.
  • Features tab terminals for an easy, quick connection.
  • Single Pole, Double Throw (SPDT)
  • (On)/Off/(On) Function
  • Rated: 20A-125VAC; 10A-250VAC; 16A-125VAC, 3/4HP; 10A-277VAC, 3/4HP; 21A-14VDC

Specifications

  • Brand Name: Jandorf
  • Product Type: Automotive/Marine Switch
  • Amps: 20 ampere
  • Color: BLACK
  • Number of Poles: Single Pole
  • Number in Package: 1 pack
  • Packaging Type: Carded
  • Brand Name: Jandorf
  • Switch Type: Rocker
  • Volts: 125 volt
  • Wall Plate Included: No
  • UL/CSA Listed: UL Listed
  • Click here to see the Safety Data Sheets for this product.
