Product Overview

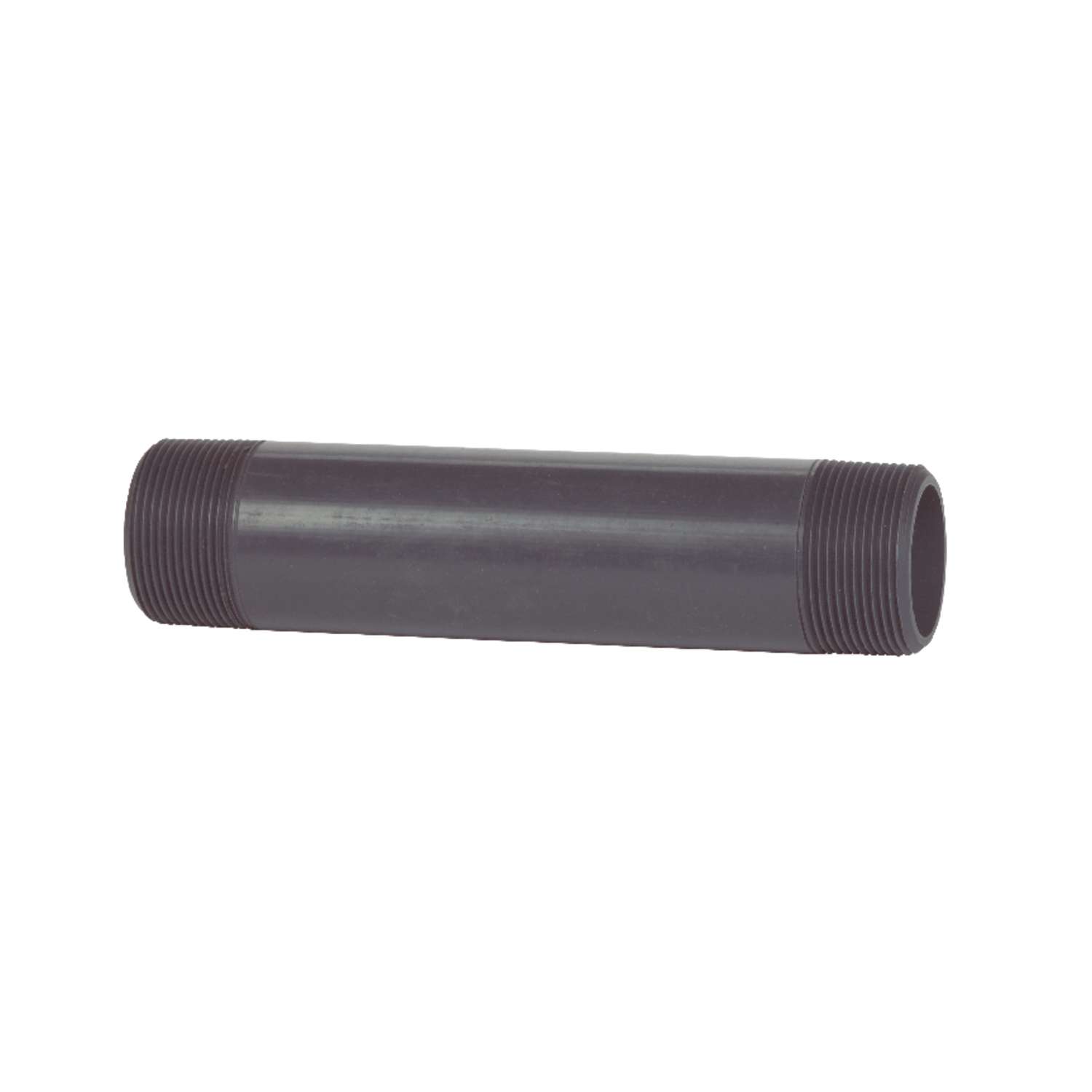

B&K Schedule 80 PVC nipples may be used in a variety of applications for transport of water and other liquids. The Schedule 80 PVC construction features superior resistance to acids, solvents and oils. Pipe thread compound or sealing tape should be applied to threaded portion of nipple. Nipples are IPS (Iron Pipe Size) and threaded to NPT (National Pipe Thread) pipe threads and meet ASTM (American Society for Testing and Materials) specifications D1785.
  • Constructed with durable, industry approved PVC material
  • Molded with a smooth interior wall resulting in less pressure loss and higher volume than conventional metal fittings
  • Pipe threads made to ANSI B1.20.1

Specifications

  • Brand Name: B&K
  • Sub Brand: ProLine
  • Product Type: Nipple
  • Application: Pressure Applications
  • ANSI Certified: Yes
  • Average Lead Content: Lead Free
  • Application: Pressure Applications
  • End 1 Diameter: 1 1/2 inch
  • End 1 Type: MIP
  • End 2 Diameter: 1 1/2 inch
  • End 2 Type: MIP
  • IAPMO Certified: No
  • Length: 8 inch
  • Maximum Pressure: 235 pound per square inch
  • Maximum Temperature: 140 degree Fahrenheit
  • Material: PVC
  • NSF Listed: Yes
  • Number in Package: 1 pack
  • Schedule Type Number: Schedule 80
  • Brand Name: B&K
  • Sub Brand: ProLIne
  • Click here to see the Safety Data Sheets for this product.
