Product Overview

Pre installed conductors within an overall protective metallic interlocked armor. 45 percent lighter than steel MC cable. Cable reverse wound for ease of pulling and installation. Conductors solid bare annealed copper per ASTM B-3, stranded copper stranding per ASTM B-8 for conductor. Conductor insulation rated 90 degree Celsius dry, 75 degree Celsius wet at 600 volt. Conductor insulation is flame retardant, heat resistant PVC with flame, oil and gasoline resistant nylon jacket.

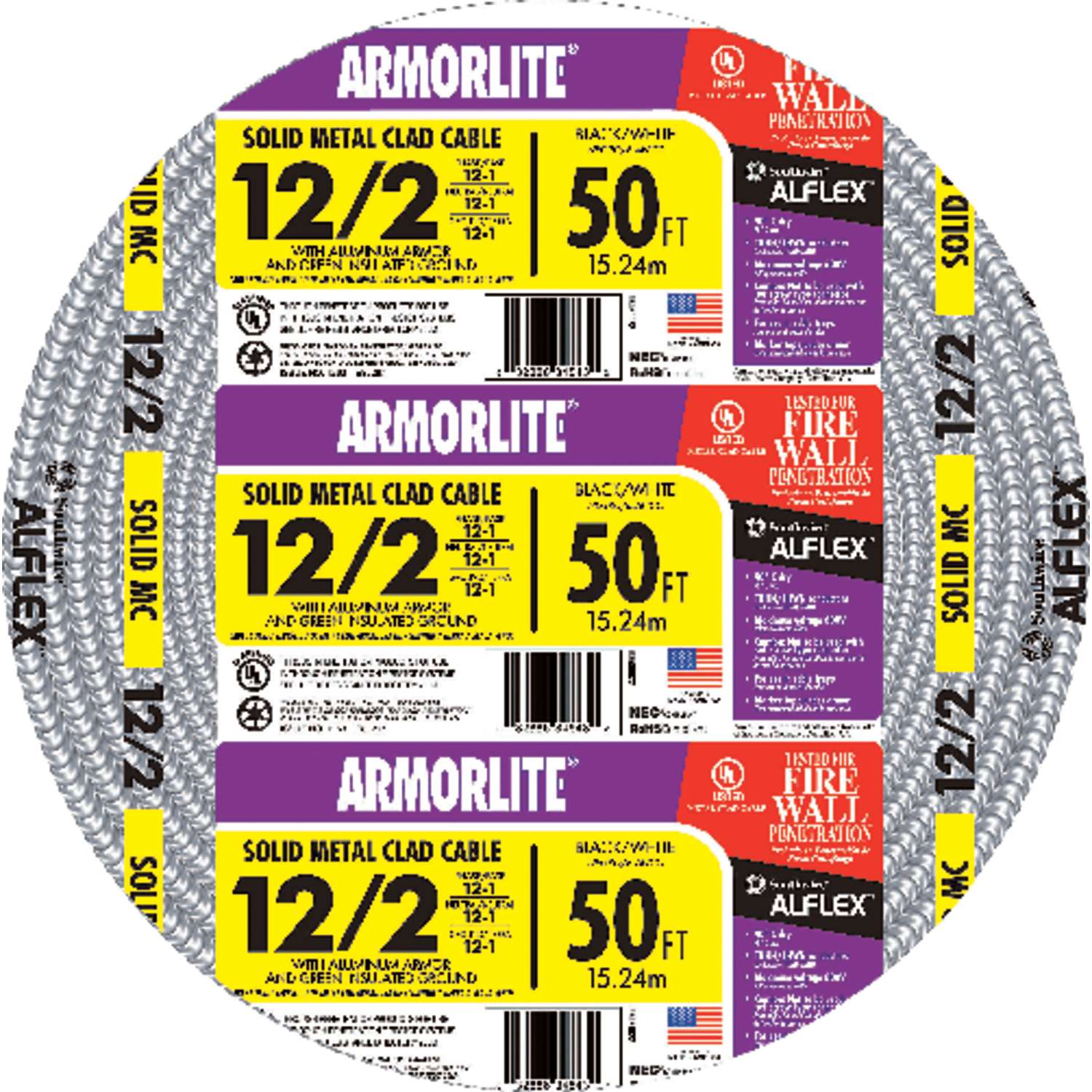

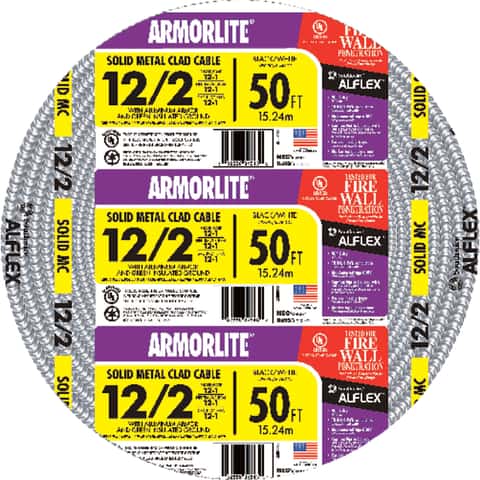

  • Armorlite MC Aluminum Armor Cable
  • MC Metal Clad
  • 600 Volts
  • For Wet and Dry Locations
  • 90C Heat Capacity
  • 12/2 x 50'
  • 0.485" nominal outside diameter
  • 4.5" inside bend diameter

Specifications

  • Brand Name: Southwire
  • Product Type: Cable
  • Amp Rating: 20 ampere
  • Cable or Wire Type: Aluminum Armored MC
  • Conductor Material: Copper
  • Conductor Gauge: 12 Gauge
  • Color: Black/Green/White
  • Direct Burial: Yes
  • Flame Retardant: Yes
  • Ground Material: Aluminum
  • Jacket Material: Aluminum
  • Number of Conductors: 2
  • Brand Name: Southwire
  • Stranded or Solid: Solid
  • Temperature Rating: 90 degree Fahrenheit
  • UL Listed: Yes
  • Voltage Rating: 600 volt
  • Wet Location Use: Yes
  • Wire Length: 50 foot
  • Indoor or Outdoor: INDOOR
  • Gauge/Conductors: 12/2
  • Sunlight/UV Resistant: Yes
  • Click here to see the Safety Data Sheets for this product.
