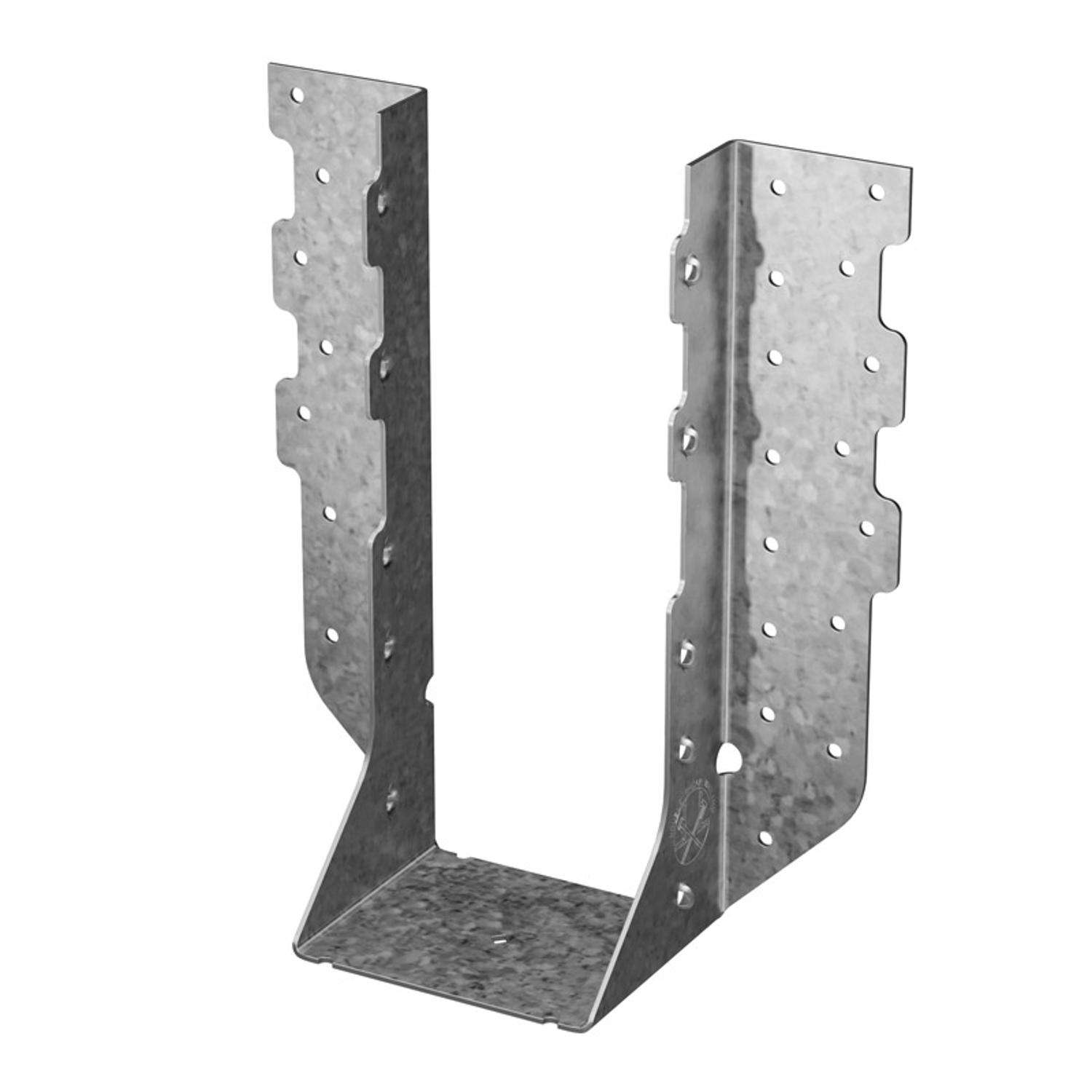

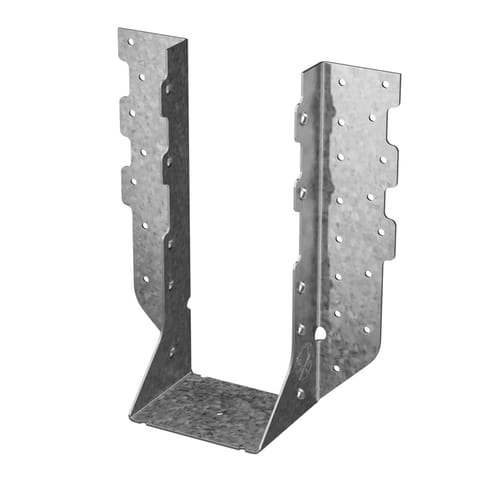

Simpson Strong-Tie 3 in. H X 7.63 in. W 14 Ga. Steel Joist Hanger
Shop all Simpson Strong-Tie
Item # 5006500
| Mfr # HHUS410
Roll over image to zoom
Image gallery
Product images
Roll over image to zoom
Product images
Product images
Price
$16.99
Pickup
Delivery
From:
Returns
Free returns on most items within 30 days.
Product Overview

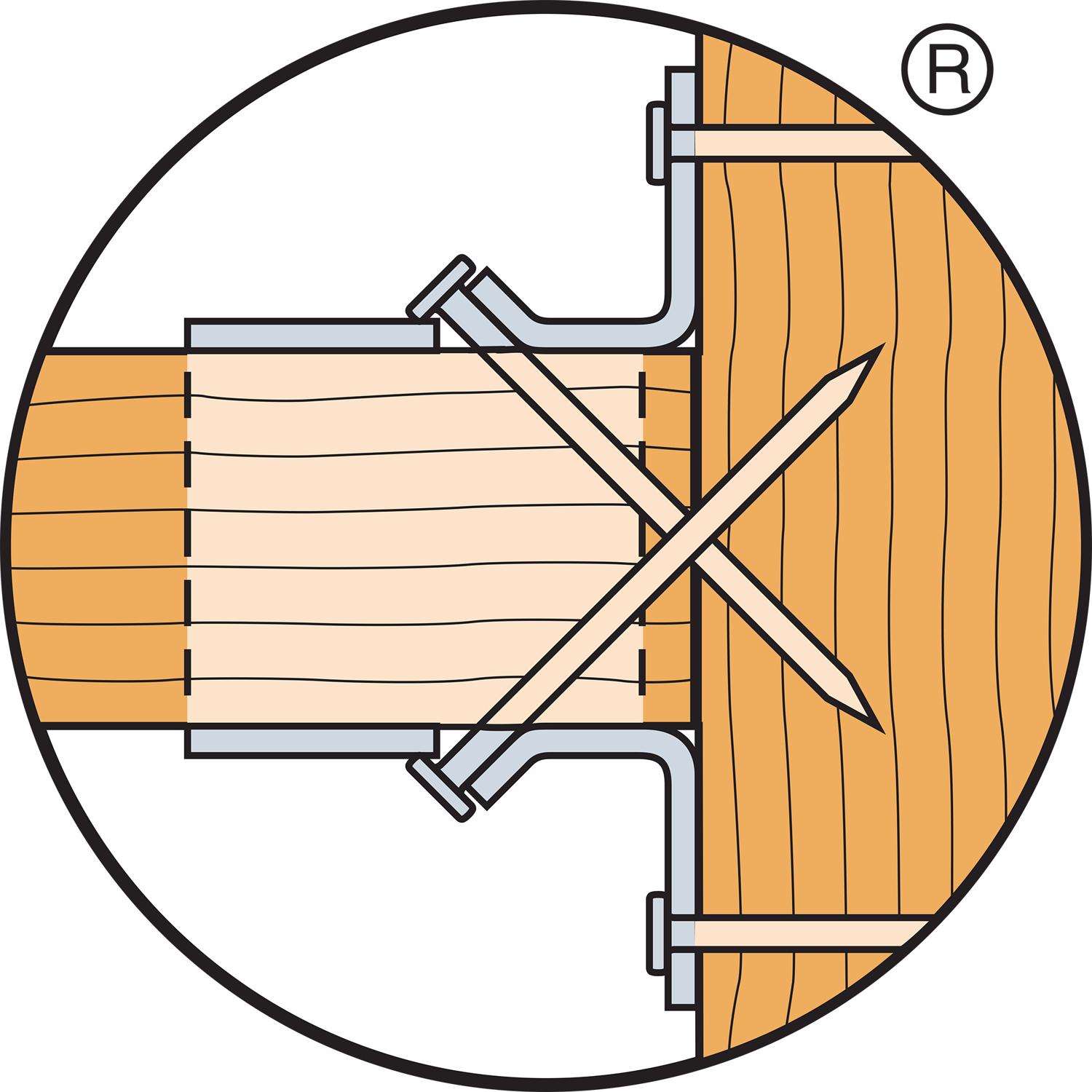

The HHUS is designed for applications where higher loads are needed. This heavy-capacity hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This feature allows for fewer nails, faster installation and the use of all common nails for the same connection. *
- Can be installed after the beam is secured in place *
- Value-engineered hanger designed to carry high loads at an economical price *
- HHUS-series hangers are tested, load rated and code compliant *
- Nominal joist size: 4x10 *
- Made from 14-gauge steel *
- Galvanized (G90) for extra corrosion resistance *
Specifications
- Brand Name: Simpson Strong-Tie
- Product Type: Joist Hanger
- Gauge: 14 Gauge
- Height: 3 inch
- Material: Steel
- Brand Name: Simpson Strong-Tie
- Width: 7.63 inch
- Click here to see the Safety Data Sheets for this product.
