Price
$7.79
Pickup


Delivery


From:

add to cart Image
Returns

Free returns on most items within 30 days.

Product Overview

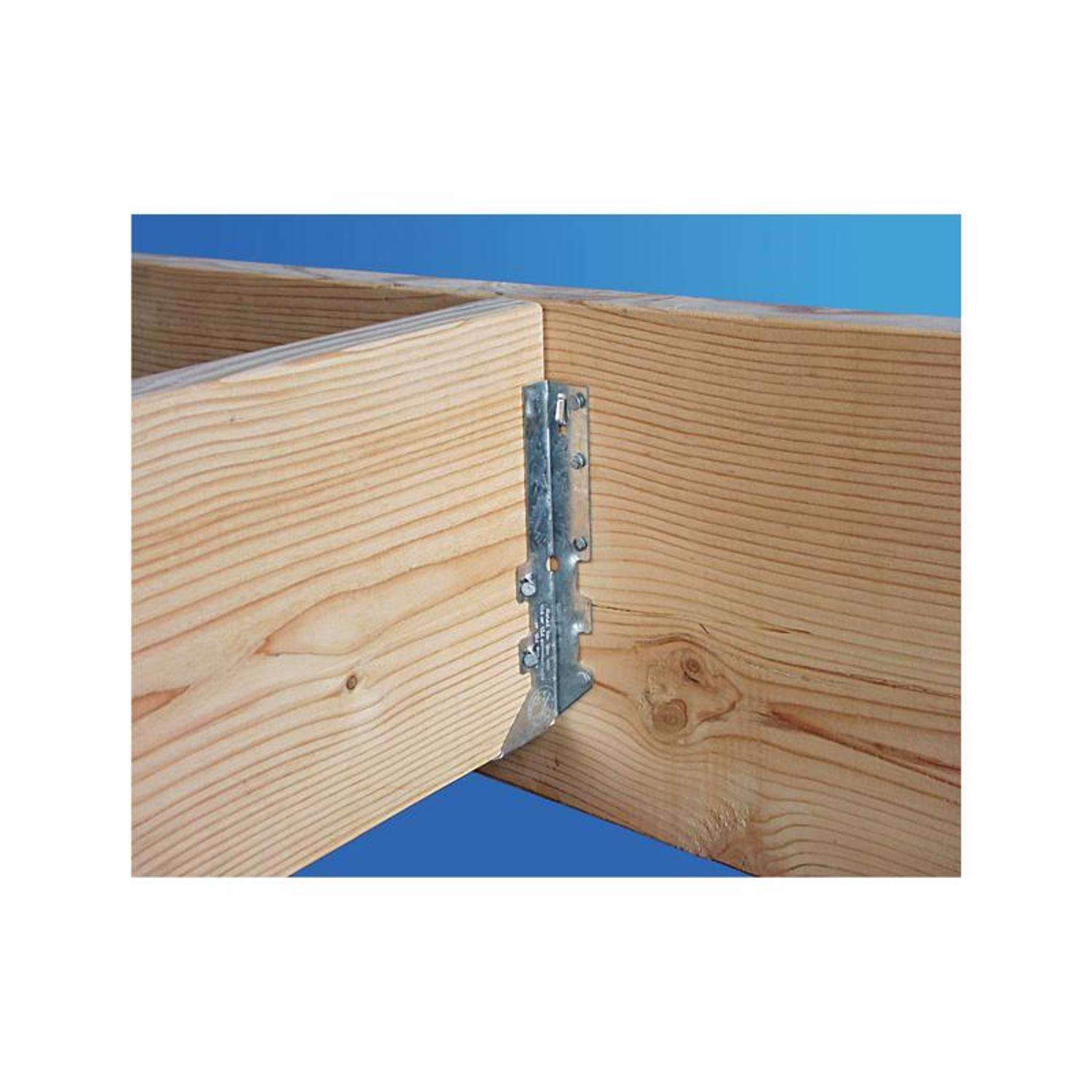

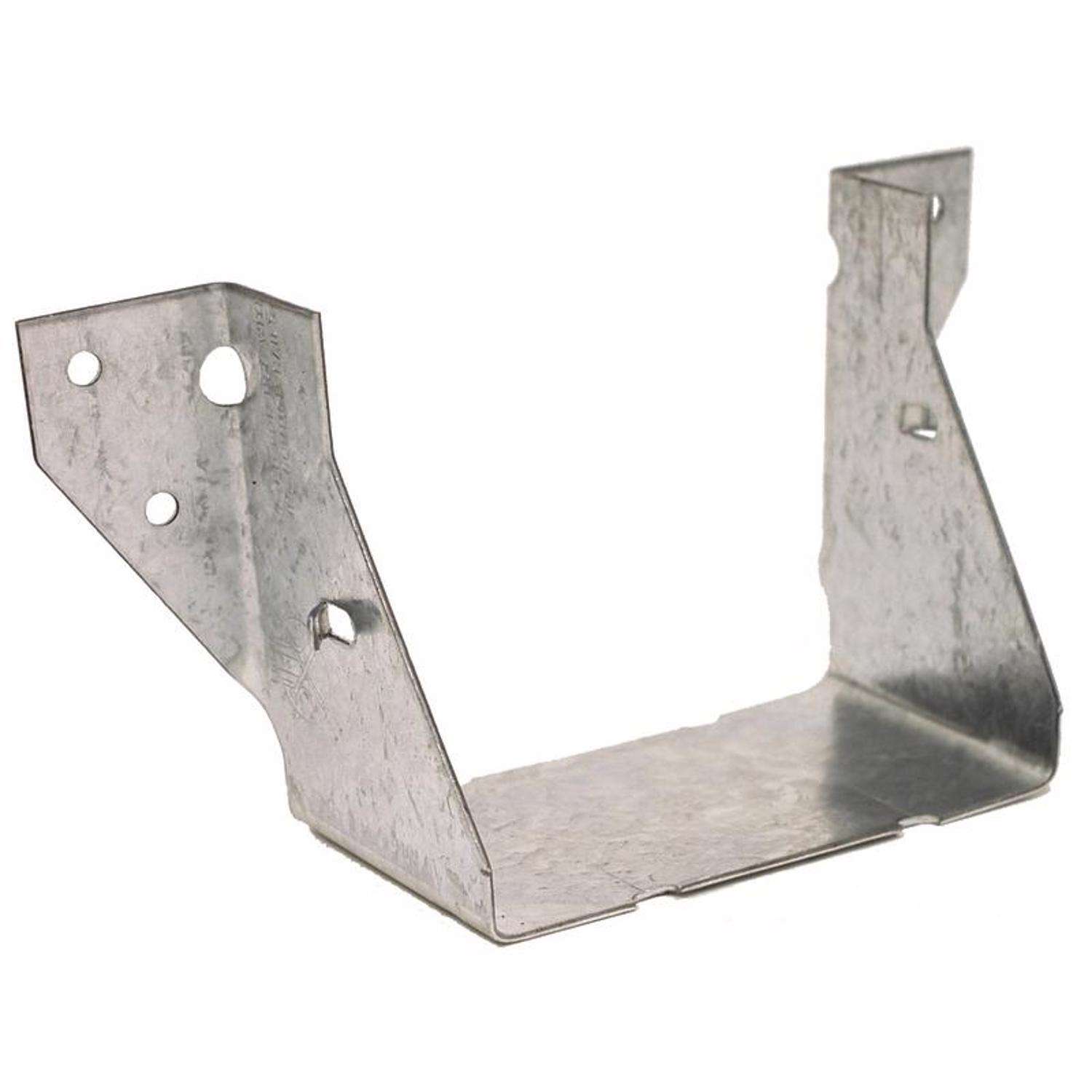

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. LUS joist hangers provide a connection between a joist and header.

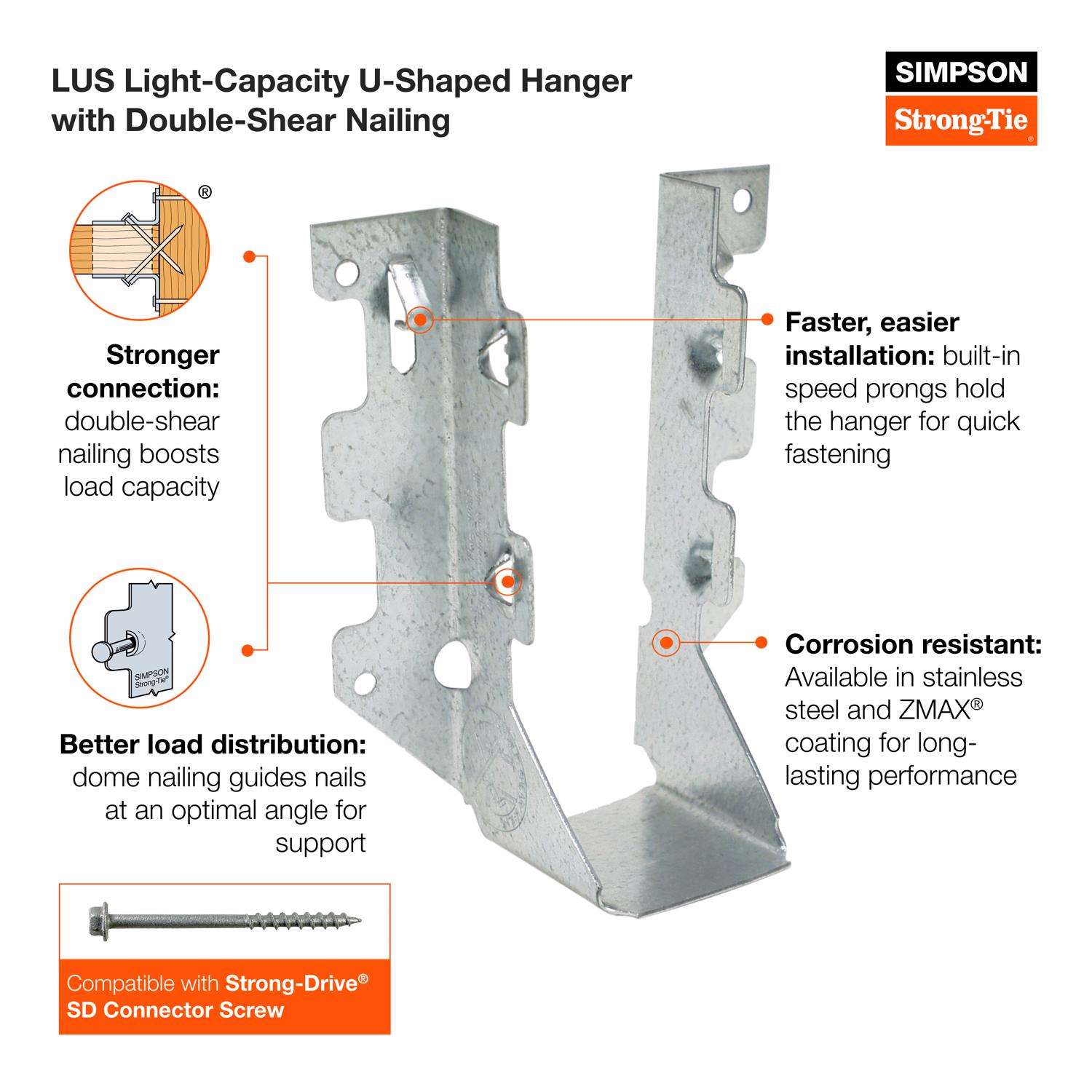

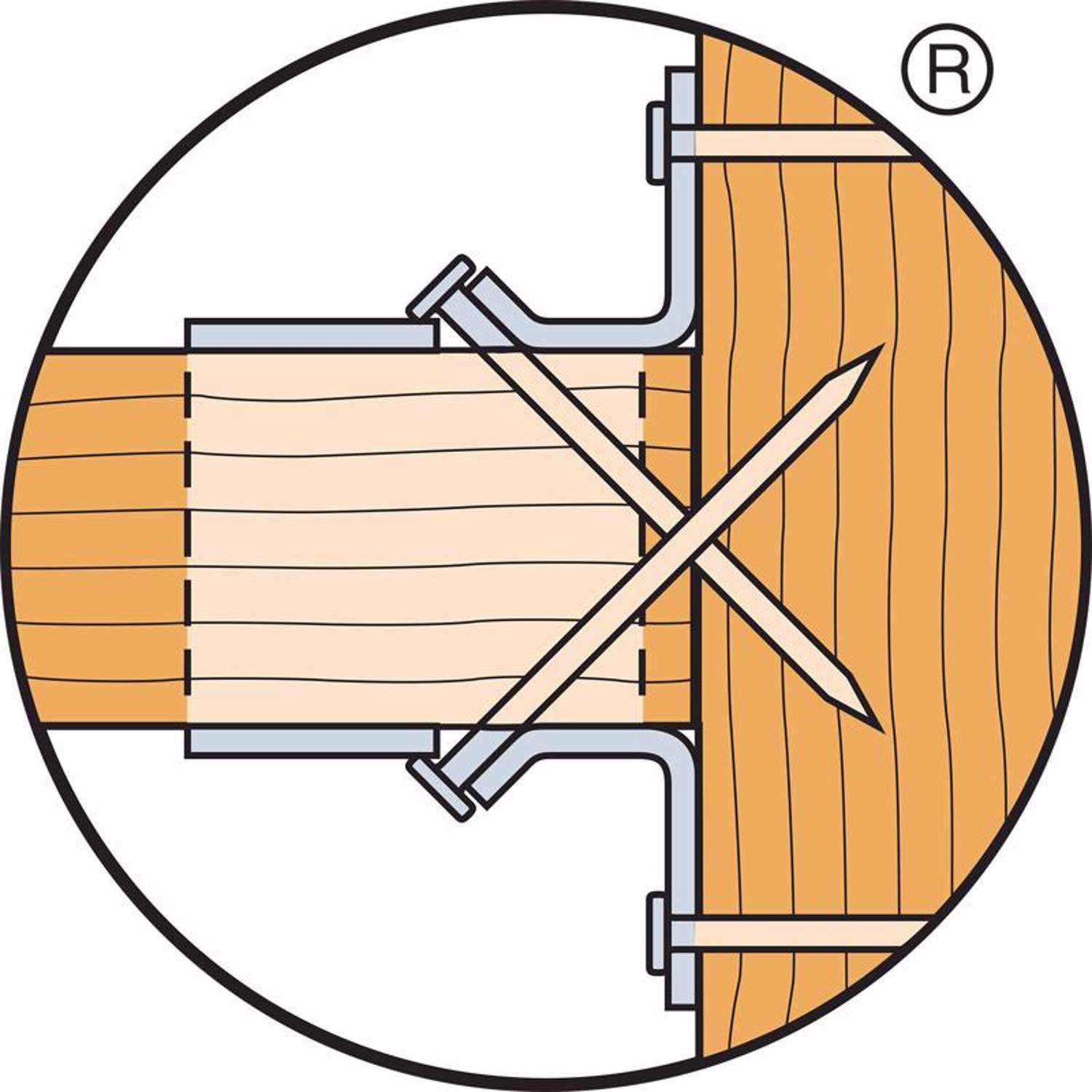

  • Patented double shear nailing design provides greater strength with fewer nails
  • Speed prongs for fast and easy installation
  • Angled joist nailing easier in tight spaces
  • Do not bend or remove tabs

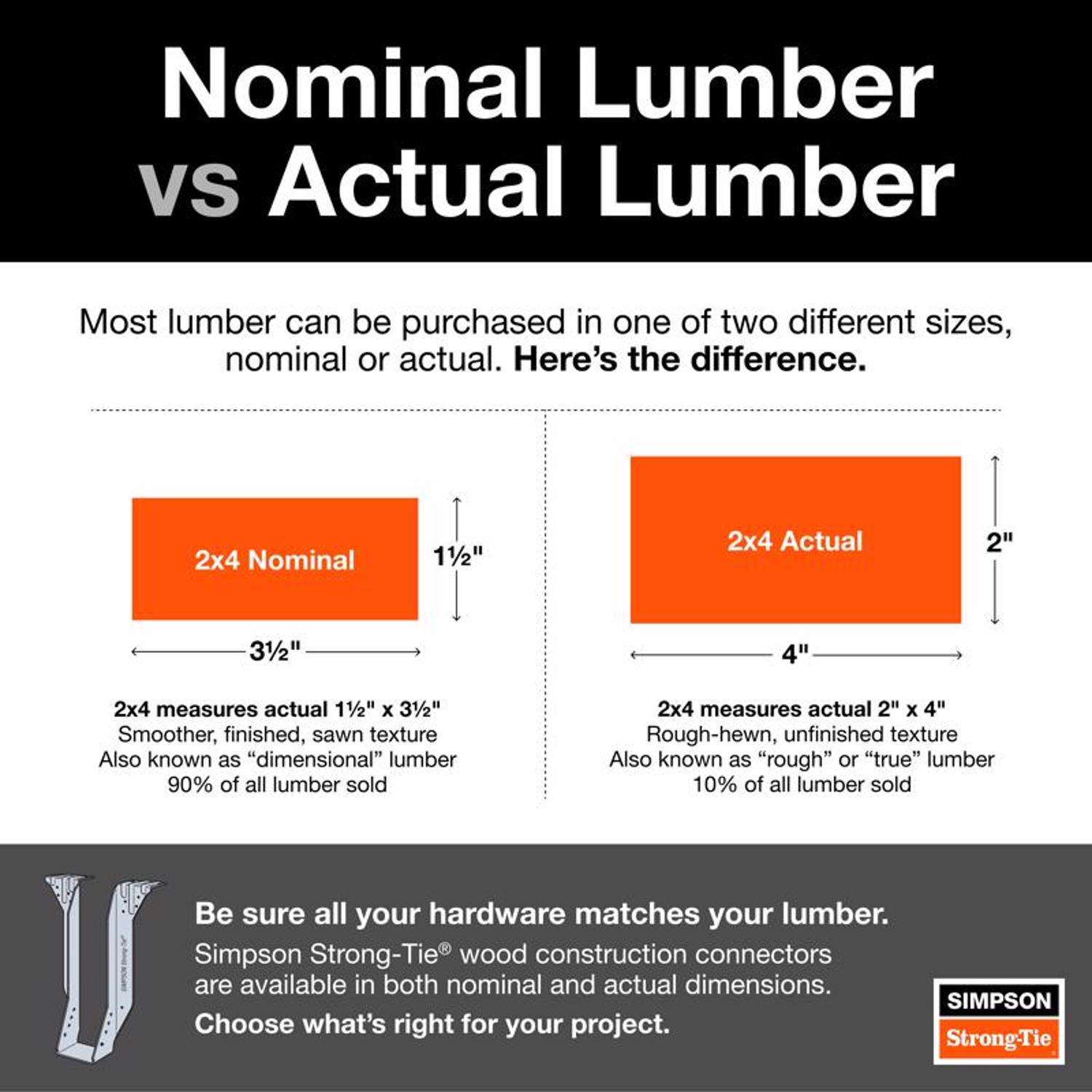

  • Nominal joist size: 4x4 *
  • Made from 18-gauge steel *
  • Cannot be modified

Specifications

  • Brand Name: Simpson Strong-Tie
  • Sub Brand: ZMax
  • Product Type: Joist Hanger
  • Gauge: 18 Gauge
  • Joist Fasteners: 16d
  • Height: 3 inch
  • Material: Galvanized Steel
  • Brand Name: Simpson Strong-Tie
  • Width: 3.56 inch
  • Sub Brand: ZMAX
  • Click here to see the Safety Data Sheets for this product.
