Product Overview

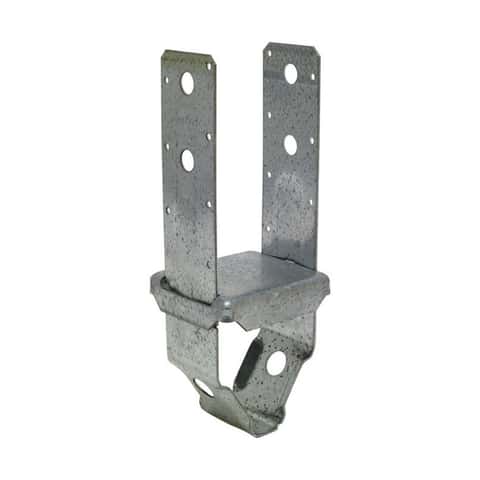

Simpson Strong-Tie post bases connect the bottom of wood posts or columns to a concrete foundation. The PBS is designed to provide a secure connection between a post (or column) and concrete in projects including decks, patio covers and other top-supported structures. These post bases are elevated 1 in. to avoid contact of the wood post with standing water to help prevent rot at the post end. *
  • Provides a 1-in. standoff between post and concrete that meets code requirements *
  • Embeds in wet concrete before it has cured and is designed to install flush with the concrete surface *
  • Embossment in the vertical straps provides increased strength *
  • Optional fastening with either nails or bolts *
  • Nominal post size: 4x4 *
  • Base 12-ga. steel; Strap 14-ga. steel *

Specifications

  • Brand Name: Simpson Strong-Tie
  • Sub Brand: ZMax
  • Product Type: Post Base
  • Gauge: 12, 14 Gauge
  • Joist Fasteners: 16d
  • Height: 6.25 inch
  • Material: Galvanized Steel
  • Brand Name: Simpson Strong-Tie
  • Width: 3.56 inch
  • Sub Brand: ZMAX
  • Click here to see the Safety Data Sheets for this product.
