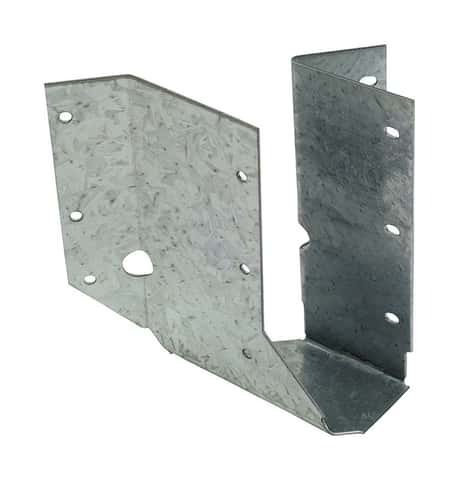

Simpson Strong-Tie ZMax 2.56 in. H X 4.65 in. W 16 Ga. Galvanized Steel Joist Hanger
Shop all Simpson Strong-Tie
Item # 5607981
| Mfr # SUR26Z
Roll over image to zoom
Image gallery
Product images
Roll over image to zoom
Product images
Product images
Price
$18.99
Pickup
Delivery
From:
Returns
Free returns on most items within 30 days.
Product Overview
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field skew able and slope able options. SUL/SUR hangers provide a 45 degree connection between a joist and header.
- SUR = skewed right *
- Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist *
- These hangers cannot be modified but will accommodate a 40-degree to 50-degree skewed joist *
- Available with the acute flange turned in to accommodate end-of-wall installation for solid sawn sizes only (SURC or SULC) *
- Seat width: 1-9/16 inches *
- Nominal joist size: 2x6 or 2x8 *
Specifications
- Brand Name: Simpson Strong-Tie
- Sub Brand: ZMax
- Product Type: Joist Hanger
- Gauge: 16 Gauge
- Joist Fasteners: 16d
- Height: 2.56 inch
- Material: Galvanized Steel
- Brand Name: Simpson Strong-Tie
- Width: 4.65 inch
- Sub Brand: ZMAX
- Click here to see the Safety Data Sheets for this product.
