Product Overview

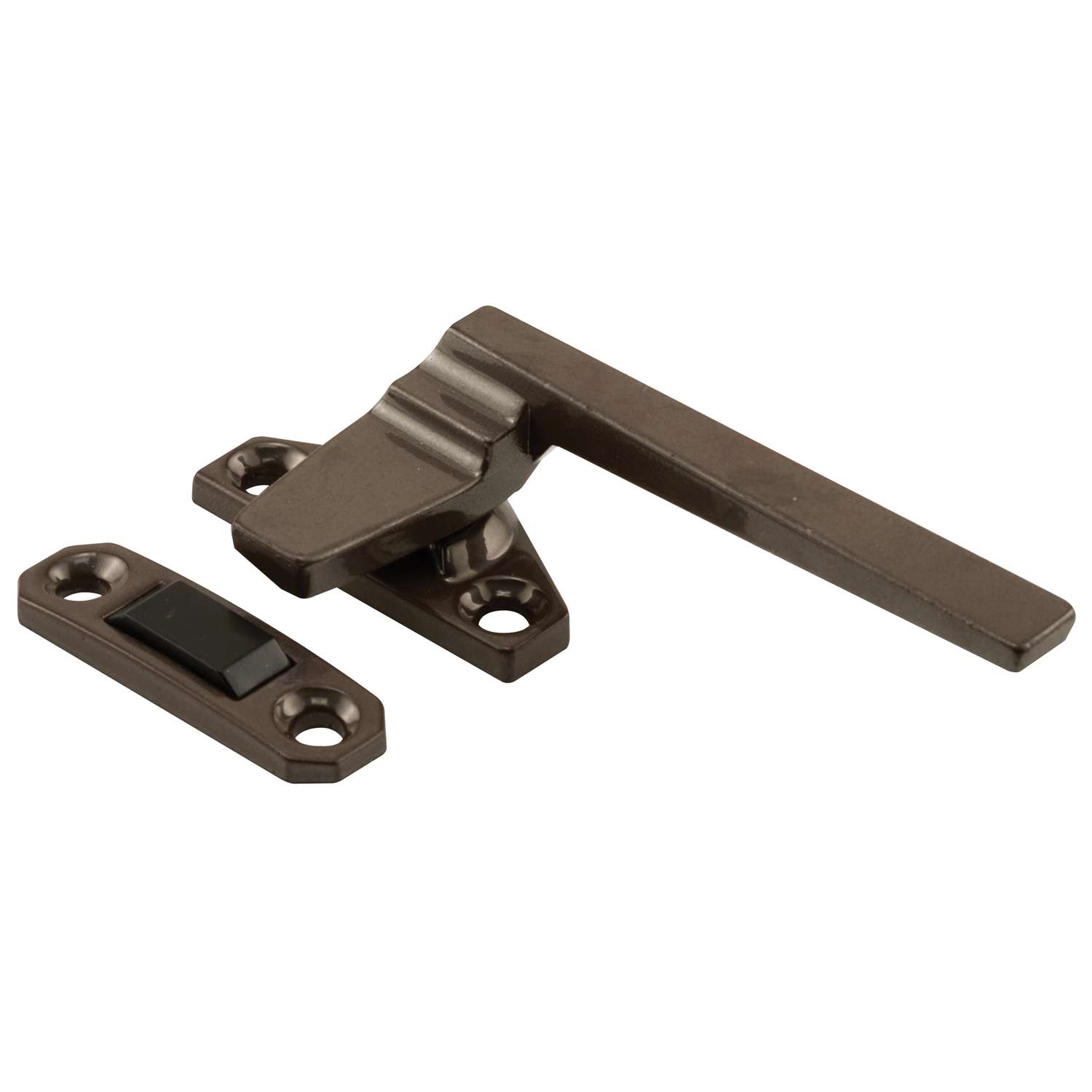

This is a right-handed diecast casement locking handle with an offset base found on many contemporary casement windows (as viewed for the inside looking out). The mounting holes are positioned offset of the centerline down the base placing them closer to the window frame edge or to be more exact, 13/16 in. from the tip of the lock to the center of the mounting holes. This handle has an a bronze finish with mounting holes for the handle assembly and the keeper at 1-1/2 in. apart.
  • Used by many contemporary window manufactures
  • This contemporary design is similar to a Truth hardware design
  • 1-1/2 in on center mounting holes
  • Diecast construction with a bronze finish
  • Matching left hand casement operator is Prime-line part H 3598
  • Mounting hardware included
  • A Phillips head screwdriver is required for installation

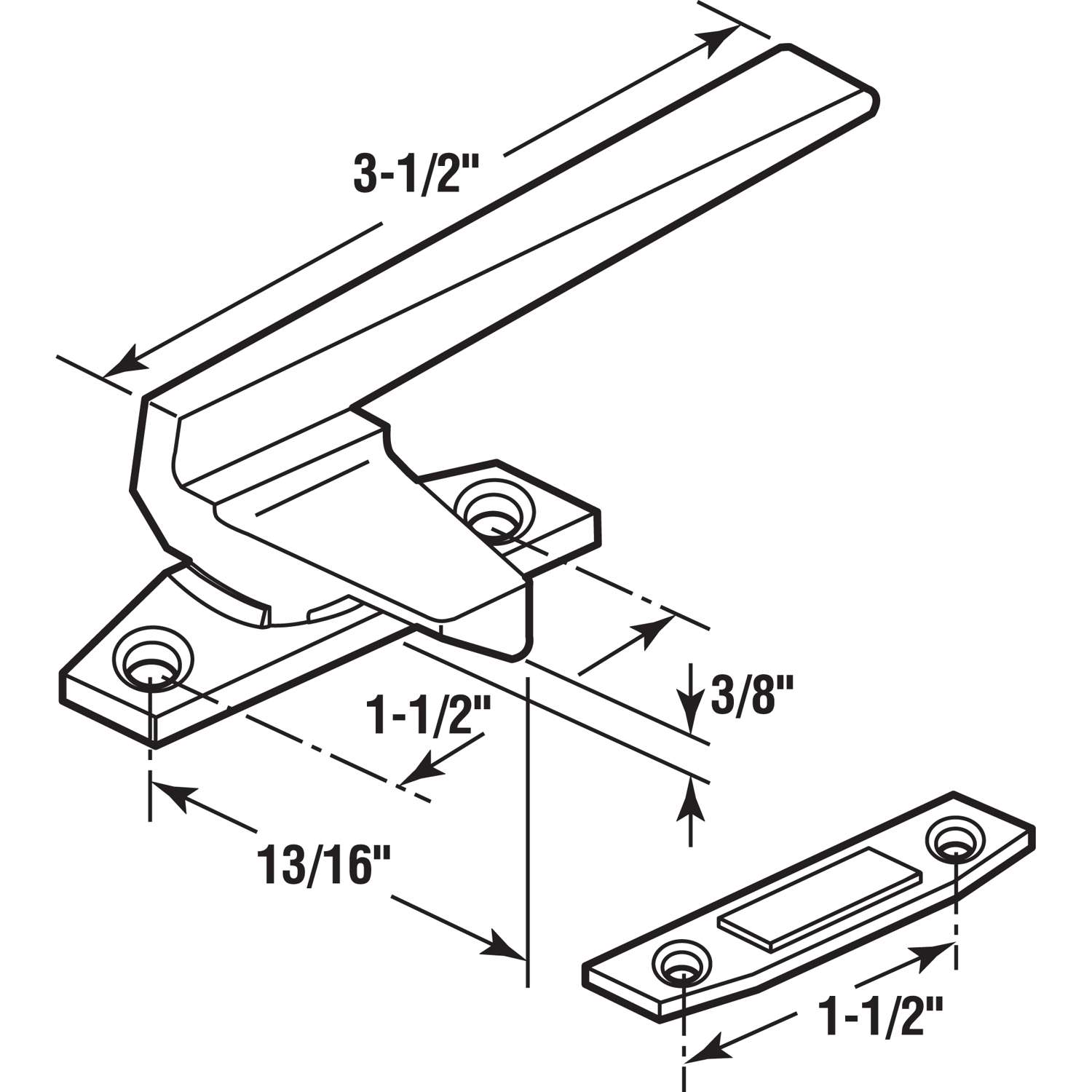

  • For further dimensional information, please see the line drawing

Specifications

  • Brand Name: Prime-Line
  • Product Type: Casement Locking Handle
  • Color: Bronze
  • Finish: Die-Cast
  • Hardware included: YEs
  • Length: 3.5 inch
  • Material: Zinc
  • Number in Package: 1 pack
  • Packaging Type: Carded
  • Right or Left: Right
  • Brand Name: Prime-Line
