MRCOOL 2nd Gen Universal Hyper Heat 2.5 ton 30K BTU 17.2 SEER DC Inverter Heat Pump System
- Shipping Included. Excludes Alaska and Hawaii
Free returns on most items within 30 days.
Product Overview

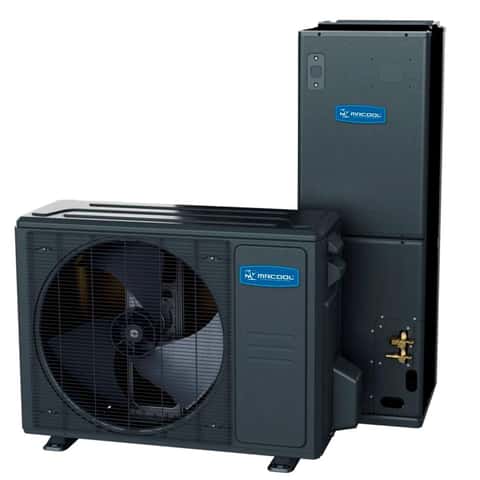

- What's Included: Universal DC Inverter Condensing Unit (UHP18030-O) and Universal DC Inverter Air Handler (UAH18030-O)
- This heat pump system includes the indoor air handler (UAH18030-O) and the outdoor condensing unit (UHP18030-O). Thermostat, refrigerant line set, electrical disconnect and wiring not included.
- The 2nd generation universal DC inverter heat pump system prioritizes sustainability by utilizing eco-friendly R-454B refrigerant, the system has a cooling SEER2 rating of 17.2 and a heating HSPF4 rating of 10.8
- DC inverter compressor with state-of-the-art variable speed technology, providing maximum comfort with maximum efficiency, designed to perform in both below zero temperatures and scorching heat
- Automatic voltage identification - the air handling unit is able to automatically sense the connected voltage (110V or 230V), no need to do a manual conversion or rewire
- Multi-positional - air handler is compatible with upflow, downflow and horizontal configurations, narrow width- air handler is the same width as most furnaces, making it a suitable option for any application
- An optional 5kW, 8kW, 10kW or 15kW heat kit is available for those who need additional heating (not included)
- The heating operating range is from -22 F to 75 F with 100 percent heating output at -13 F, the cooling operating range is from -22 F to 122 F with 100 percent cooling output at 110 F
Specifications
- What's Included: Universal DC Inverter Condensing Unit (UHP18030-O) and Universal DC Inverter Air Handler (UAH18030-O)
- Brand Name: MRCOOL
- Sub Brand: UHP1830AH30-O
- Product Type: DC Inverter Heat Pump System
- Decibel Rating: 49 decibel
- Energy Efficiency Ratio: 12 Energy Efficiency Ratio
- Brand Name: MRCOOL
- Series: 2nd Gen Universal Hyper Heat
- Volts: 230 volt
- Sub Brand: UHP1830AH30-O
- Certification and Listings: UL/CSA/ETL listed, AHRI Certified, NEEP
- Seasonal Energy Efficiency Ratio: 17.2 Seasonal Energy Efficiency Ratio
- Condenser Height: 31.89 inch
- Condenser Width: 37.24 inch
- Condenser Depth: 16.14 inch
- BTU Rating: 30K BTU
- Cooling Capacity: 2.5 Tons
- Evaporator Depth: 21.50 inch
- Evaporator Height: 53.98 inch
- Evaporative Width: 17.52 inch
