Product Overview

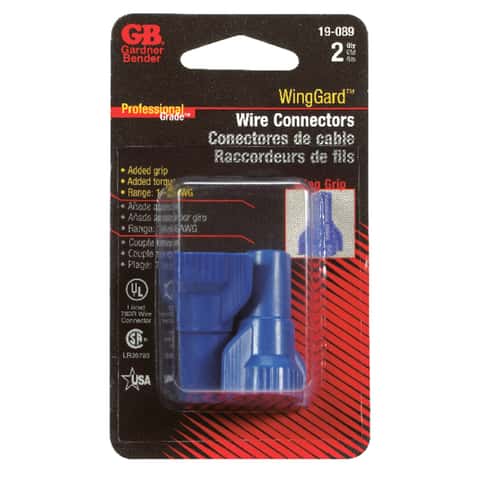

GB's WingGard twist-on wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that one size can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.
  • Unsurpassed quality and durability in a high-leverage, easy-on wing-type design
  • Easy-on, easy-off without tools
  • Expandable square-wire spring instantly adjusts to the shape and size of the splice, then bites down to thread onto the wires without ratcheting and creates a strong, vibration-resistant connection
  • No pre-twisting or tools are necessary
  • Tough thermoplastic shell shields against environmental extremes
  • Flame-retardant, non-porous, and non-corrosive shell resists surface cracking and chemical action
  • Temperature rating: 105 degrees C, 221 degrees F
  • Superior flash-over protection, high dielectric shell features deep skirt design to prevent exposure of bare wire
  • Buttress threads screw into wire insulation

Specifications

  • Brand Name: Gardner Bender
  • Sub Brand: WingGard
  • Product Type: Wire Connector
  • CSA LIsted: Yes
  • Color: BLUE
  • Number in Package: 2 pack
  • Packaging Type: Carded
  • Brand Name: Gardner Bender
  • UL Listed: Yes
  • Wire Size: 14-6 Gauge
  • Wire type: Copper Wire
  • Sub Brand: WingGard
  • Click here to see the Safety Data Sheets for this product.
