Product Overview

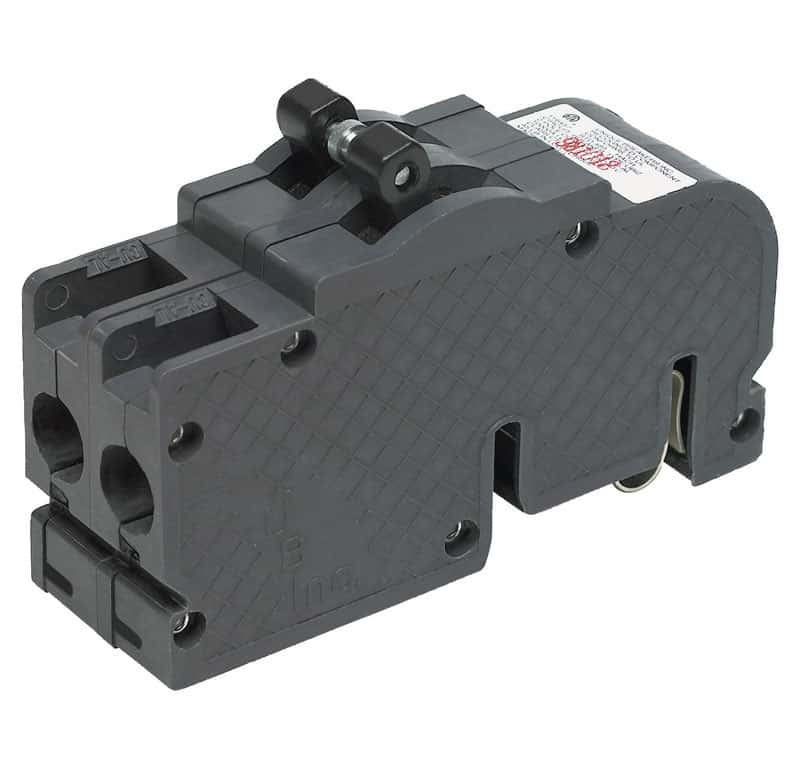

The HACR-rated Zinsco Thick 60 amp 1-1/2 inch Double-Pole Type Z UBI Replacement Circuit Breaker is for use with Zinsco load centers. This replacement circuit breaker is for typical applications up to 25400 watt, such as large central-air conditioners and electrical additions like sub-feed panel boxes.
  • Zinsco Replacement Circuit Breaker : QC50
  • 2 Pole breaker in a 1 body thick series
  • Intertek ETL Listing to UL Standard 489 for US and Canada Molded case circuit breakers
  • Manufactured New by Connecticut Electric
  • For use in Zinsco Type QC circuit breaker panels
  • Plug in type
  • 50 AMP - 120/240 VAC - 10,000 AIC
  • May also be branded as Sylvania (i.e. Sylvania QC15)
  • RF sealed clamshell package with security tag

Specifications

  • Brand Name: Connecticut Electric
  • Sub Brand: UBIZ
  • Product Type: Circuit Breaker
  • Amps: 50 ampere
  • CSA LIsted: No
  • Circuit Protection Type: Standard
  • Depth: 2 inch
  • Height: 6 inch
  • Mounting Type: Plug-In
  • Number of Poles: 2-Pole
  • Packaging Type: Pegged
  • Brand Name: Connecticut Electric
  • UL Listed: No
  • Volts: 120/240 volt
  • Width: 6-1/4 inch
  • Indoor or Outdoor: INDOOR
  • Sub Brand: UBIZ
  • Click here to see the Safety Data Sheets for this product.
