Product Overview

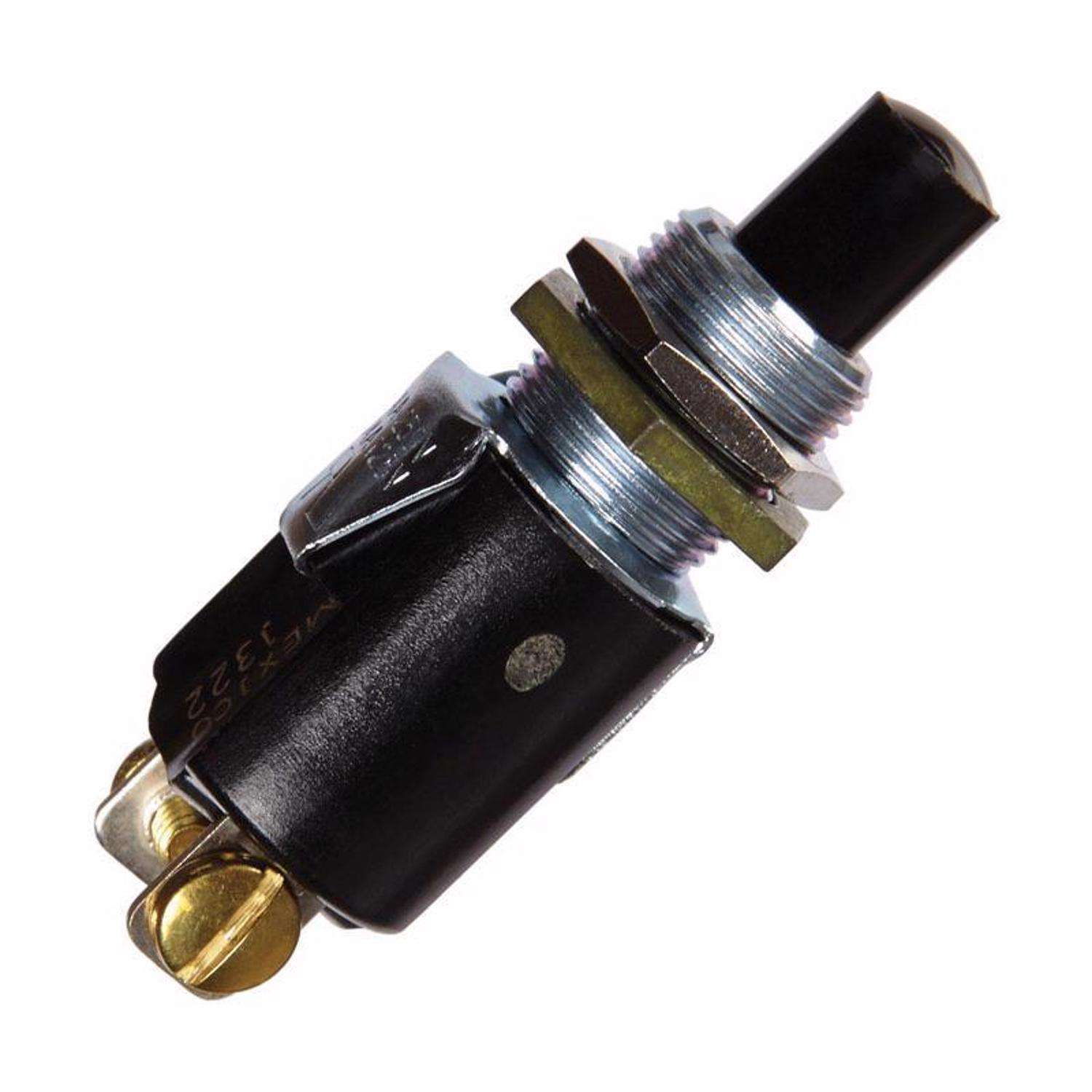

A plunger switch has an actuator that makes or breaks the circuit contact when its button is depressed. A momentary switch, sometimes called a spring return switch, automatically returns to the rest position. A normally on switch (also called a normally closed circuit), remains in the on rest position until pressure is applied to the actuator. Single pole, single throw (SPST) is a two terminal switch that opens or closes one circuit.
  • This momentary plunger switch is commonly used for household appliances.
  • Features screw terminals for a practical and resistant connection.
  • Single Pole, Single Throw (SPST)
  • Normally On Function
  • Rated: 1/4A-250V, 3/4A-125V

Specifications

  • Brand Name: Jandorf
  • Product Type: Appliance Switch
  • Amps: 0.25 ampere
  • Color: BLACK
  • Number of Poles: Single Pole
  • Number in Package: 1 pack
  • Packaging Type: Carded
  • Brand Name: Jandorf
  • Switch Type: Momentary/Normally On
  • Volts: 125 volt
  • Wall Plate Included: No
  • UL/CSA Listed: UL Listed
  • Click here to see the Safety Data Sheets for this product.
