Product Overview

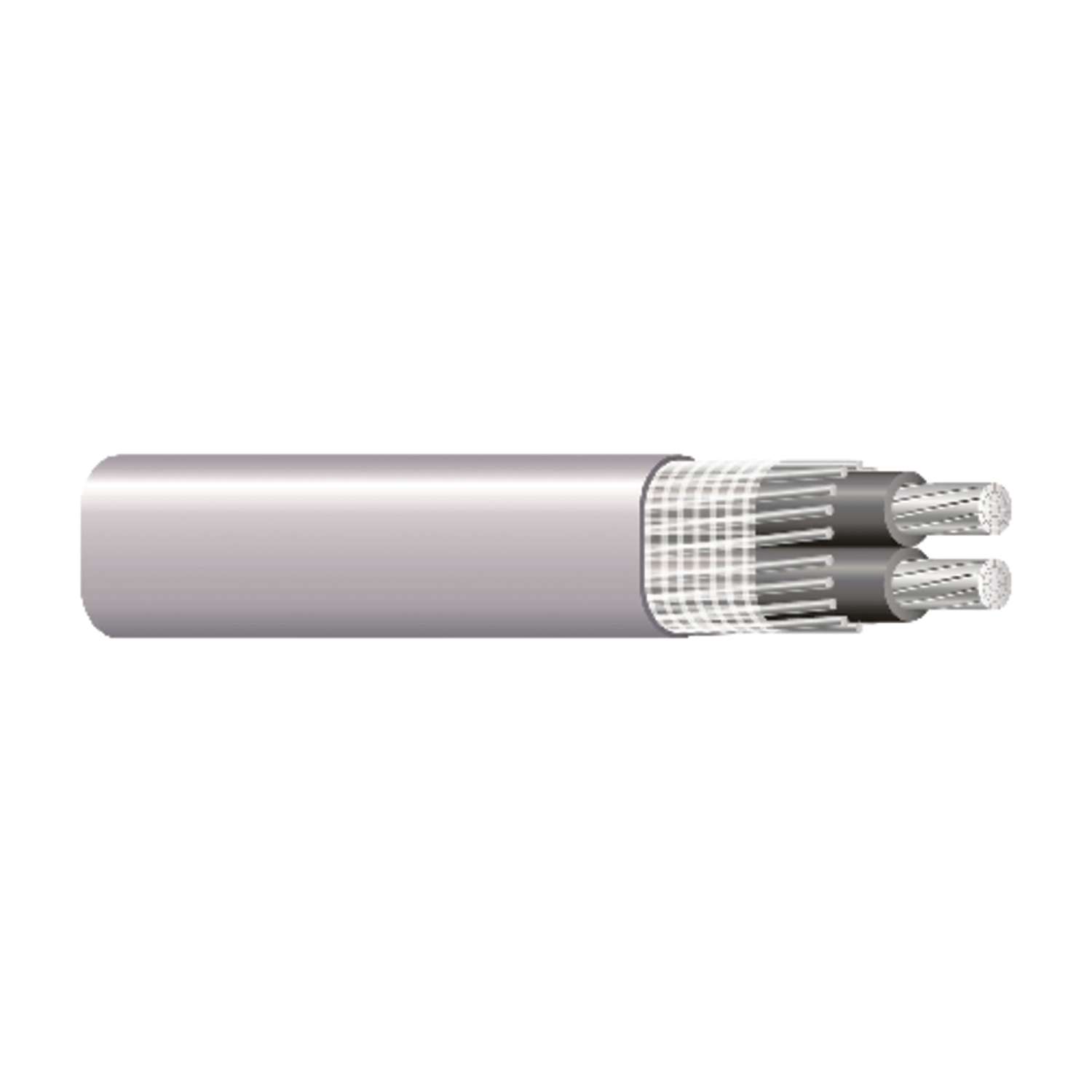

Southwire Type SE, service entrance cable is used to convey power from the service drop to the meter base and from the meter base to the distribution panelboard however, it may be used in all applications where Type SE cable is permitted. SE may be used in wet or dry above-ground locations at temperatures not to exceed 90°C. The voltage rating is 600 volts.
  • UL standard 44 for XHHW-2
  • ASTM- B-800 and B-836
  • Federal specification A-A-59544
  • National electrical code, NFPA 70, 2011 edition

Specifications

  • Brand Name: Southwire
  • Product Type: Cable
  • Amp Rating: 200 ampere
  • Cable or Wire Type: Service Entrance
  • Conductor Gauge: 4 Gauge
  • Color: GRAY
  • Direct Burial: Yes
  • Flame Retardant: Yes
  • Ground Wire Gauge: 4 Gauge
  • Insulation Material: PVC
  • Jacket Material: Aluminum
  • Number of Conductors: 2
  • Brand Name: Southwire
  • Stranded or Solid: Stranded
  • Temperature Rating: 90 degree Fahrenheit
  • UL Listed: Yes
  • Voltage Rating: 600 volt
  • Wet Location Use: Yes

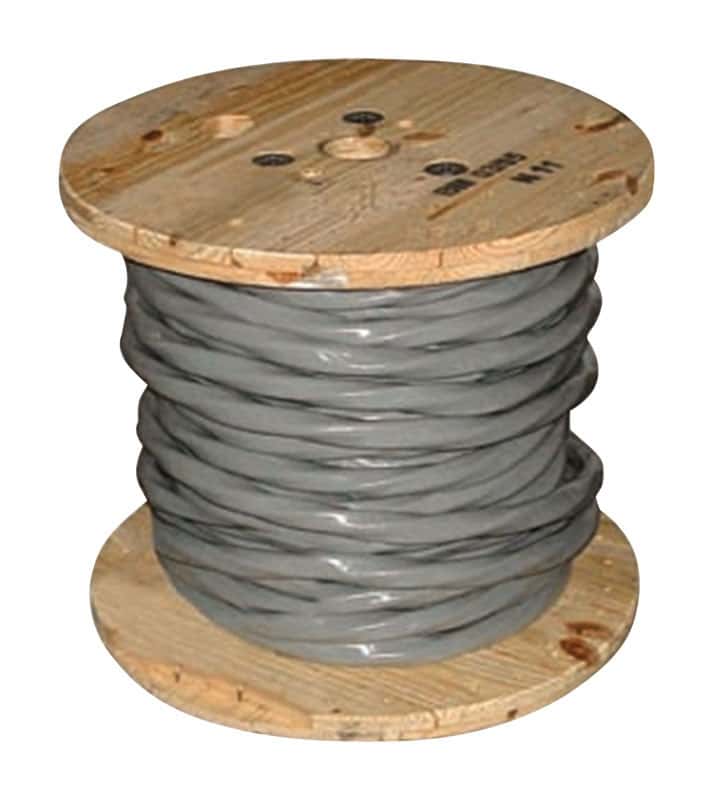

  • Wire Length: 100 foot
  • Indoor or Outdoor: Outdoor
  • Gauge/Conductors: 4/0-4/0-4/0
  • Sunlight/UV Resistant: Yes
