Product Overview

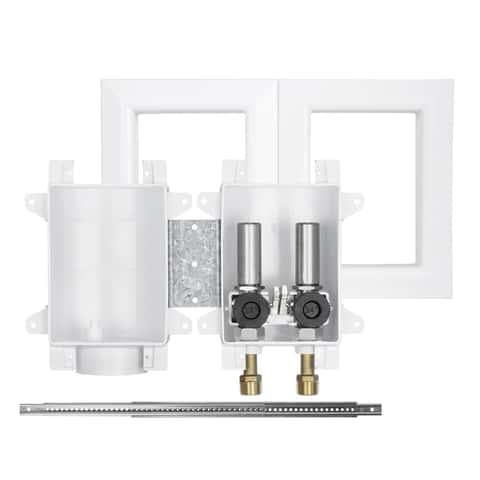

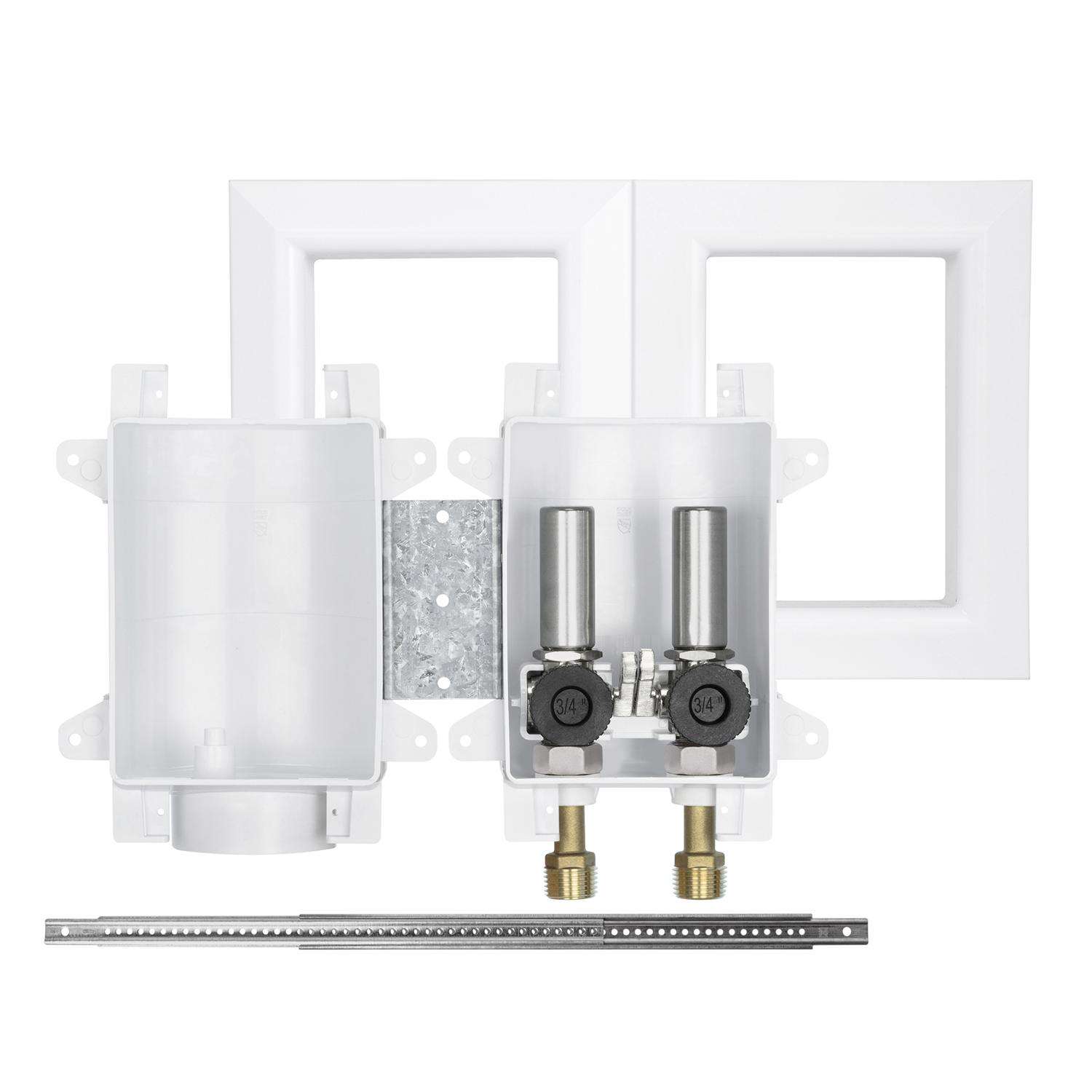

OxBox Washing Machine Universal Outlet Box System with 1/2" MIP/female sweat connection, lead free valves and water hammer arrestors. The OxBox utilizes a patented two-box design and box clip so the installer, designer or specifying engineer can have the most ease of installation, layout flexibility and strength of install available with any outlet box system. Just flip & clip the boxes into the desired layout for the quickest, most secure and quality installation possible. OxBox replaces all left and right drain commodity box options as well as all top mounted supply options. The OxBox eliminates redundant inventory and eliminates frame confusion by replacing all other commodity box product.
  • Valve shank: brass 1, 2 or CPVC with 304SS grip ring, brass nut, silicone seal
  • Arrester body: 304SS barrel with brass1 body and Arrester piston is made of polypropylene with EPDM o-rings
  • Boxes mount securely to stud or over studs
  • Separates supply and drainage systems into two stud bays
  • Durable ABS stands up to job site abuse
  • Drain knockout is easy to remove with pliers
  • Supply inlet 1/2 inch nom. 2 inch O.C and 3/4 inch male hose thread outlet connections
  • Drain connection 2 inch schedule 40 hub
  • Knockout for secondary drainage funnel
  • NSF-372 compliant1, IAPMO listed box and valves, arresters meet ASSE 1010, valves meet ASME A112.18.1

Specifications

  • Brand Name: Sioux Chief
  • Sub Brand: OxBox
  • Product Type: Outlet Box with Hammer Arrestor
  • Appliance Type: Washing Machine
  • Case Material: ABS
  • Color: WHITE
  • Depth: 3.25 inch
  • Inlet Pipe Material: Copper
  • Height: 7-1/4 inch
  • Packaging Type: Bagged
  • Brand Name: Sioux Chief
  • Valve Inlet Diameter: 1/2 inch
  • Valve Outlet Diameter: 3/4 inch
  • Width: 11-1/2 inch
  • Sub Brand: OxBox
