Product Overview

QuickFitting HVAC push-to-connect refrigerant fittings connect copper and coated aluminum line sets, HVAC/R units, and unitary indoor coils in residential and commercial applications. No flaring, brazing, swaging or special tools are needed, simply push the fitting onto the pipe to easily connect refrigerant lines in seconds. The patented design with double O-ring and grip ring seal prevents leaks caused by galling, vibration, pulsation and extreme temperature changes. Save time and money with QuickFitting HVAC push-to-connect refrigerant fittings, the optimal choice for HVACR professionals.
  • Connect refrigerant lines in seconds, saving time and money
  • Provides a quicker and safer connection of HVAC/R systems than traditional methods

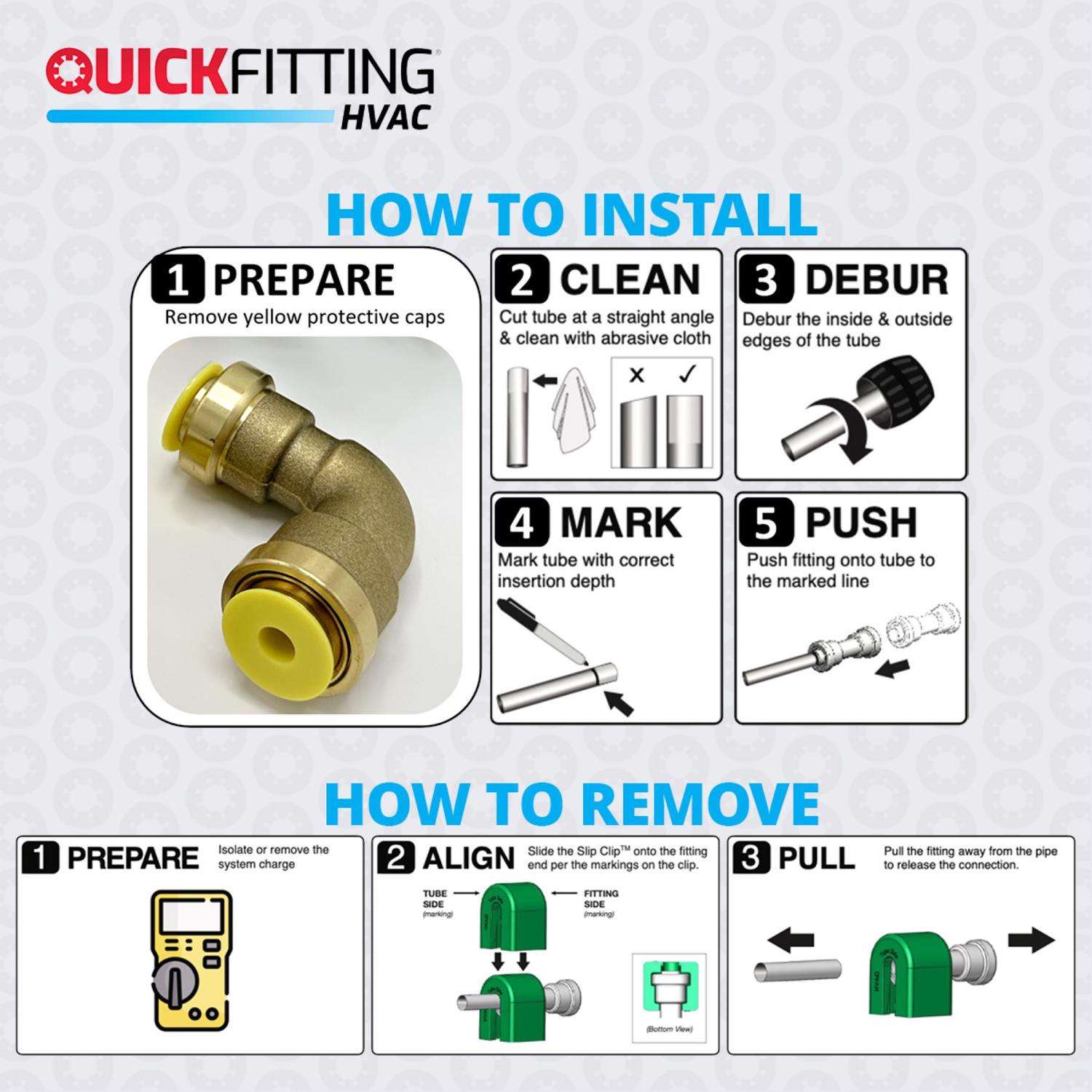

  • No brazing, flaring, swaging, flames or special tools needed to install, simply push the fitting onto the pipe
  • Vibration, corrosion and UV resistant with a fittings can be adjusted at the time on installation if needed

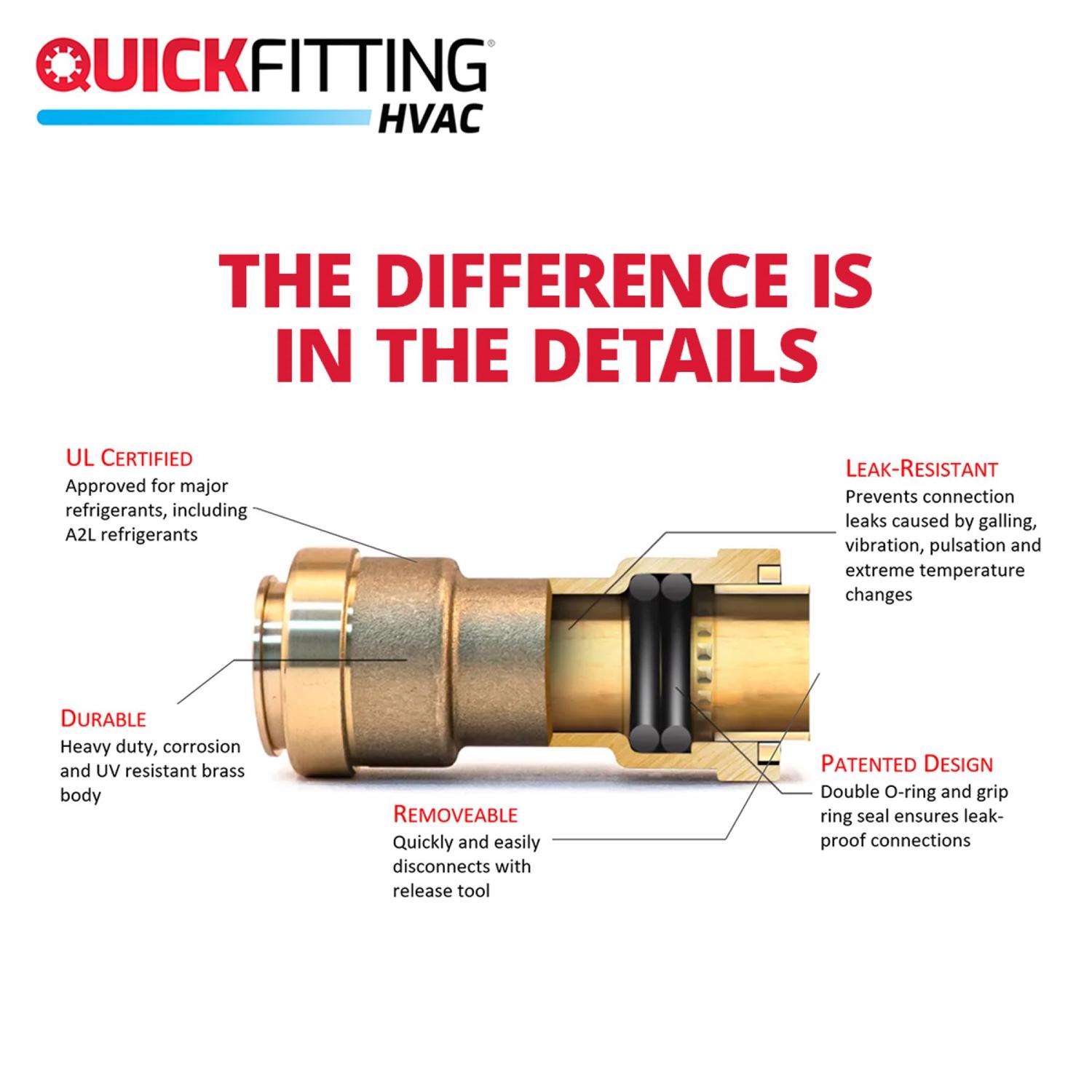

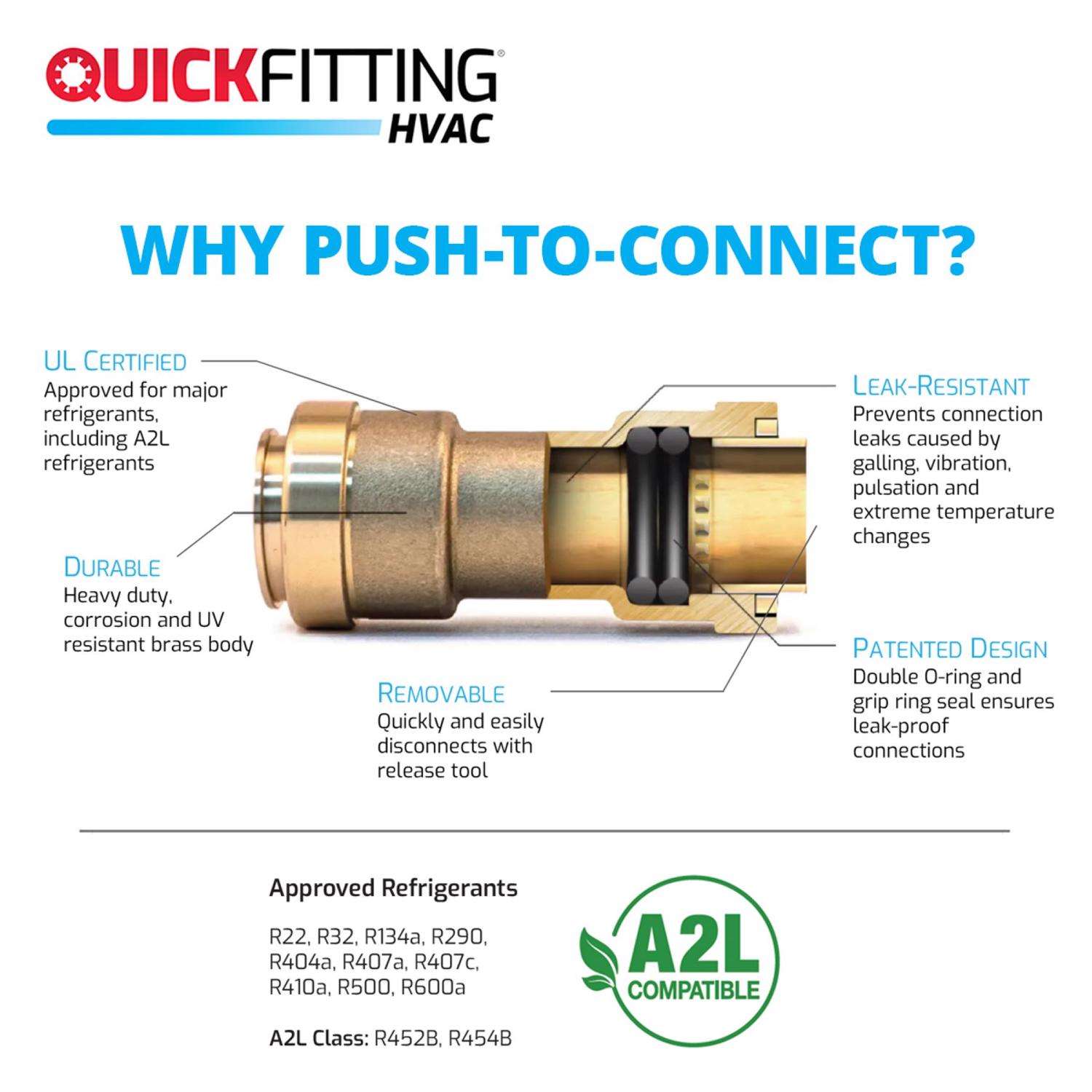

  • Patented design with double O-ring and grip ring seal
  • Prevents leaks caused by vibration, galling, pulsation and extreme temperature changes
  • Heavy duty, impact resistant brass body
  • Single use fitting that can be removed with slip clip release tool
  • Yellow caps protect fitting from debris

Specifications

  • Brand Name: QuickFitting

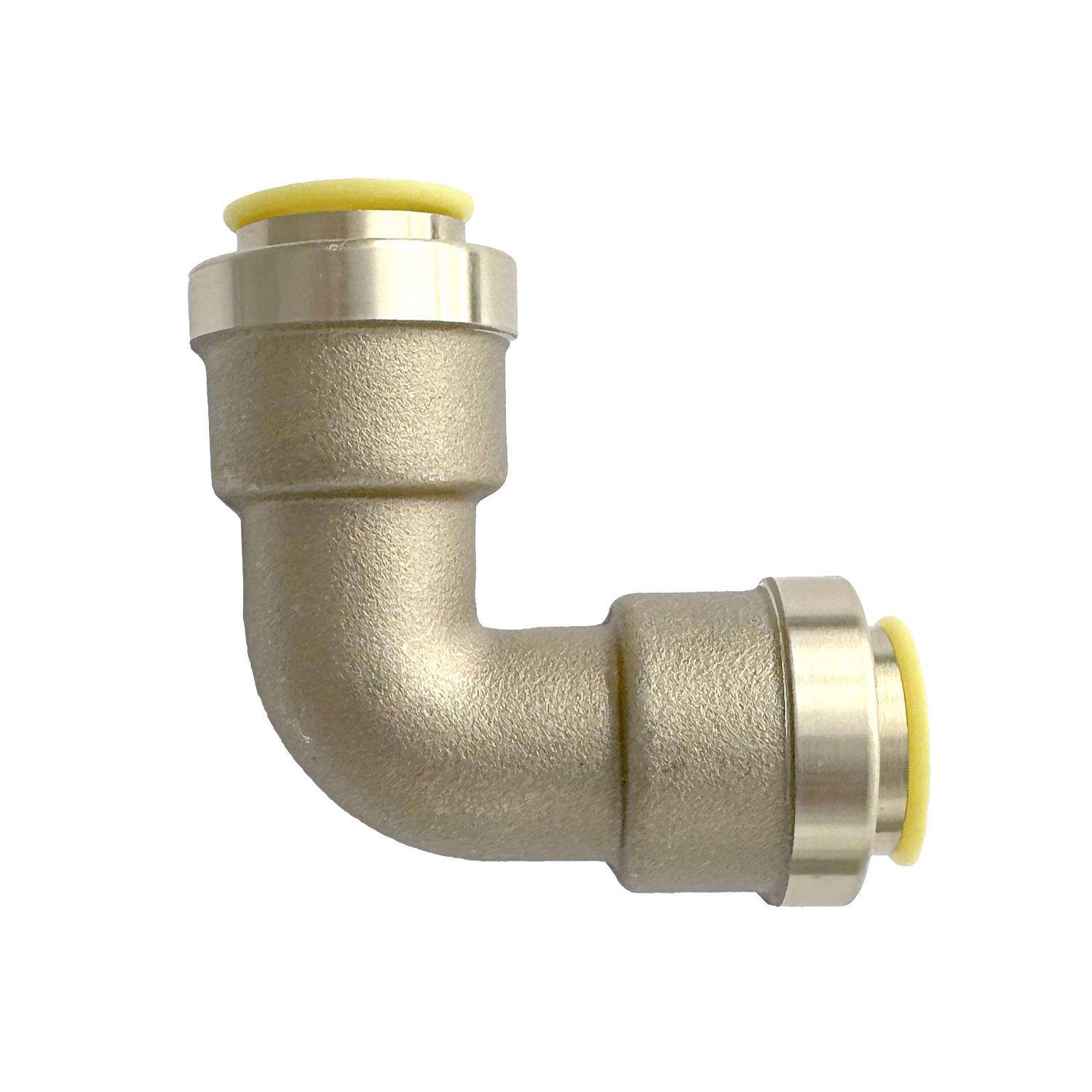

  • Product Type: 90 Degree Elbow
  • ANSI Certified: No
  • Average Lead Content: Lead Free

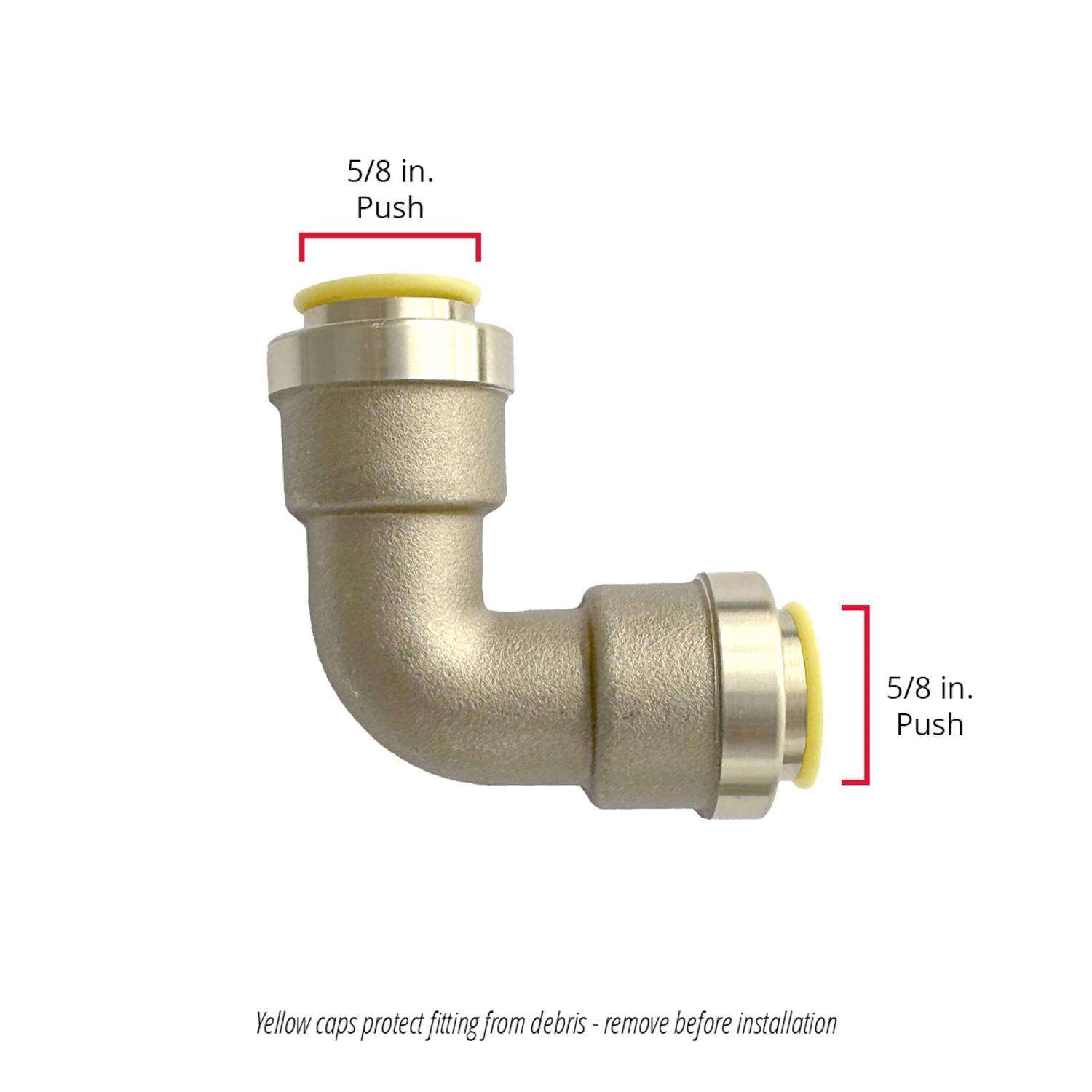

  • End 1 Diameter: 5/8 inch
  • End 1 Type: PTC
  • IAPMO Certified: Yes
  • Maximum Pressure: 870 pound per square inch
  • Maximum Temperature: 250 degree Fahrenheit
  • Material: Brass
  • Push to Connect: Yes
  • Brand Name: QuickFitting
  • Click here to see the Safety Data Sheets for this product.
