Product Overview

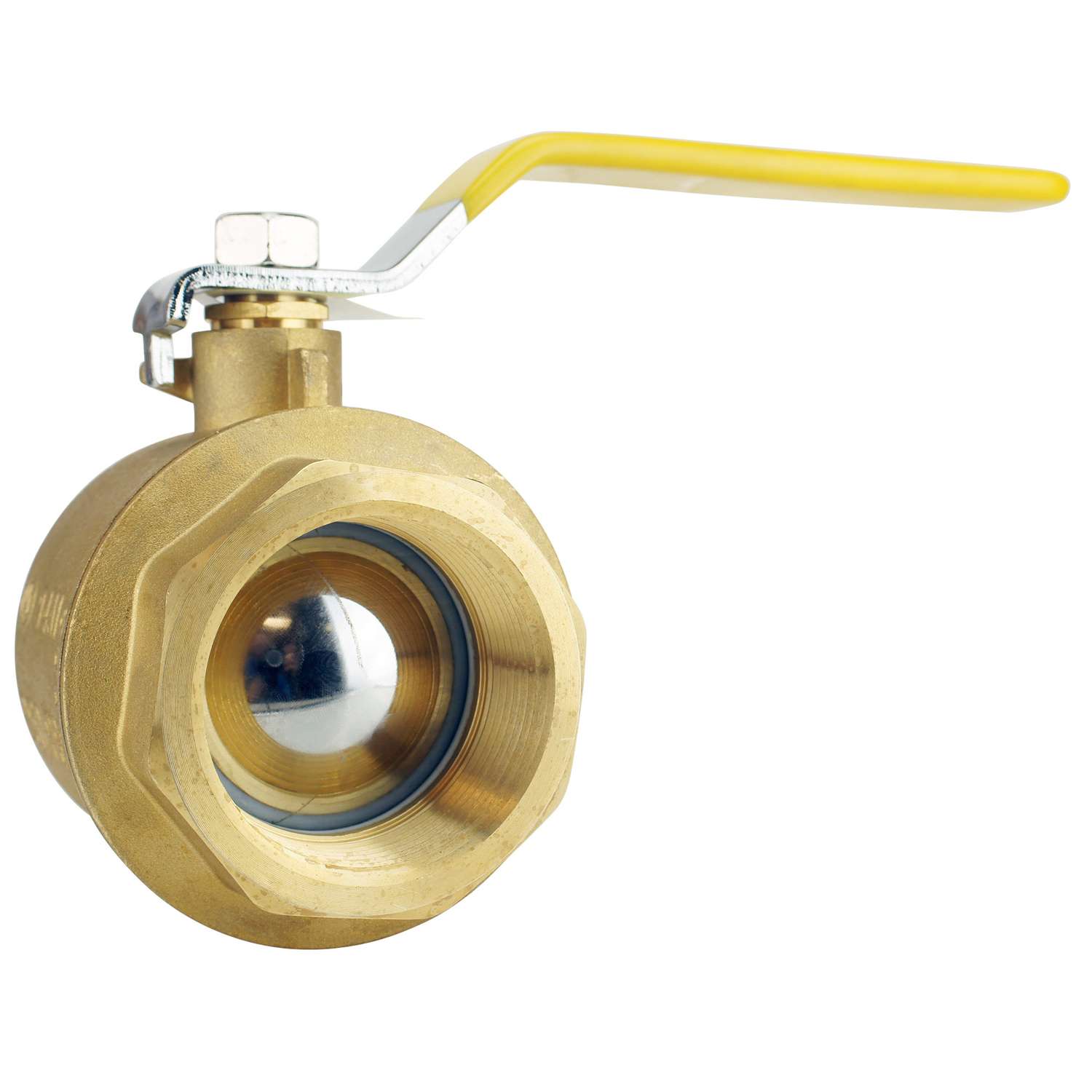

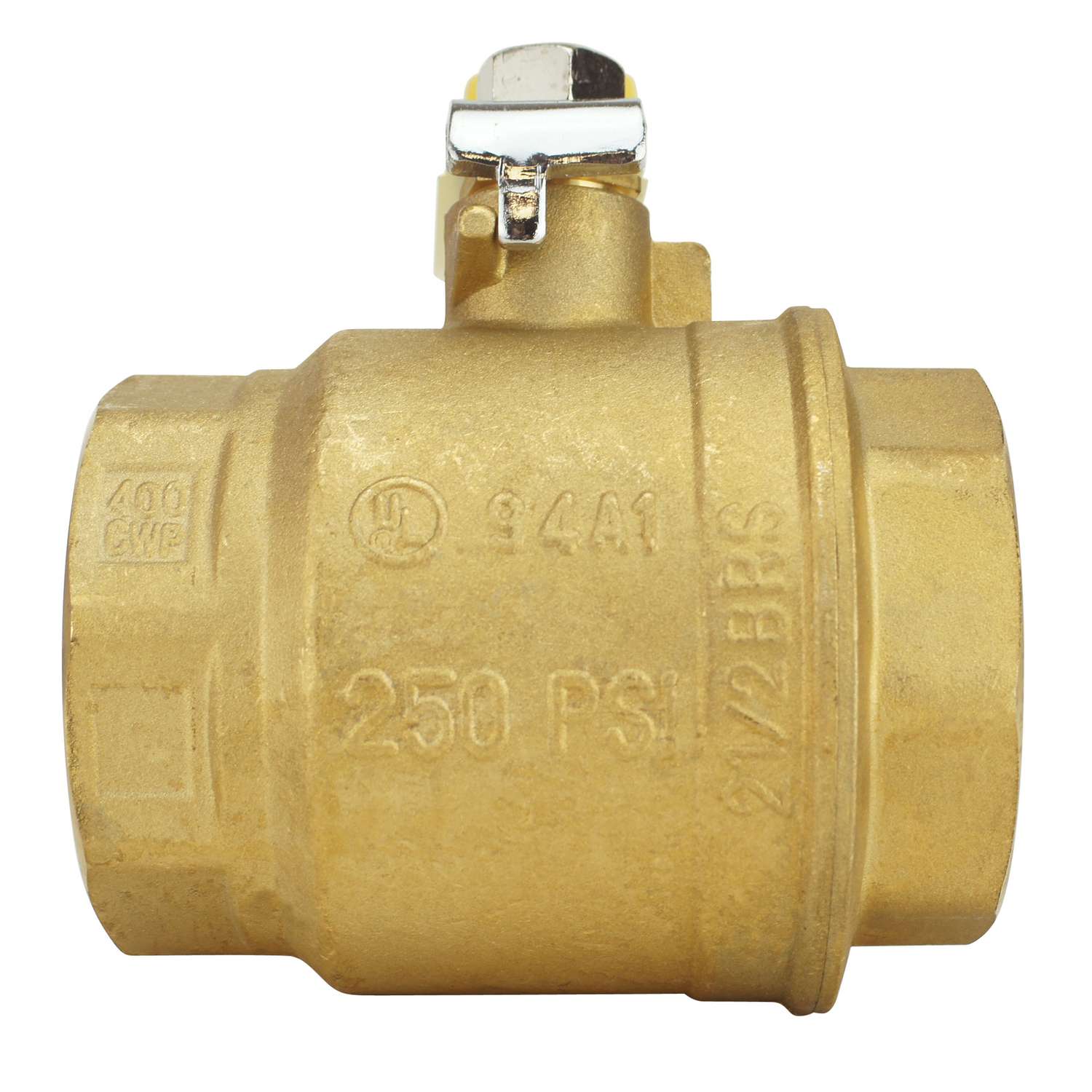

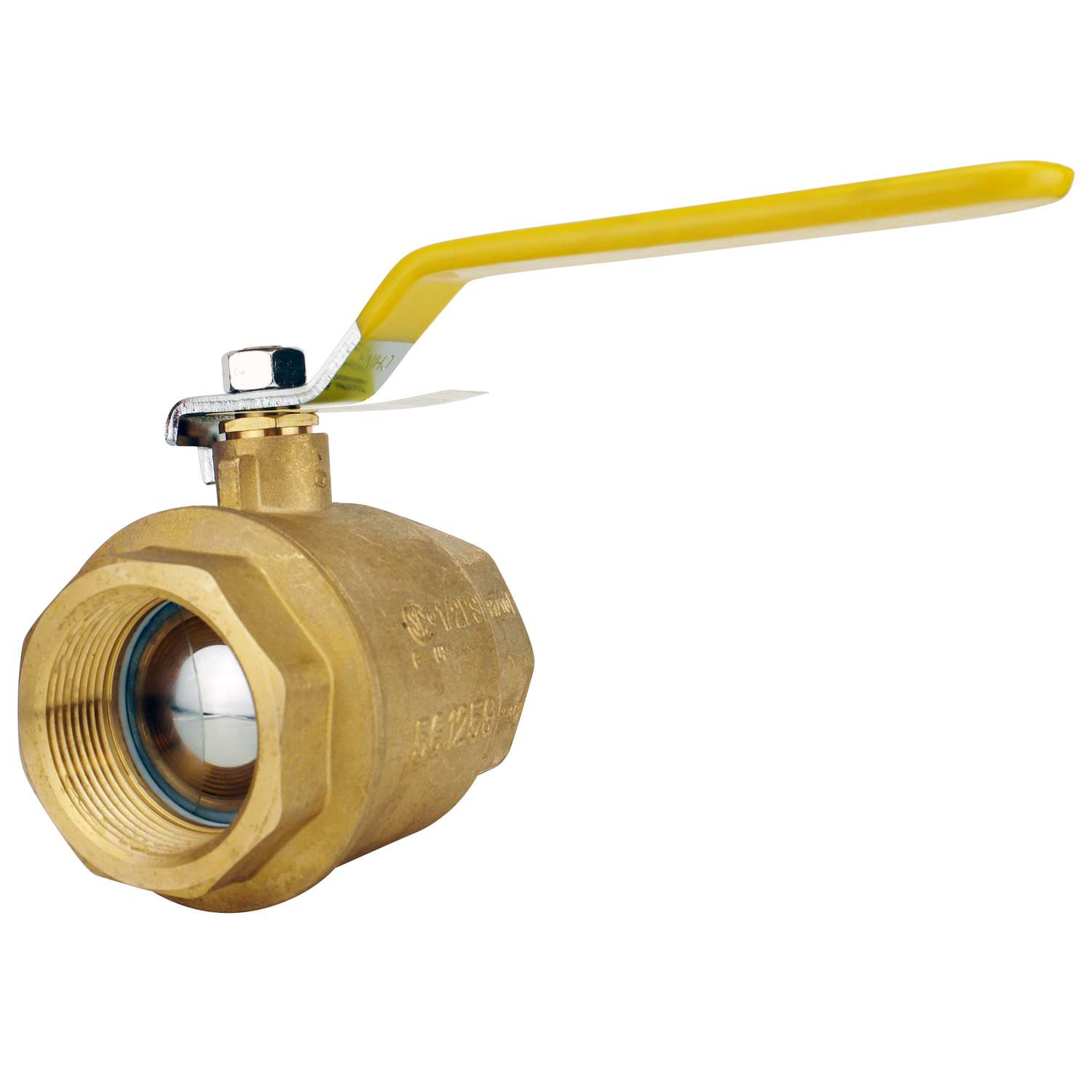

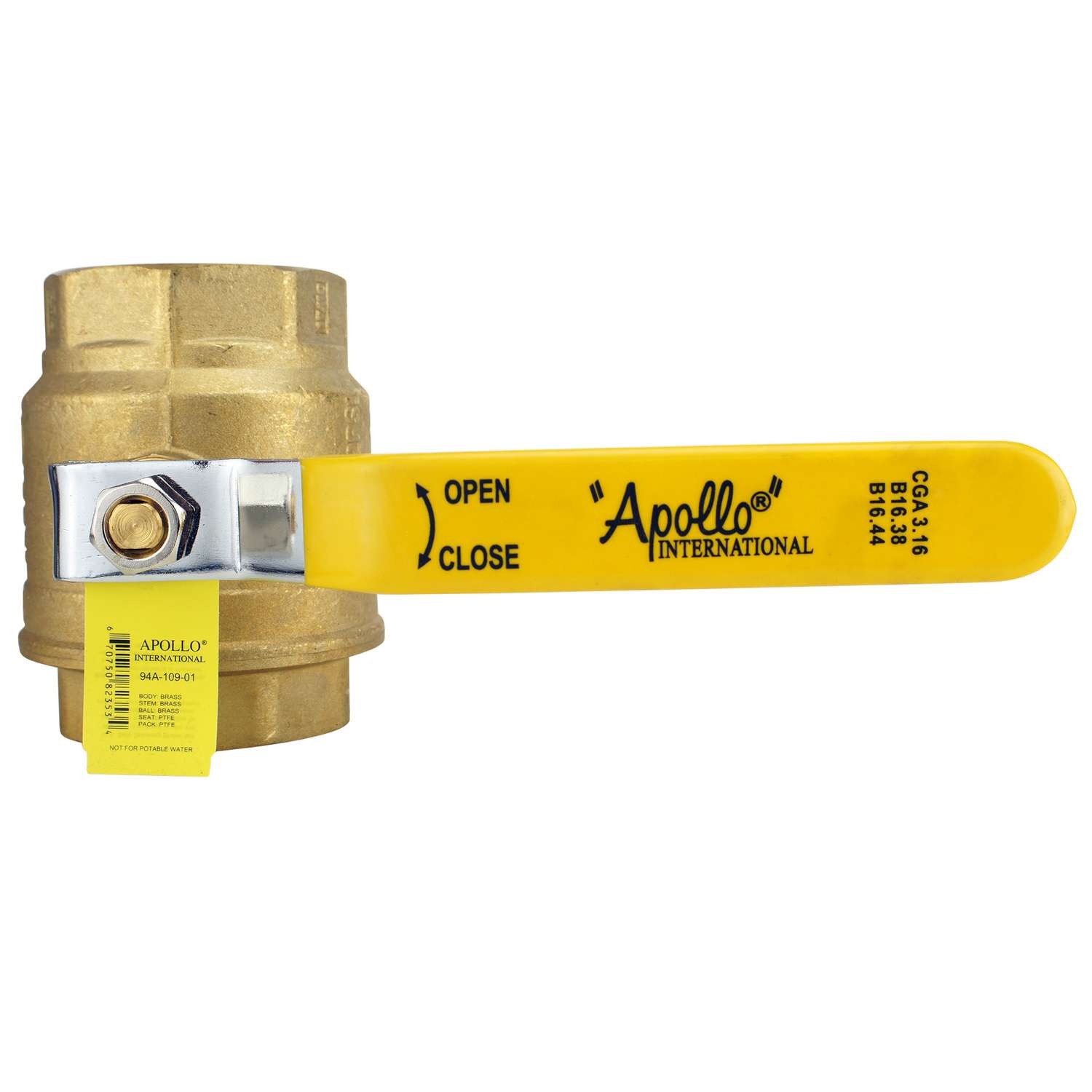

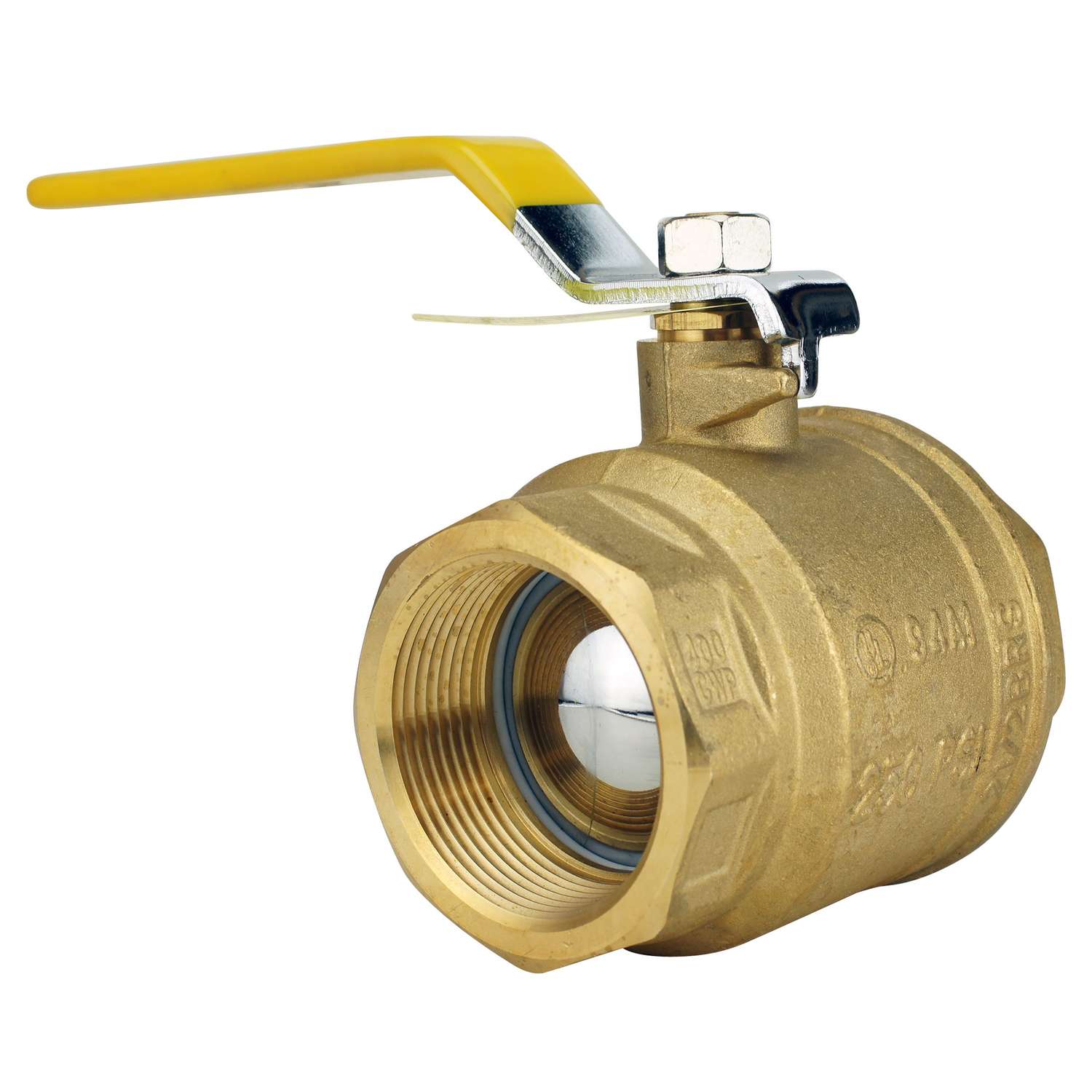

The 94A Series Ball Valve by Apollo Valves is a forged brass ball valve that combines reliable operation with the utmost economy. The 94A Series is ideal for gas, fuels, fire protection, general plumbing and HVAC applications. Featuring quarter-turn lever handle flow control, the 94A Series ball valve is a versatile and reliable ball valve.
  • Solid chrome plated ball that helps the fluid flow smoothly at a constant velocity
  • 100% tested in the US to ensure years of reliable use
  • Blow out proof stem design for safety
  • Quarter-turn lever handle design ensure proper flow control at all times
  • NPT threaded ball valve that meets MSS-SP 110
  • Solder end ball valve that meets MSS-SP 110
  • Stem seal O-ring for extra packing
  • Adjustable stem packing nut
  • Recommended to solder in the fully open position to allow the heat to escape
  • Female pipe thread connections for ease of installation in any application

Specifications

  • Brand Name: Apollo
  • Sub Brand: 94A Series
  • Product Type: Ball Valve
  • Application: Water/Oil/Gas
  • Connection Type: FNPT
  • Compatibility: Multi-Purpose
  • Application: Water/Oil/Gas
  • Finish: Chrome Plated
  • Handle Type: Quarter-Turn Lever
  • Inlet Diameter: 2-1/2 inch
  • Maximum Pressure: 600 pound per square inch
  • Maximum Temperature: 400 degree Fahrenheit
  • Material: Brass
  • Outlet Diameter: 2-1/2 inch
  • Brand Name: Apollo
  • Sub Brand: 94A Series
  • Port Style: Full Port
  • Valve Construction: 2-Piece Body
  • Low-Lead: No
  • Click here to see the Safety Data Sheets for this product.
