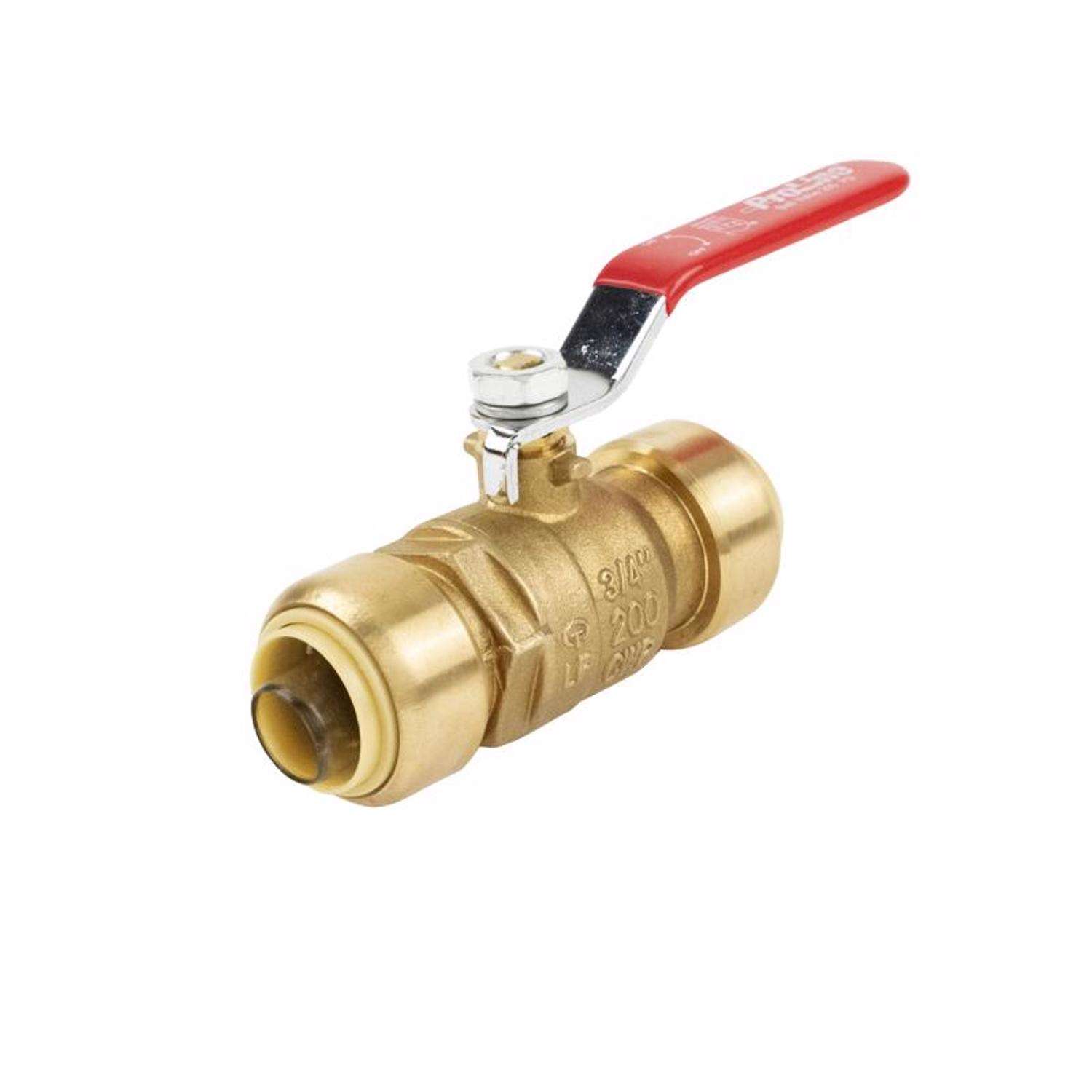

Product Overview

The Ball Valve is our lighter ball valve line offering for light commercial and residential applications. Constructed of forged brass, this valve is designed to work with oil, gas and water operations up to 200 PSI. This valve is designed with a full port allowing for maximum flow rate and features a lever handle allowing for easy on/off operation. The packing gland feature tightens the internal components when the stem leaks, ensuring a more extended valve operational life. 316 stainless steel grip ring for strength and corrosion resistance.
  • Full port for maximum flow rate
  • Packing gland - blowout proof stem design allows users to stop leaks at the valve stem
  • PTFE seat & packing
  • Rust-resistant heavy-duty handle with vinyl grip
  • Integrated brass seal gland increases durability & work life
  • Rubber o-rings ensure a water-tight seal
  • Chrome-plated brass ball & stem

Specifications

  • Brand Name: B&K
  • Sub Brand: Proline
  • Product Type: Ball Valve
  • Connection Type: Push Fit
  • Compatibility: Copper, CPVC and PEX
  • Finish: c
  • Handle Type: Quarter-Turn Lever
  • Inlet Diameter: 1 inch
  • Maximum Pressure: 200 pound per square inch
  • Maximum Temperature: 200 degree Fahrenheit
  • Material: Brass
  • Outlet Diameter: 1 inch
  • Brand Name: B&K
  • Sub Brand: ProLIne
  • Port Style: Full Port
  • Low-Lead: Yes
  • Click here to see the Safety Data Sheets for this product.
