Product Overview

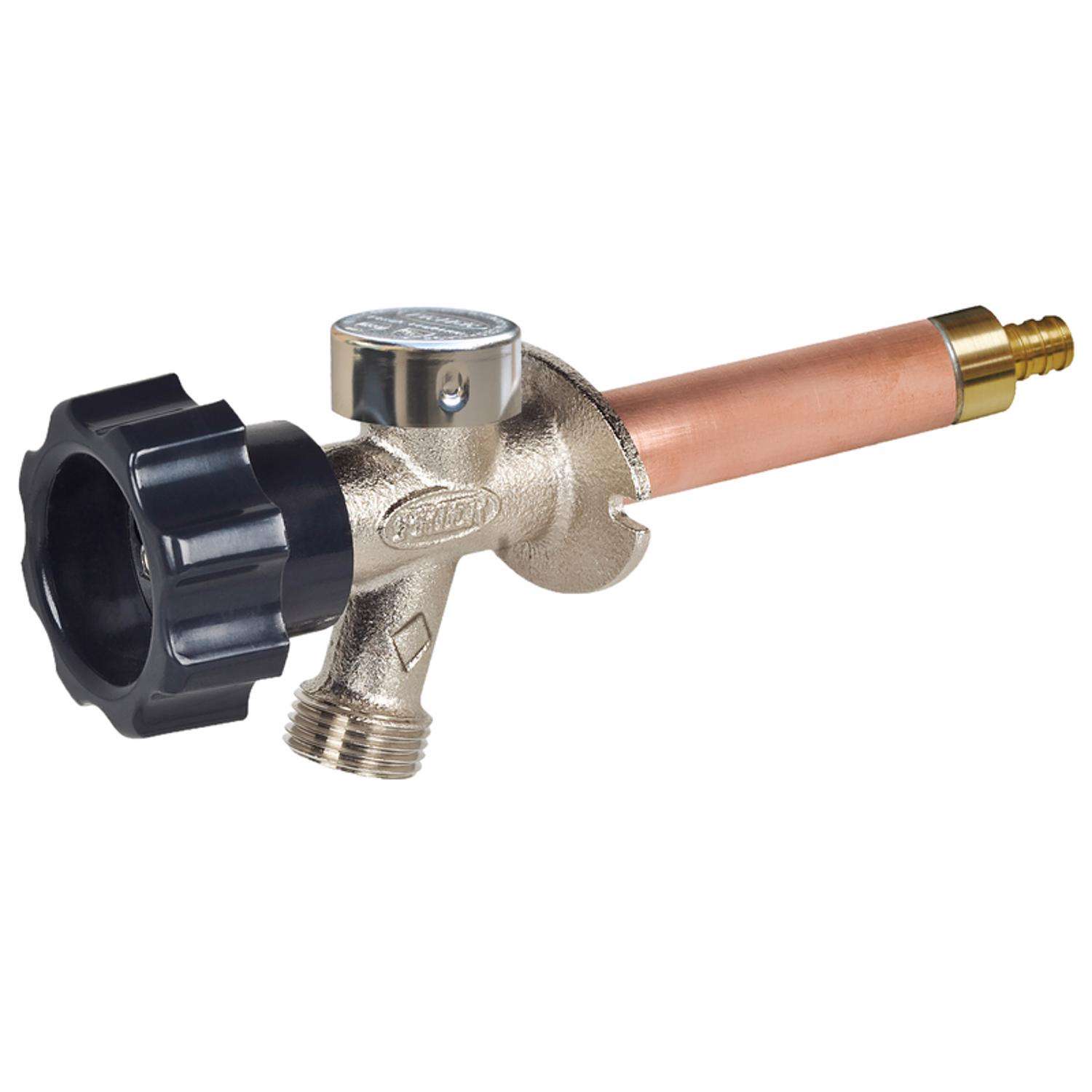

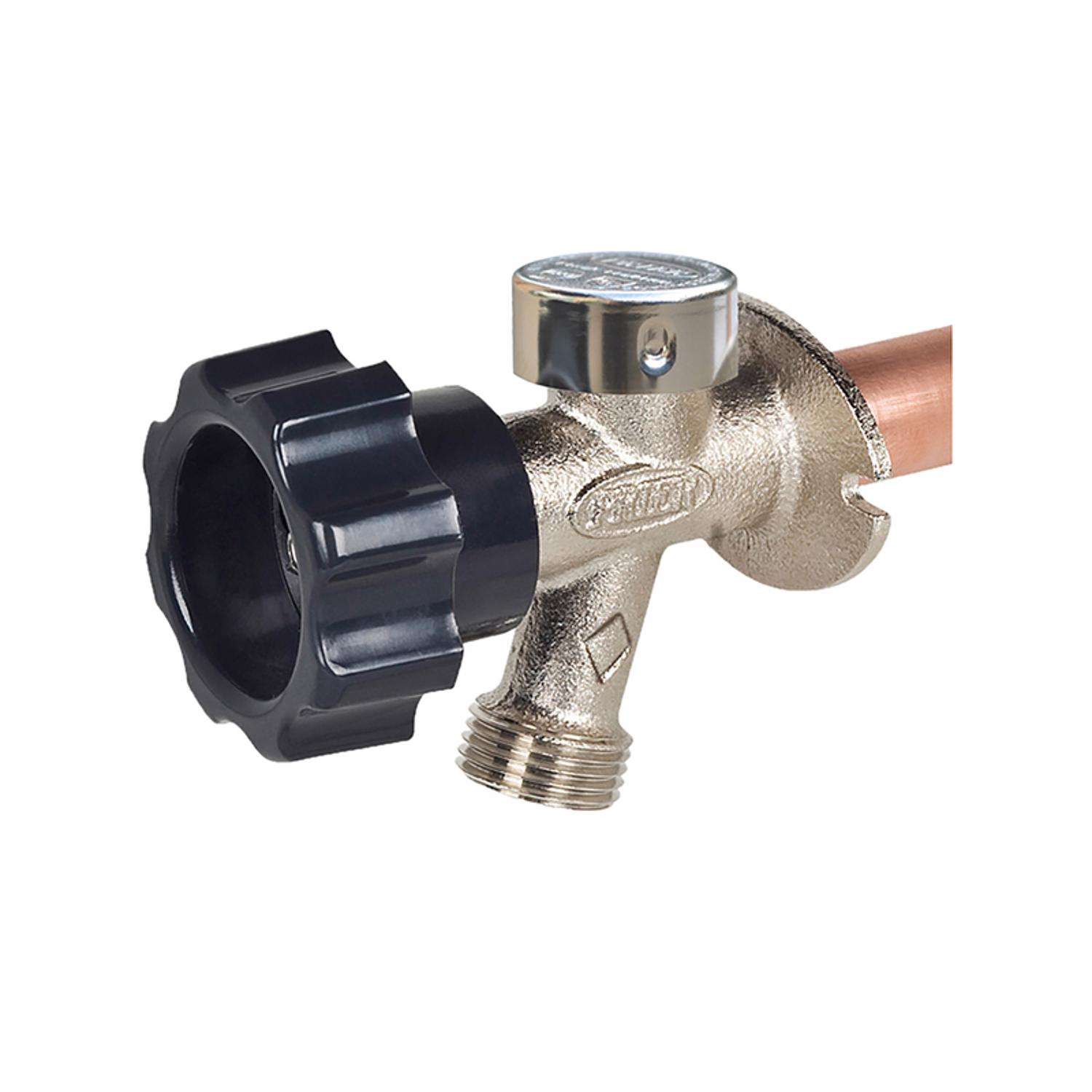

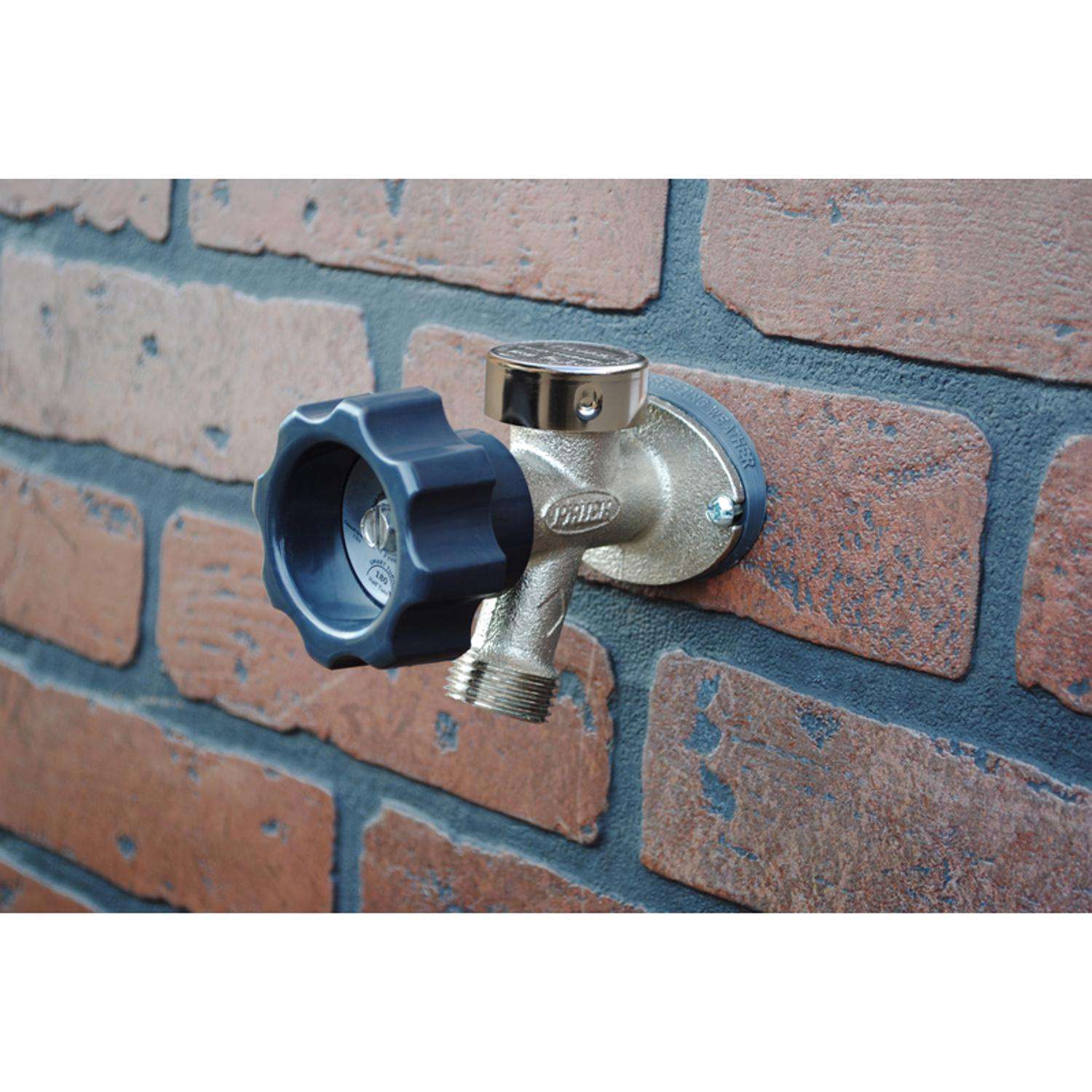

Prier 490-12 freezeless wall hydrant features a 1/2 inch Crimp PEX inlet with a 12 inch length insertion. The 490 anti-siphon model is part of the 400 Diamond Series family of hydrants which provide a year round source of water to areas of structures that are subject to freezing temperatures. The hydrant valve is connected to the supply piping in the heated portion of the structure, eliminating the possibility of freezing. The Prier 400 Series features a half-turn design for years of easy operation. The Prier 400 Diamond Series has all the characteristics of the proven 300 Series Wall Hydrant, with the added protection of a vacuum breaker and backflow preventor. It is ASSE 1019 and C-UPC approved and available from stock in lengths from 4 inch to 14 inch.
  • Spout aligning mark for easy installation & field repairable with no special tools required.
  • Easy half-turn handle operation.
  • Integral cast backflange with wide screw holes to easily secure mounting screws.
  • Aluminum vacuum breaker cap with increased durability.
  • Solid brass body and seat; solid stem design with EPDM backflow preventor.
  • Satin nickel plated body maintains attractive finish.
  • Easy grip polycarbonate operating handle with stainless steel handle screw.
  • Durable ACME threads secure stem at seat end & AFG teflon with graphite packing for easy maintenance.

Specifications

  • Brand Name: Prier
  • Product Type: Freezeless Wall Faucet
  • End 1 Size: 1/2 inch
  • End 1 Type: Crimp PEX
  • End 2 Type: PEX
  • Finish: Satin
  • Flow Rate: 8 Gallons per Minute
  • Frost-Proof: Yes
  • Handle Type: Round
  • Length: 12 inch
  • Maximum Pressure: 125 pound per square inch
  • Maximum Temperature: 125 degree Fahrenheit
  • Material: Brass
  • Packaging Type: BOXED
  • Brand Name: Prier
  • Turn Type: Half Turn
  • Anti-Siphon: Yes
