Product Overview

2" Non-CFC foam insulation; 49 gallon first hour rating Uniform Energy Factor (UED); Recovery 21 gallon per hour at 90 degree rise, Diffuser-End pex dip tube; Glass-lined tank premium grade anode rod protects against tank corrosion, Ace RSC available replacement parts: elements Ace 44978, Upper thermostat Ace 44983, Lower thermostat Ace 44981, T&P valve Ace 4008611, NOTE: Dimensions and specifications subject to change without notice in accordance with Reliance Water Heaters policy of continuous product improvement
  • What's Included: Pex-Lined Inlet and Outlet Nipples, Temperature and Pressure (T&P) Relief Valve, Tamper-Resistant Drain Valve, Dual 3800 watt 240-volt Screw-In Style Elements
  • 30 gallon size
  • 39 inch height
  • Dual 3800 watt 240 volt copper sheathed heating element
  • Glass lined tank with anode rod protects against corrosion
  • "Environmentally-Friendly" Non-CFC foam insulation

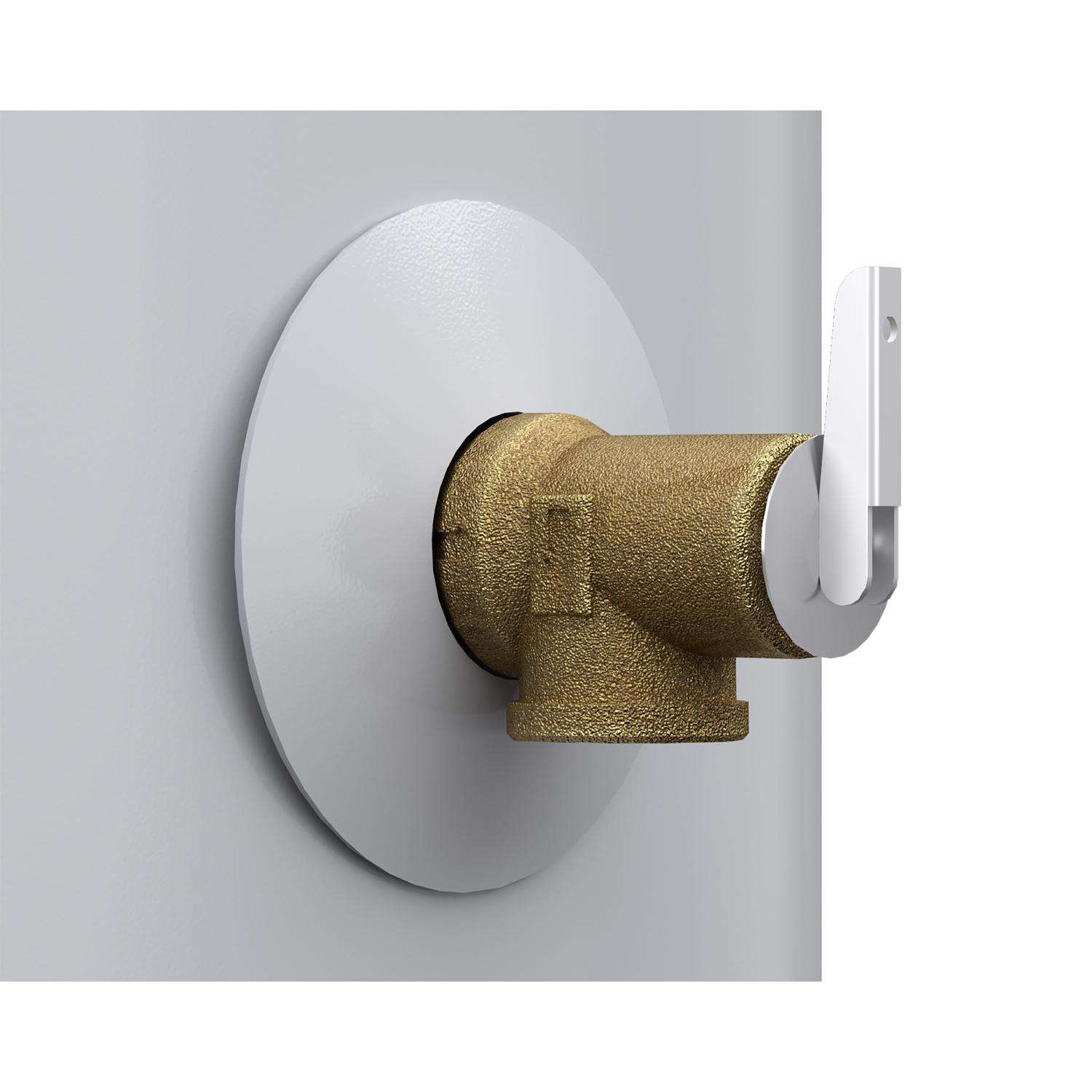

  • Factory-installed temperature and pressure (T and P) relief valve
  • Meets HUD requirements for manufactured housing
  • Shipped from the factory with an insulation blanket
  • Inlet and outlet connections on side for easier installation in mobile homes
  • Uniform Energy Factor (UED) .90, Caution / Note: dimensions printed on outside of box are not same as the heater dimensions

Specifications

  • What's Included: Pex-Lined Inlet and Outlet Nipples, Temperature and Pressure (T&P) Relief Valve, Tamper-Resistant Drain Valve, Dual 3800 watt 240-volt Screw-In Style Elements
  • Brand Name: Reliance
  • Product Type: Water Heater
  • Amps: 15.83 ampere
  • CSA LIsted: Yes
  • Commercial or Residential: Residential
  • Depth: 20 inch
  • Diameter: 20 inch
  • Energy Star Certified: No
  • Height: 39 inch inch
  • Maximum Pressure: 150 pound per square inch
  • Maximum Temperature: 150 degree Fahrenheit
  • Minimum Temperature: 90 degree Fahrenheit
  • Power Source: Electric
  • Brand Name: Reliance
  • Tank Capacity: 30 gallon (US)
  • Temperature Pressure Relief Valve: Yes
  • Volts: 240 volt
  • Warranty: 6 year limited Tank and Parts and 1 year labor
  • Water Connection Size: 3/4 inch
  • Water Connection Location: Side
  • Watts: 3800 watt
  • Width: 20 inch
  • Tankless: No
  • Tank Valve Size: 3/4 inch
  • Click here to see the Safety Data Sheets for this product.
