Product Overview

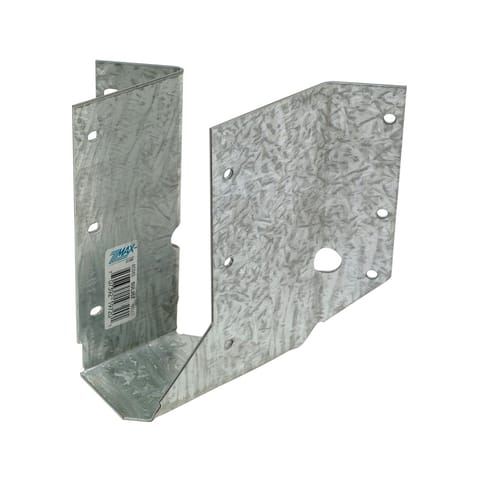

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The SUR/SUL are 45-degree-skewed hangers designed to support solid sawn and engineered wood products used in wood construction. These U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The SUR and SUL hangers are identical except that they are skewed 45-degree to the right (SUR) and the left (SUL), respectively. *
  • SUL = skewed left *
  • Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist *
  • These hangers cannot be modified but will accommodate a 40-degree to 50-degree skewed joist *
  • Available with the acute flange turned in to accommodate end-of-wall installation for solid sawn sizes only (SURC or SULC) *
  • Seat width: 1-9/16 inches *
  • Nominal joist size: 2x6 or 2x8 *

Specifications

  • Brand Name: Simpson Strong-Tie
  • Sub Brand: ZMax
  • Product Type: Joist Hanger
  • Gauge: 16 Gauge
  • Joist Fasteners: 16d
  • Height: 2.56 inch
  • Material: Galvanized Steel
  • Brand Name: Simpson Strong-Tie
  • Width: 4.65 inch
  • Sub Brand: ZMAX
  • Click here to see the Safety Data Sheets for this product.
