Price
$46.99
Pickup


Delivery


From:

add to cart Image
Returns

Free returns on most items within 30 days.

Product Overview

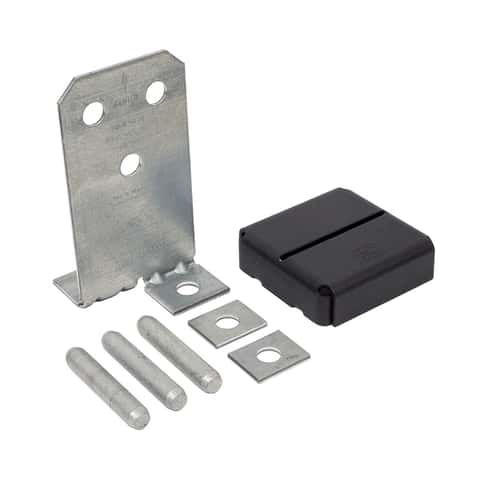

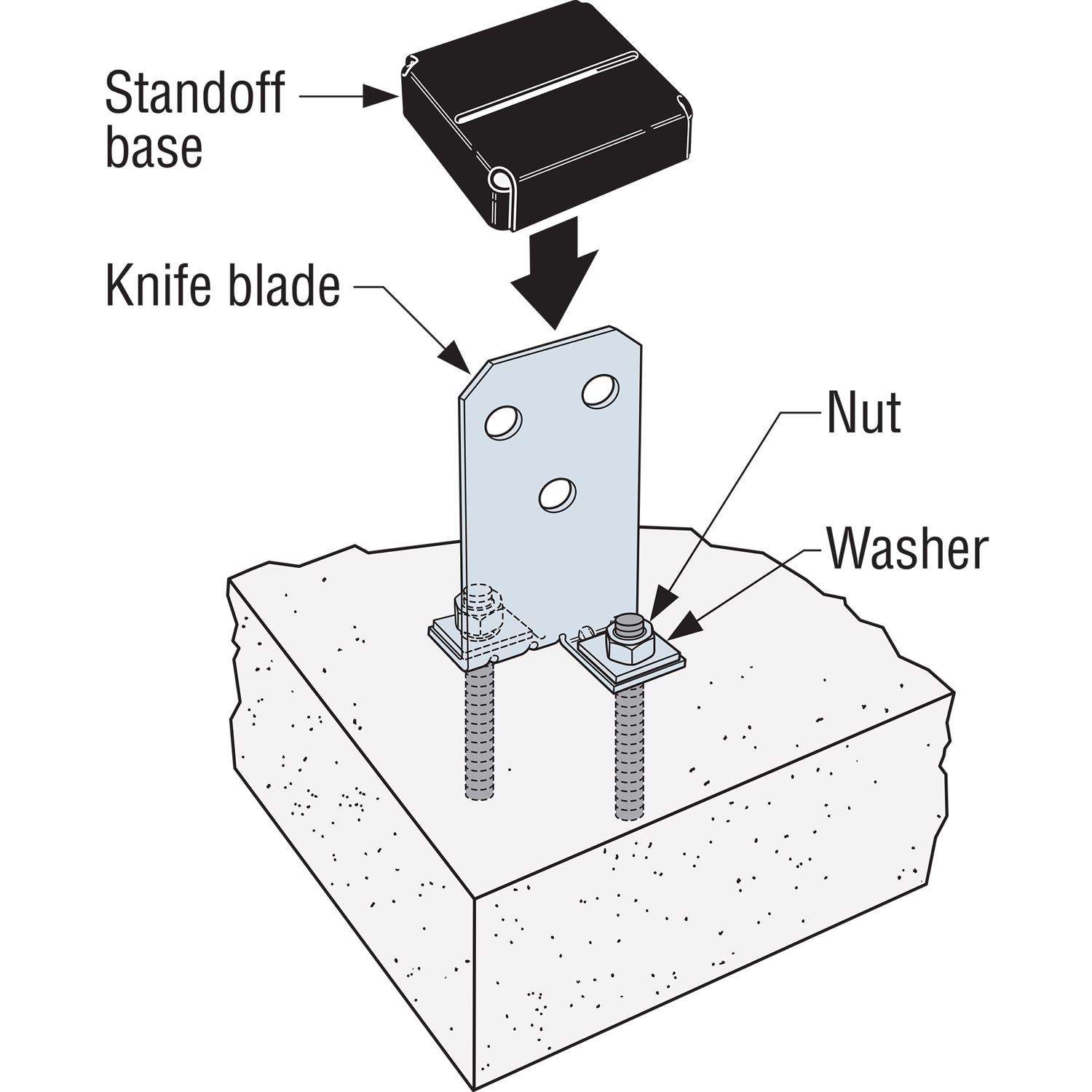

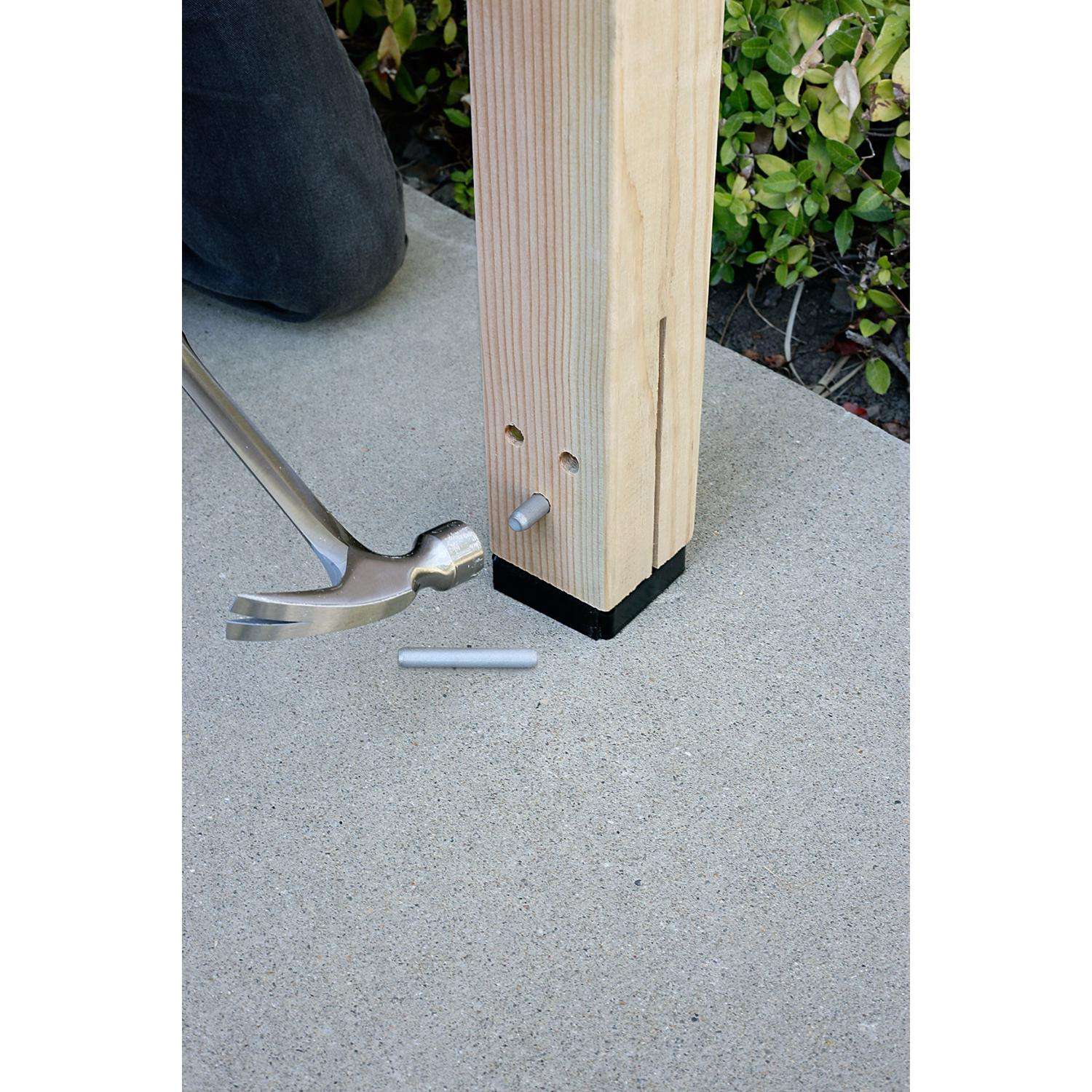

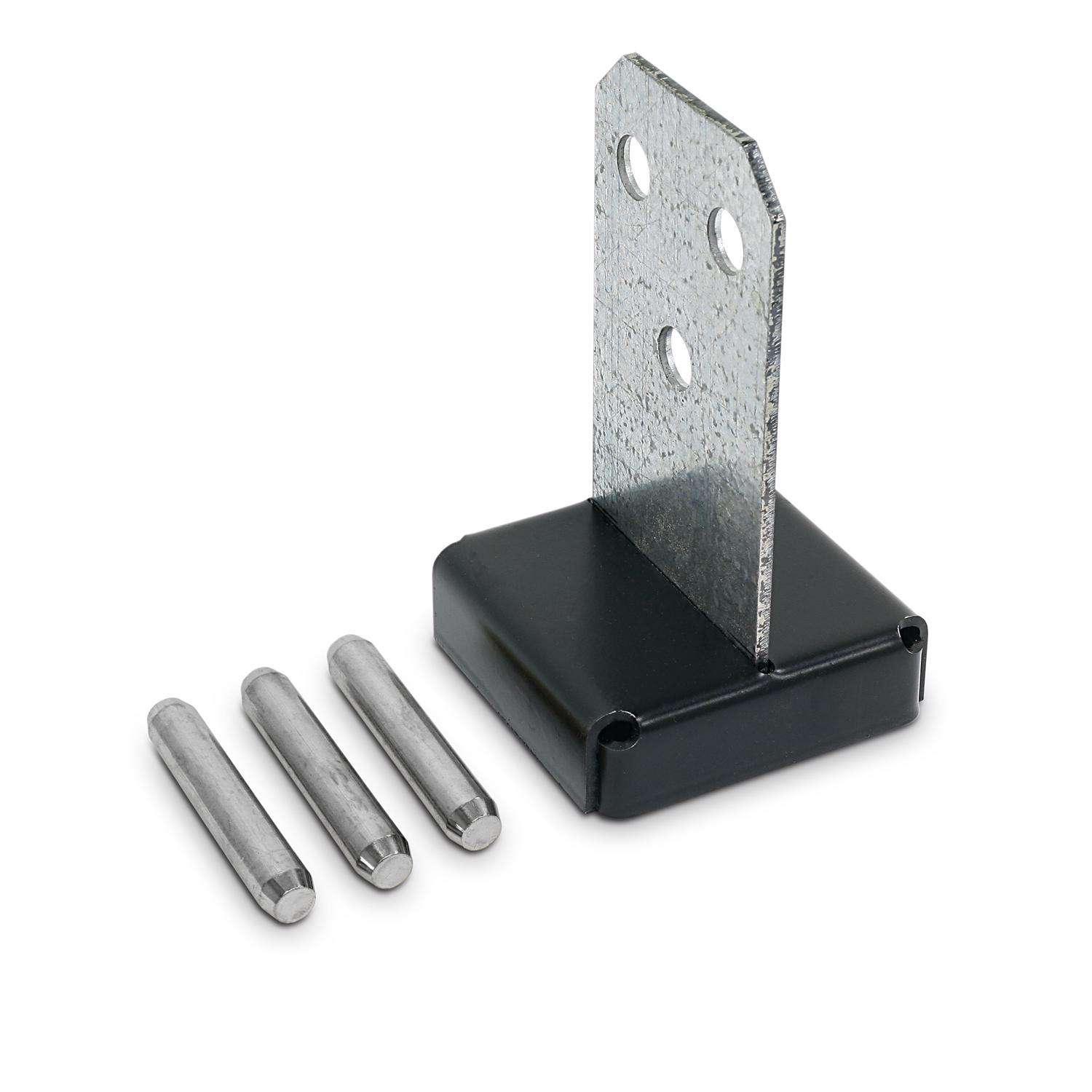

The CPTZ post base incorporates a knife plate with a standoff base. It achieves a clean, concealed look while providing a 1 in. standoff height above concrete. The CPTZ is installed with 1/2 in. diameter galvanized pins (supplied).
  • The 1 in. standoff height is code-required when supporting permanent structures that are exposed to weather or water splash, or in basements *
  • The standoff reduces the potential for decay at post or column ends *
  • The anchorage for the CPTZ can be either cast-in-place or retrofit with adhesive or mechanical anchors *
  • Nominal post size: 4x4 *
  • Base: 12 ga.; knife plate: 10 ga. *
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications *

Specifications

  • Brand Name: Simpson Strong-Tie
  • Sub Brand: ZMax
  • Product Type: Post Base
  • Gauge: 10 Gauge
  • Height: 5.72 inch
  • Material: Steel
  • Brand Name: Simpson Strong-Tie
  • Width: 3.5 inch
  • Sub Brand: ZMAX
  • Click here to see the Safety Data Sheets for this product.
