Product Overview

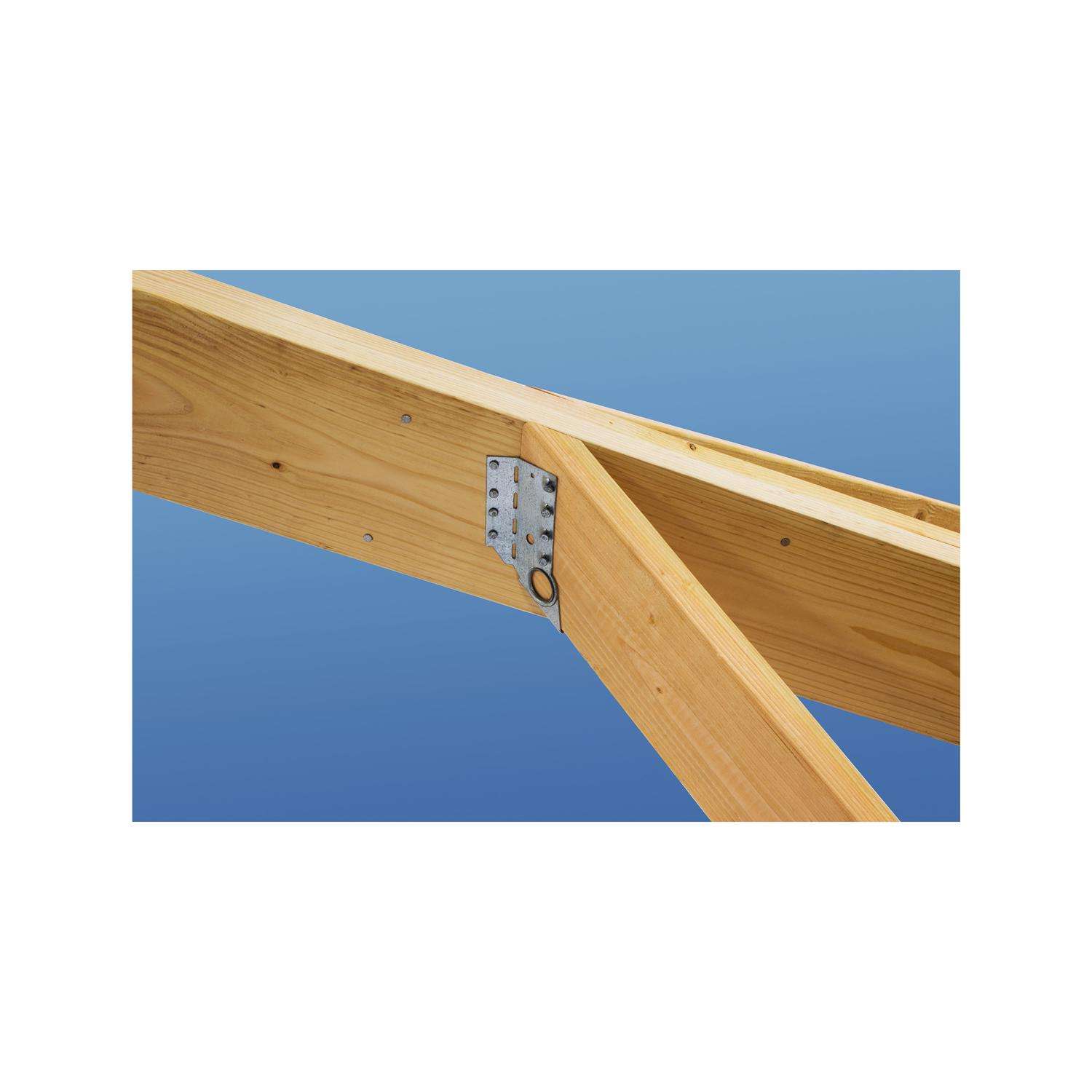

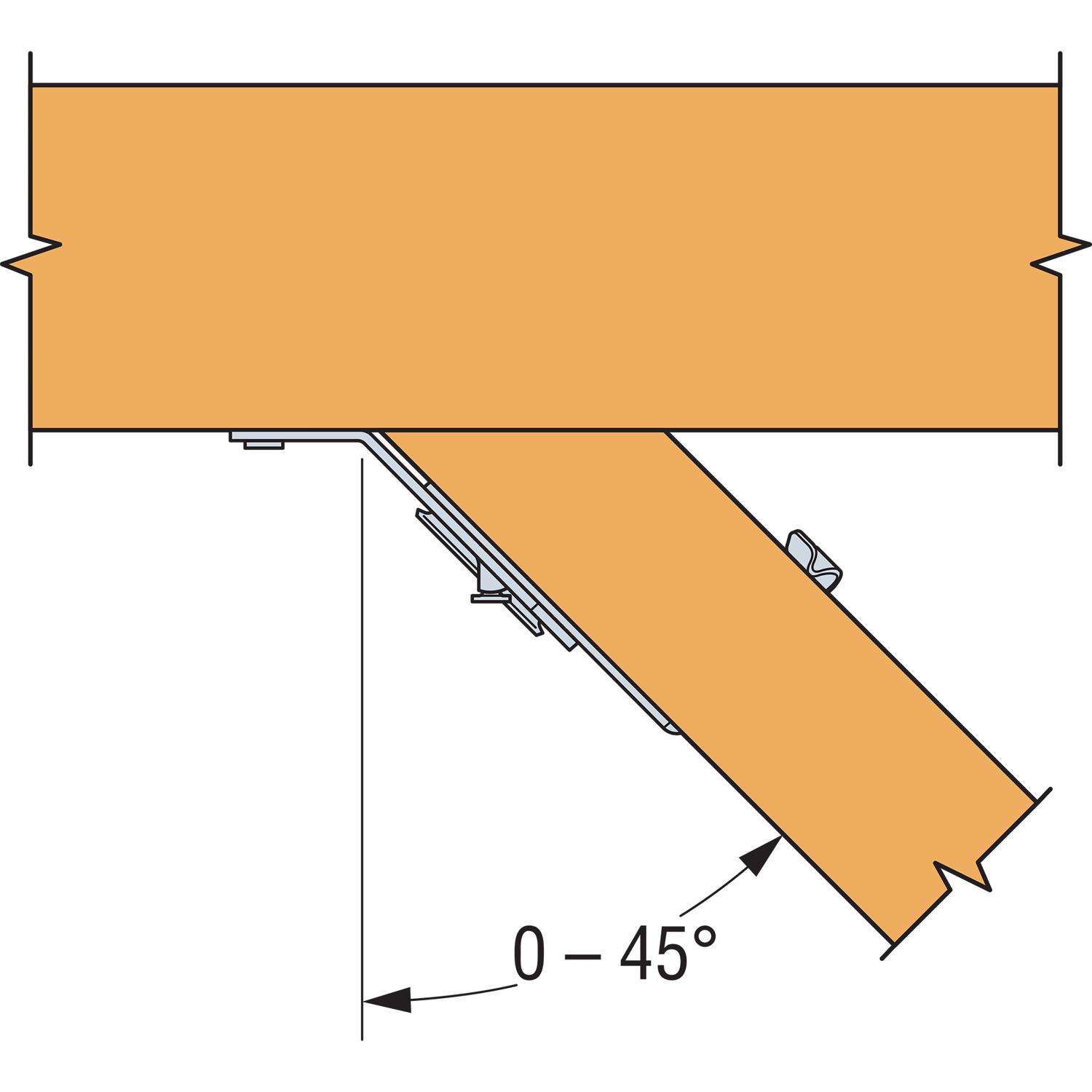

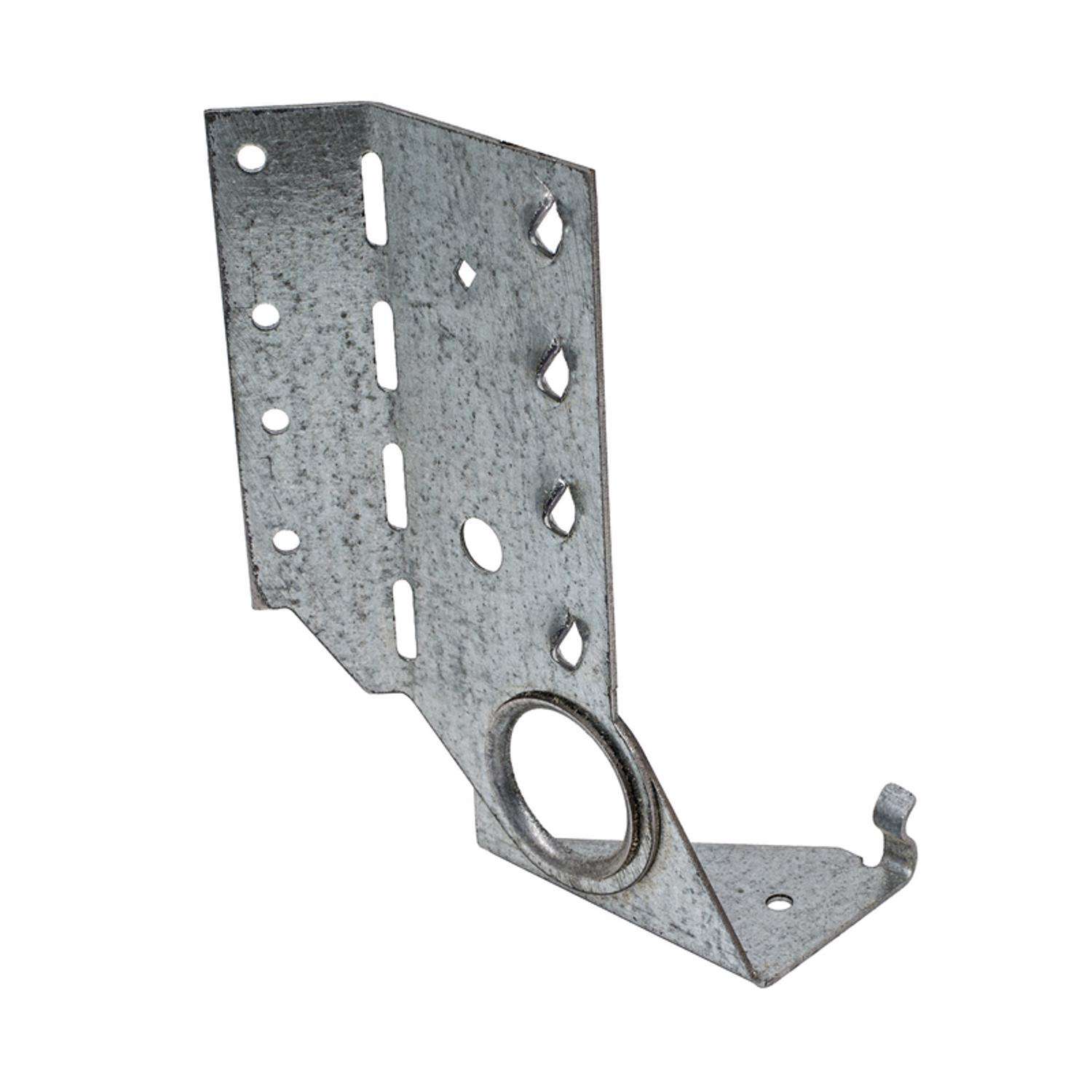

The innovative LSSJ is ideal for connecting jack rafters to hip members. Featuring a one-sided connection point for ease of installation and a versatile, hinged seat, the LSSJ is easily field adjustable to all typical rafter slopes ranging from 0:12 to 12:12. The LSSJs header flange allows for easy skew adjustment, from 0 degree to 45 degree. It ships pre-bent at 45 degree so is ready to place for most typical applications.
  • Hanger installs from one side with all fastener holes easily accessible
  • Can be installed as a retrofit
  • Seat grip makes setting the hanger quick and easy
  • Accommodates roof pitches from 0:12 to 12:12 *
  • Swivel seat adjusts easily and provides more support to joist, allowing for a higher load than fasteners alone *
  • Width: 1-9/16 in. *

Specifications

  • Brand Name: Simpson Strong-Tie
  • Sub Brand: LSSJ Left
  • Product Type: Jack Hanger
  • Gauge: 18 Gauge
  • Height: 4.375 inch
  • Material: Steel
  • Brand Name: Simpson Strong-Tie
  • Width: 1.56 inch
  • Sub Brand: LSSJ Left
