Product Overview

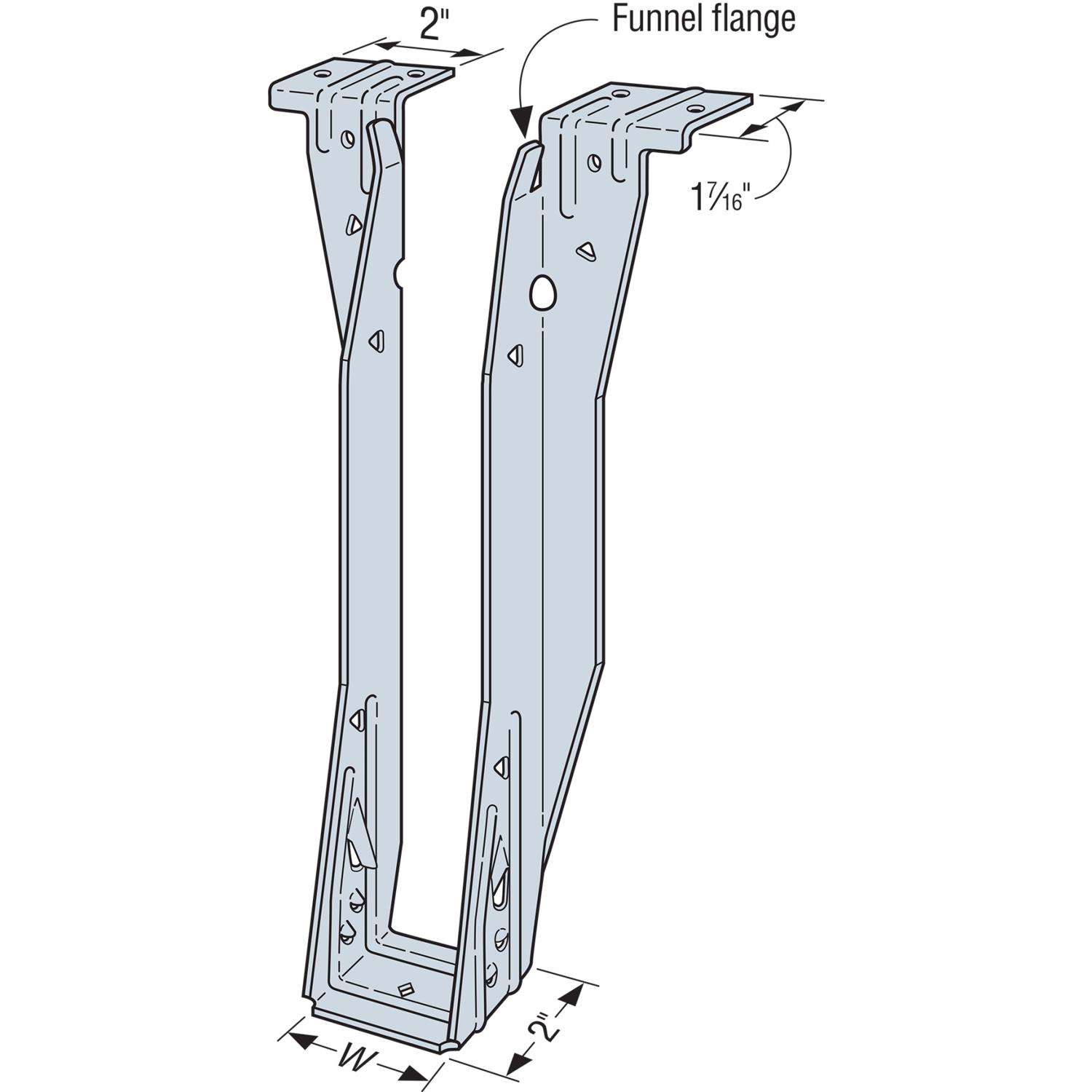

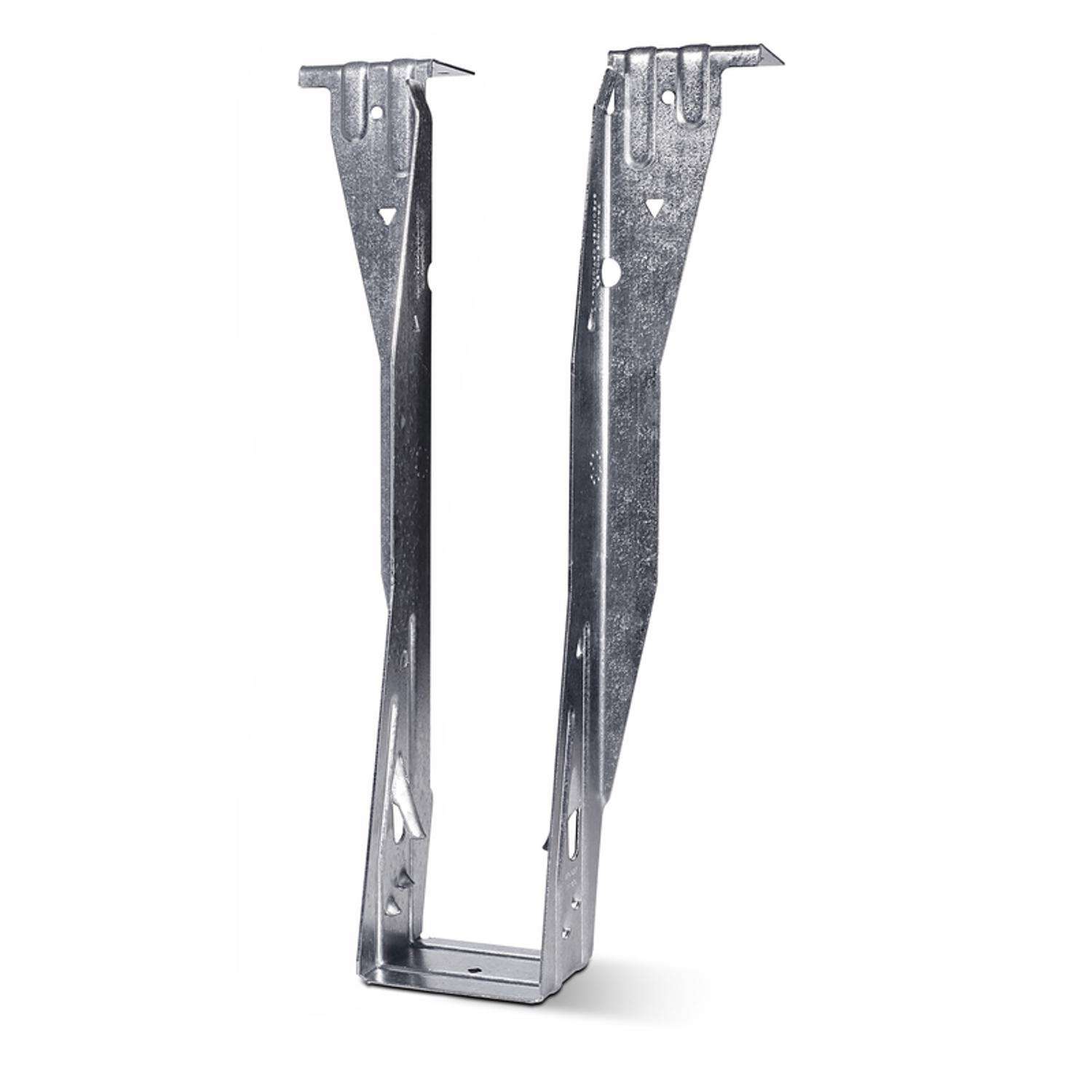

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slope able options. The innovative ITS sets a new standard for engineered wood top-flange hangers. The ITS installs faster and uses fewer nails than any other EWP top-flange hanger. The new Strong-Grip seat and Funnel Flange features allow standard joist installation without requiring joist nails resulting in the lowest installed cost.

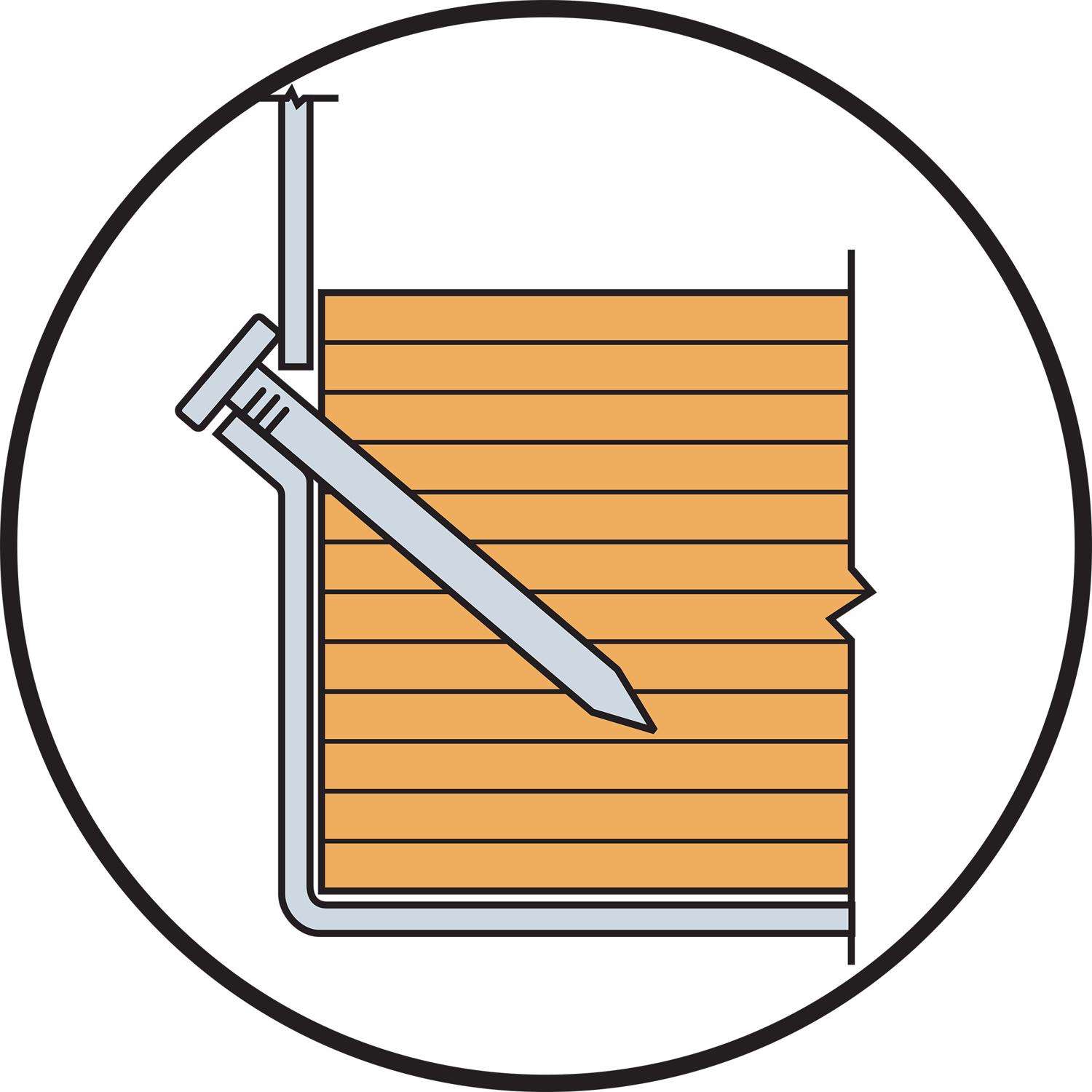

  • The strong-grip seat firmly secures I-joists with flange thickness from 1-1/8 inch to 1-1/2 inch

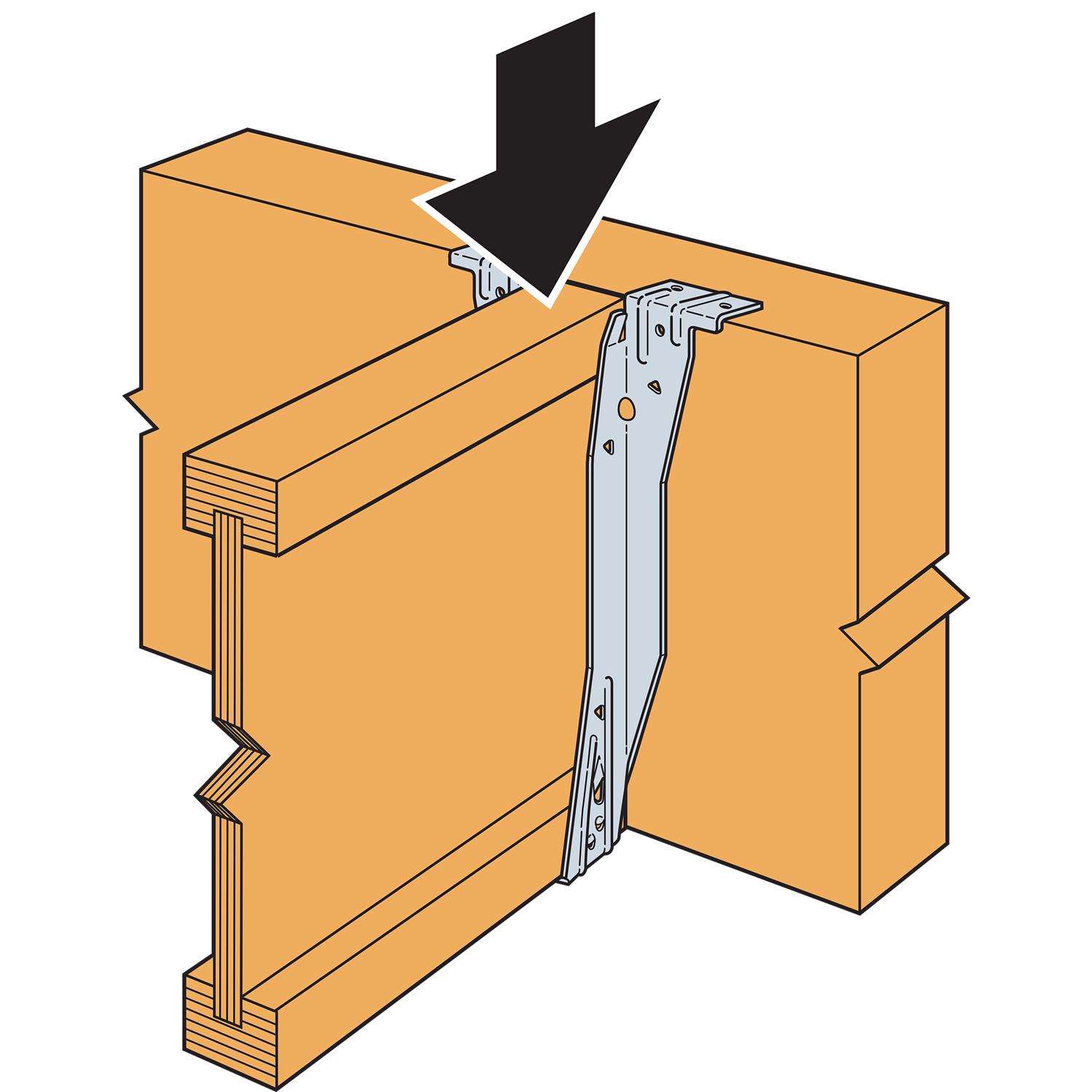

  • No joist nailing required for standard I-joist installation without web stiffeners
  • Seat width: 2-7/16 in. *
  • Height: 11-13/16 in. *
  • Actual joist size: 2-5/16 in. x 11-7/8 in. *
  • Made from 18-gauge steel *

Specifications

  • Brand Name: Simpson Strong-Tie
  • Sub Brand: ITS
  • Product Type: Joist Hanger
  • Gauge: 18 Gauge
  • Height: 11.88 inch
  • Material: Galvanized Steel
  • Brand Name: Simpson Strong-Tie
  • Width: 2.37 inch
  • Sub Brand: ITS
  • Click here to see the Safety Data Sheets for this product.
