Product Overview

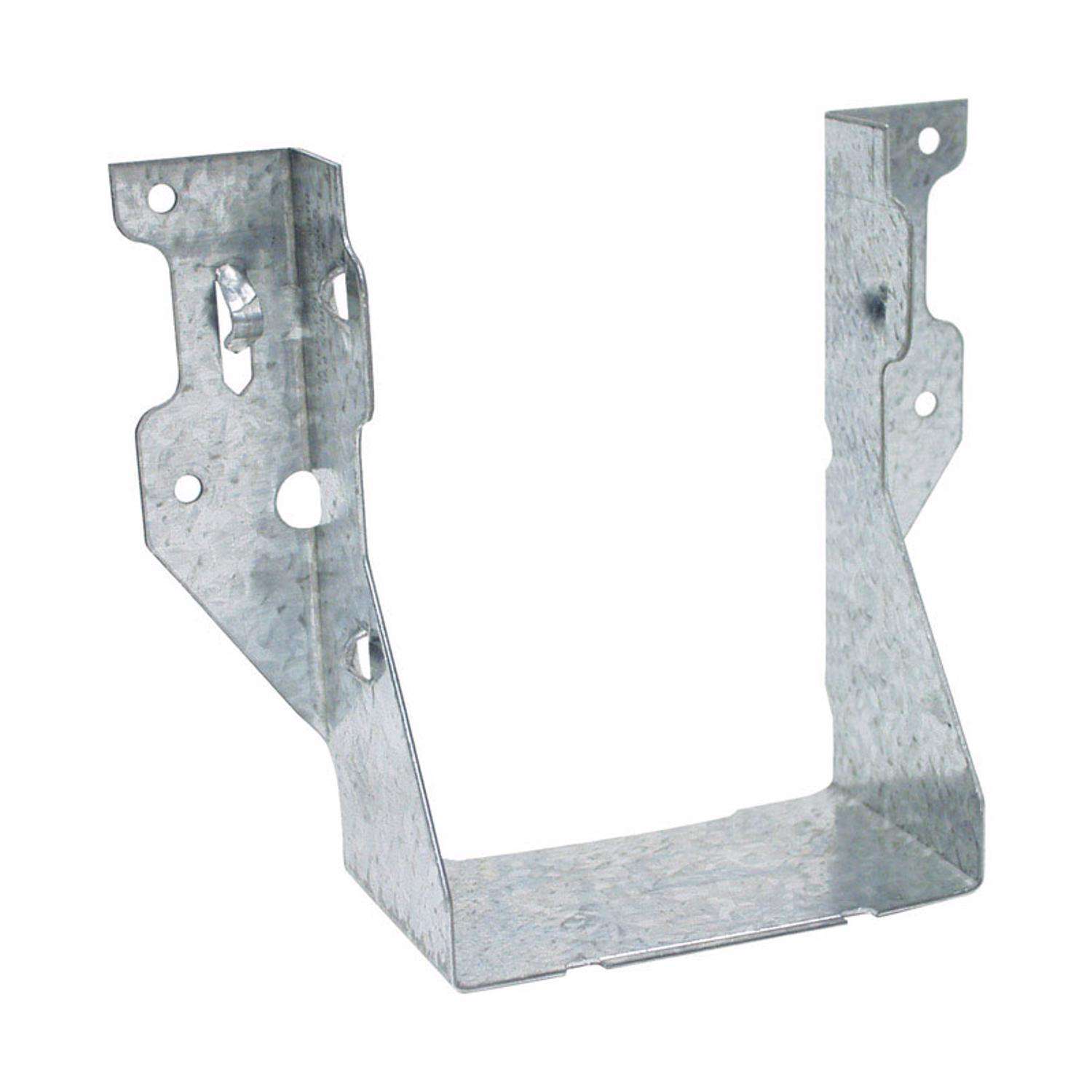

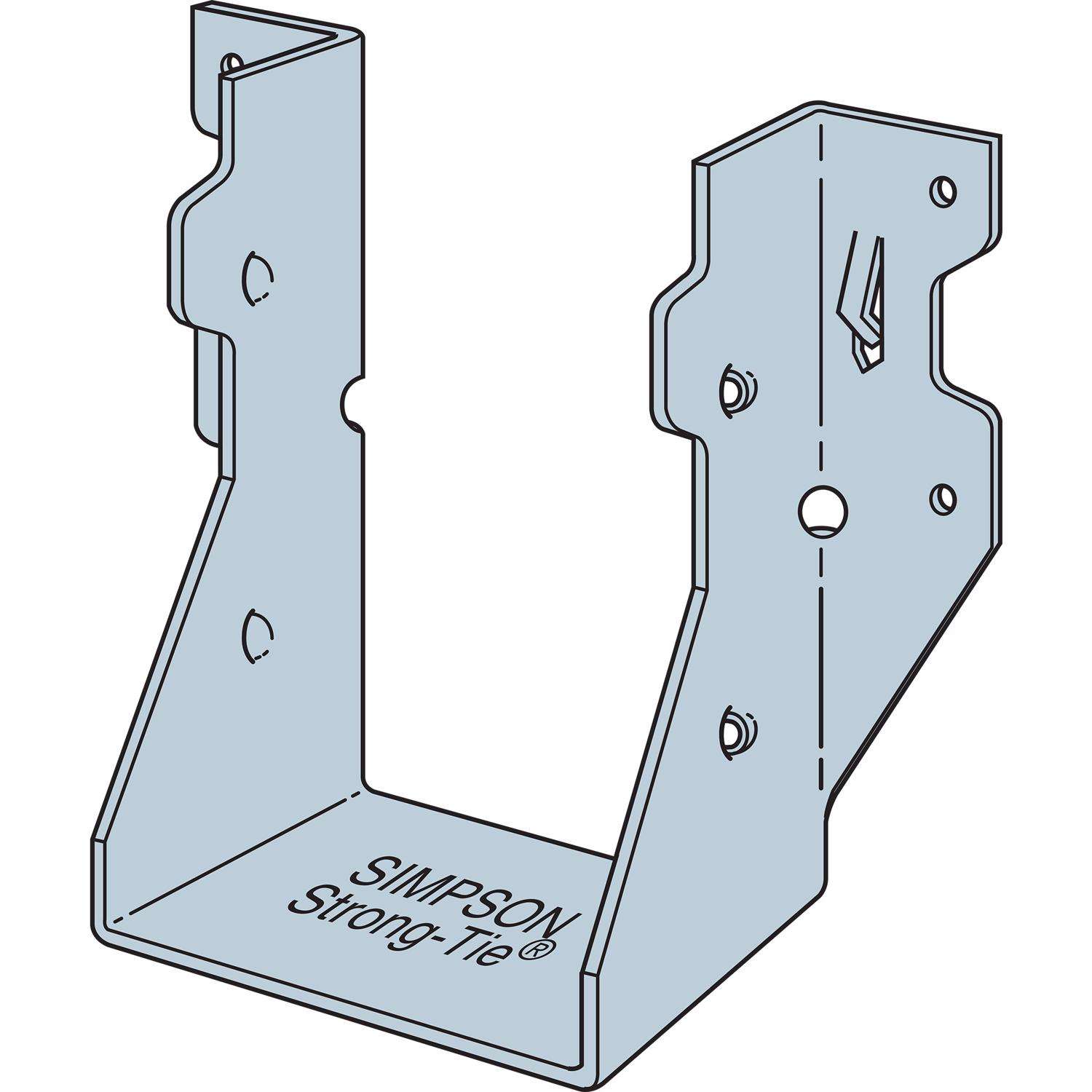

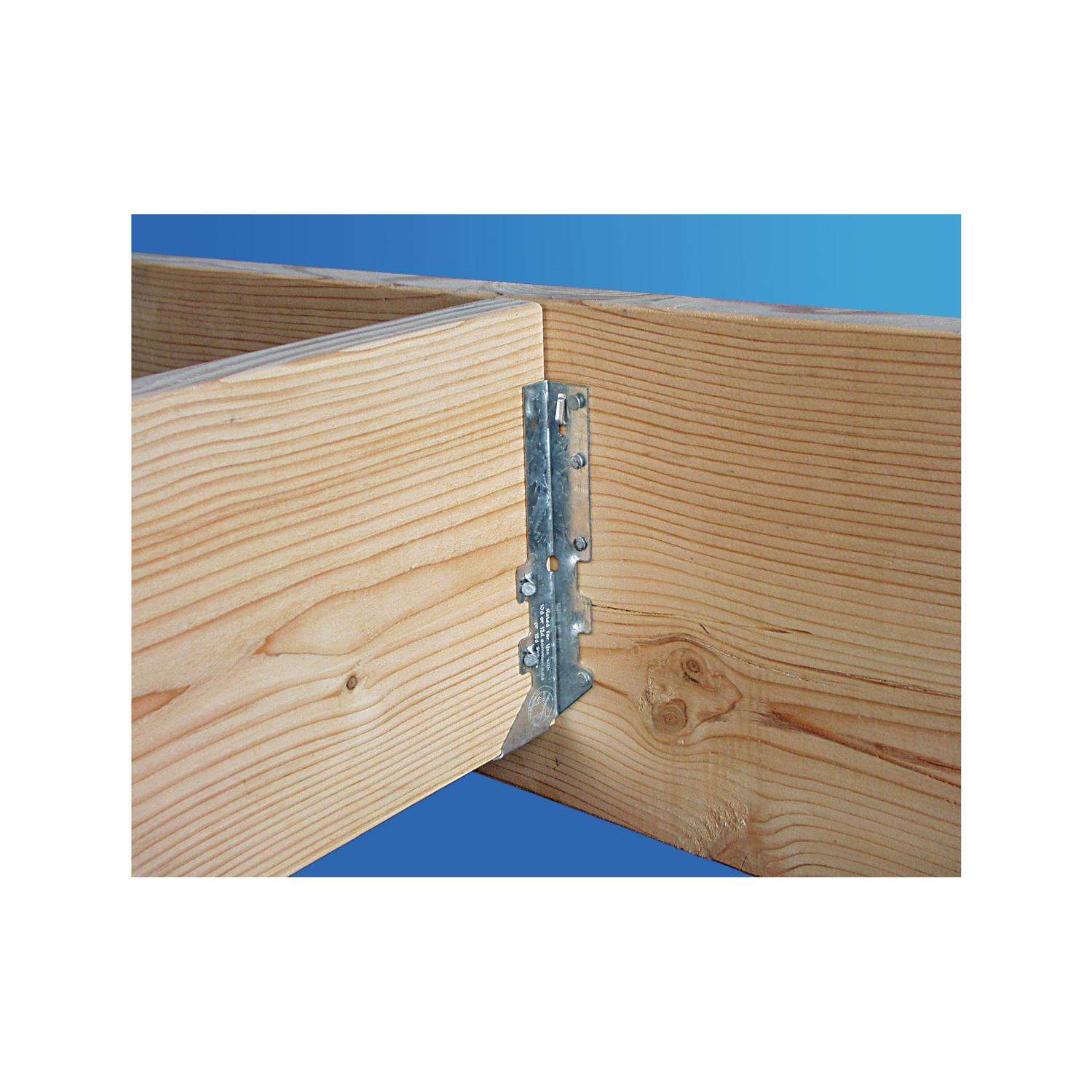

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field skewable and slopeable options. LUS joist hangers provide a connection between a joist and header.
  • Patented double-shear nailing design provides greater strength with fewer nails
  • Speed prongs for fast and easy installation
  • Angled joist nailing easier in tight spaces
  • Do not bend or remove tabs *

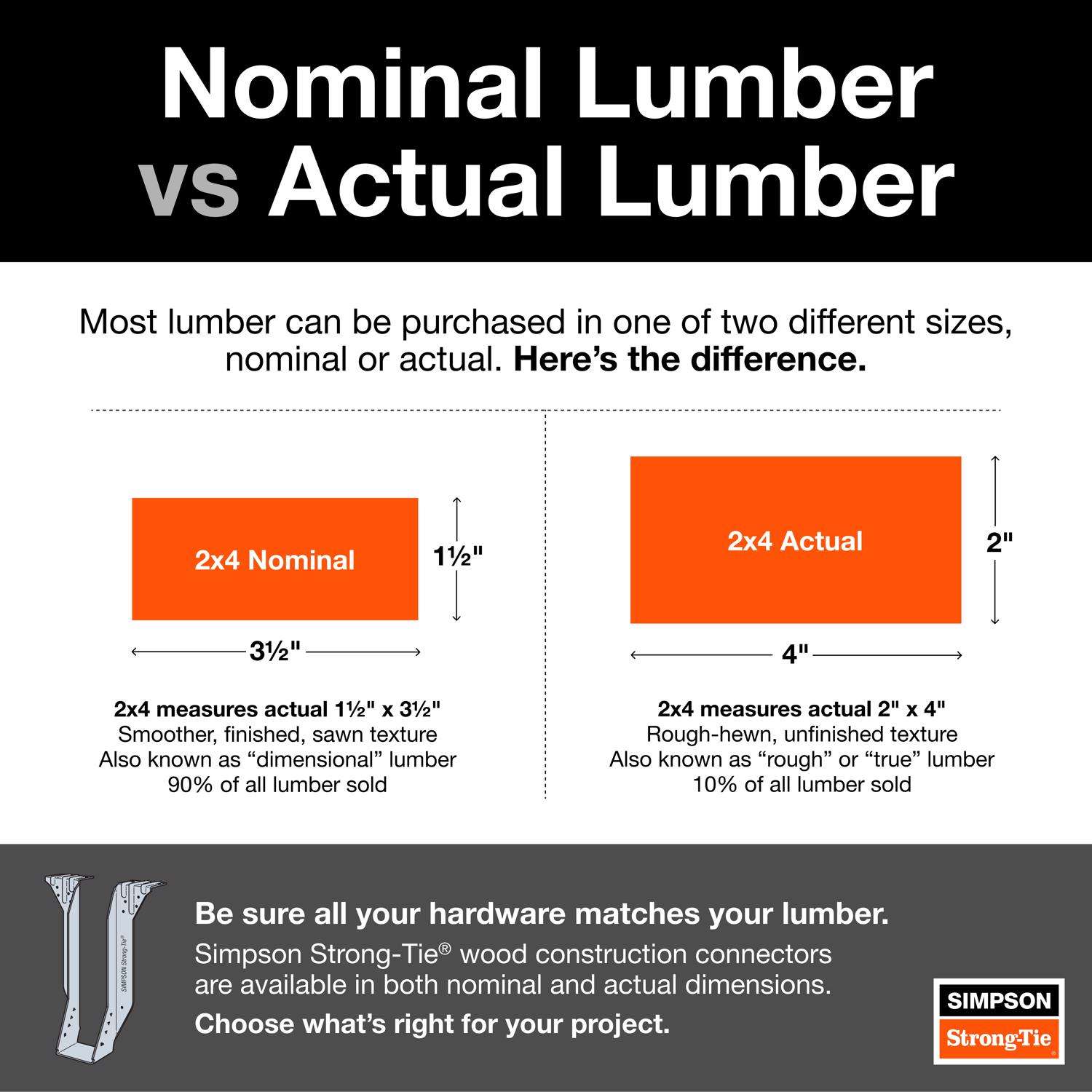

  • Nominal joist size: 4x6, 4x8 *
  • Made from 18-gauge steel *

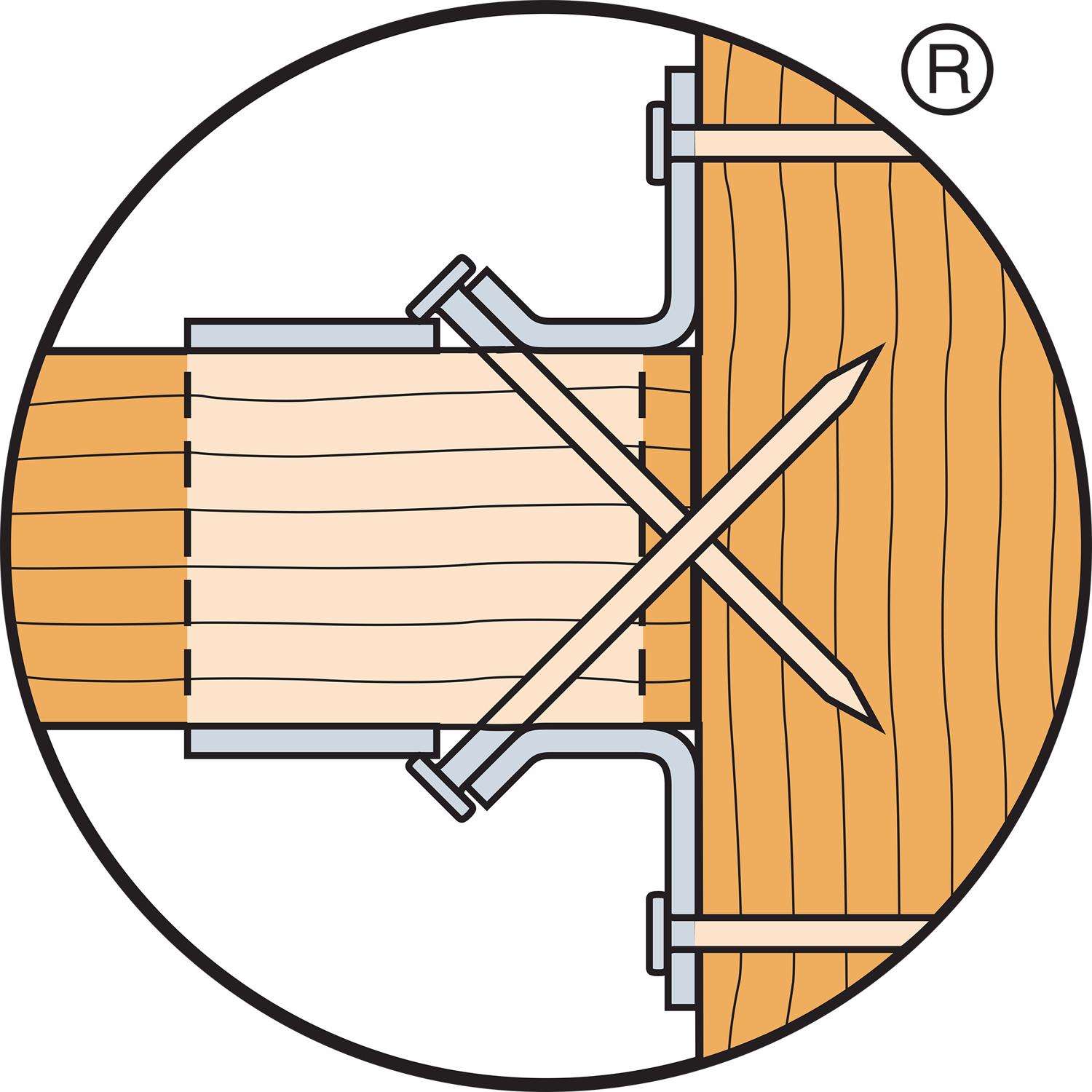

  • Nails must be driven at an angle through the joist or truss into the header to achieve the table loads
  • Not designed for welded or nailer applications

Specifications

  • Brand Name: Simpson Strong-Tie
  • Product Type: Joist Hanger
  • Gauge: 18 Gauge
  • Joist Fasteners: 16d
  • Height: 2 inch
  • Minimum Heel Height: 4-3/8 inch
  • Material: Galvanized Steel
  • Brand Name: Simpson Strong-Tie
  • Width: 6.56 inch
  • Click here to see the Safety Data Sheets for this product.
