Product Overview

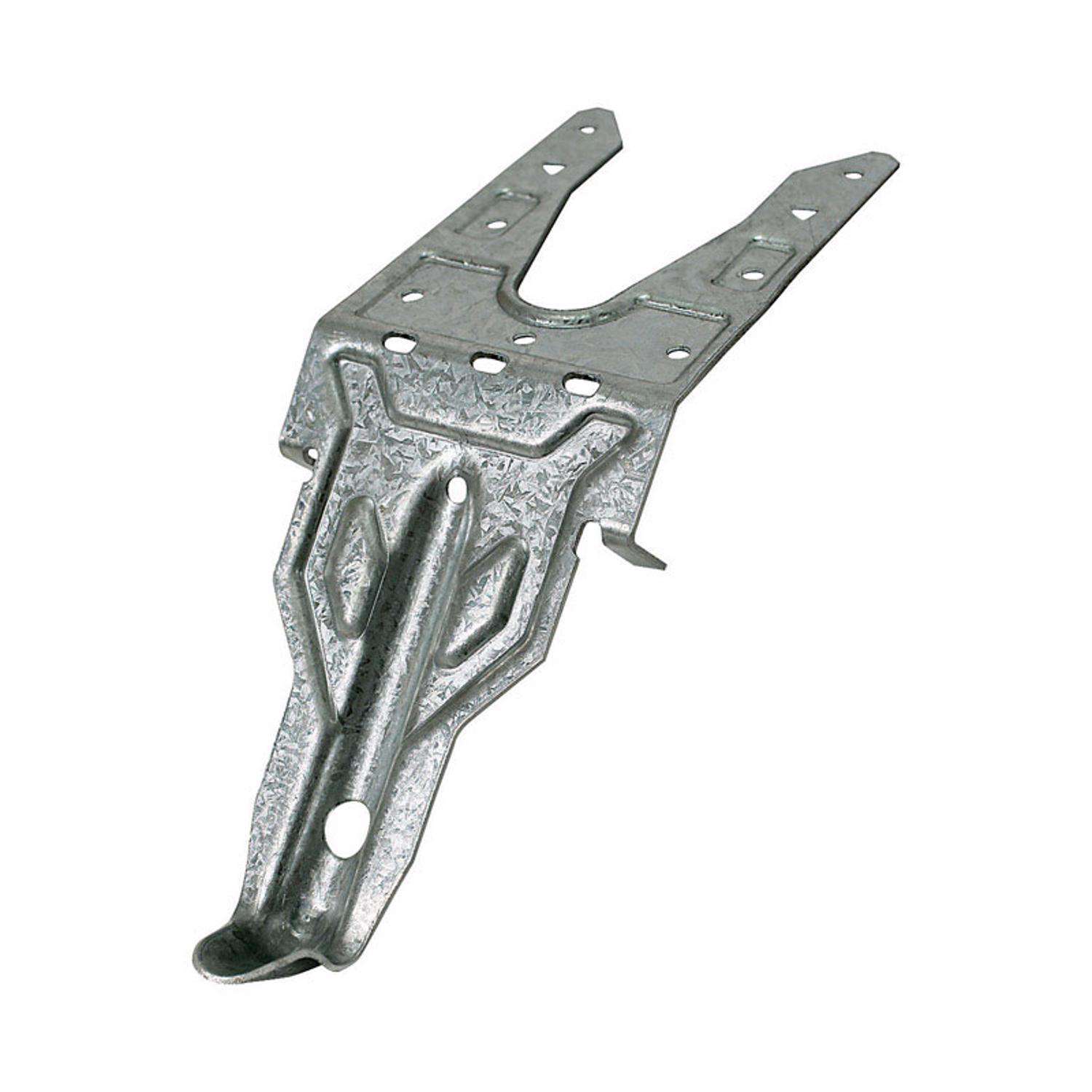

Mudsill anchors have always been a time-saving alternative to anchor bolts, and the MASA anchors provide even greater load-carrying capacity alternative for 5/8 in. and 1/2 in. mudsill anchor bolts on 2x, double-2x and 3x mudsills. It also eliminates the need for 3 in. square plate washers for seismic design and, in some cases, has load capacities that meet or exceed the parallel and perpendicular to plate shear capacity of other cast-in-place anchors. Two versions of the MASA are available - the standard MASA for installation on standard forms and the MASAP for panelized forms.
  • Attaches easily to the concrete form for quick installation *
  • Lays flat on the form board so there is no anchor bolt to finish around *
  • No labor costs involved in drilling plates and aligning holes *
  • Flat design eliminates chances of modification in prefabricated walls *
  • Eliminates the need to notch studs due the anchor bolts being placed where it will interfere *
  • Reduces the chance of having to retrofit anchors because of missing or misplaced anchor bolts *

Specifications

  • Brand Name: Simpson Strong-Tie
  • Sub Brand: ZMax
  • Product Type: Mudsill Anchor
  • Gauge: 16 Gauge
  • Height: 8.25 inch
  • Material: Steel
  • Brand Name: Simpson Strong-Tie
  • Width: 3 inch
  • Sub Brand: ZMAX
  • Click here to see the Safety Data Sheets for this product.
