Product Overview

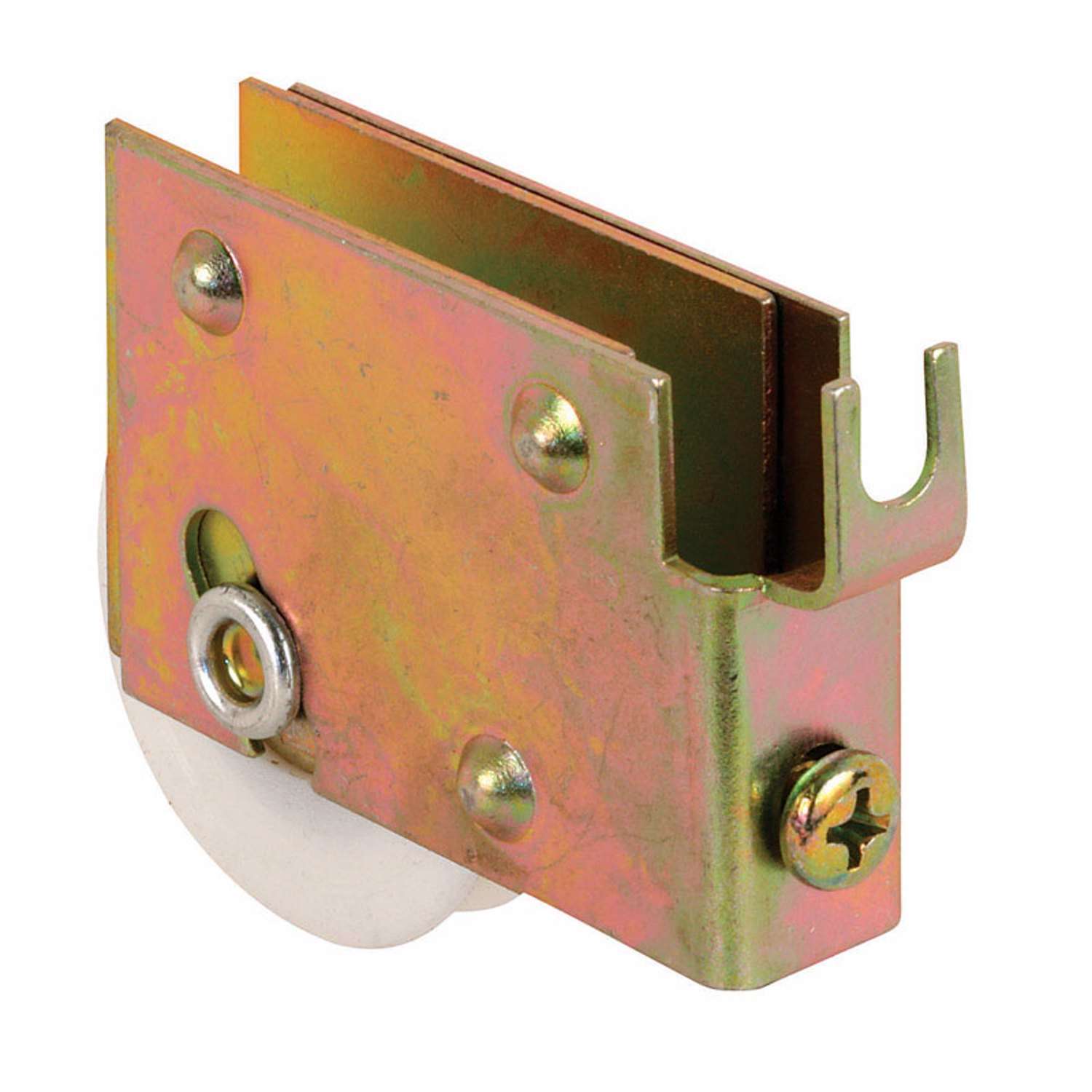

This is a C-tab patio door roller assembly with a 1-1/2 inch concave nylon ball bearing roller. As the C-tab is positioned around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 9/16 in. wide and 1-3/8 in. tall with a 3/4 in. dimple width. Used on Window Master patio doors. It replaces the original K-tab style that is no longer available.
  • Used on Window Master sliding patio doors
  • As the C-tab is positioned around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together
  • 1-1/2 in. diameter concave roller
  • Stamped steel housing and a nylon roller
  • C-tab
  • Rear adjusting screw
  • A Phillips head screwdriver is required for installation

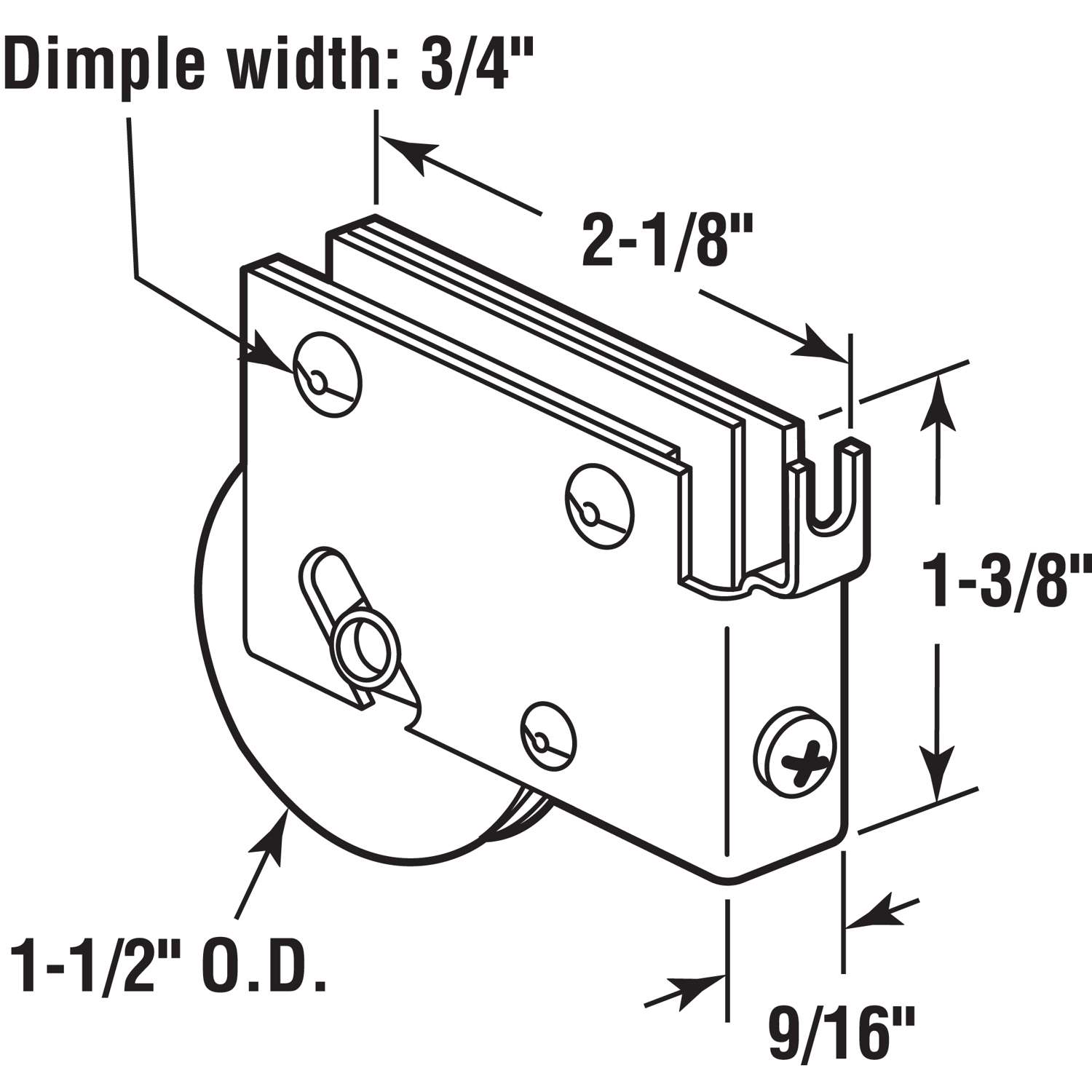

  • For further dimensional information, please see the line drawing

Specifications

  • Brand Name: Prime-Line
  • Product Type: Roller Assembly
  • Compatibility: Window Master and other glass doors
  • Diameter: 1 1/2 inch
  • Hardware included: YEs
  • Length: 0.56 inch
  • Material: Nylon/Steel
  • Number in Package: 1 pack
  • Packaging Type: Carded
  • Brand Name: Prime-Line
  • Click here to see the Safety Data Sheets for this product.
