Product Overview

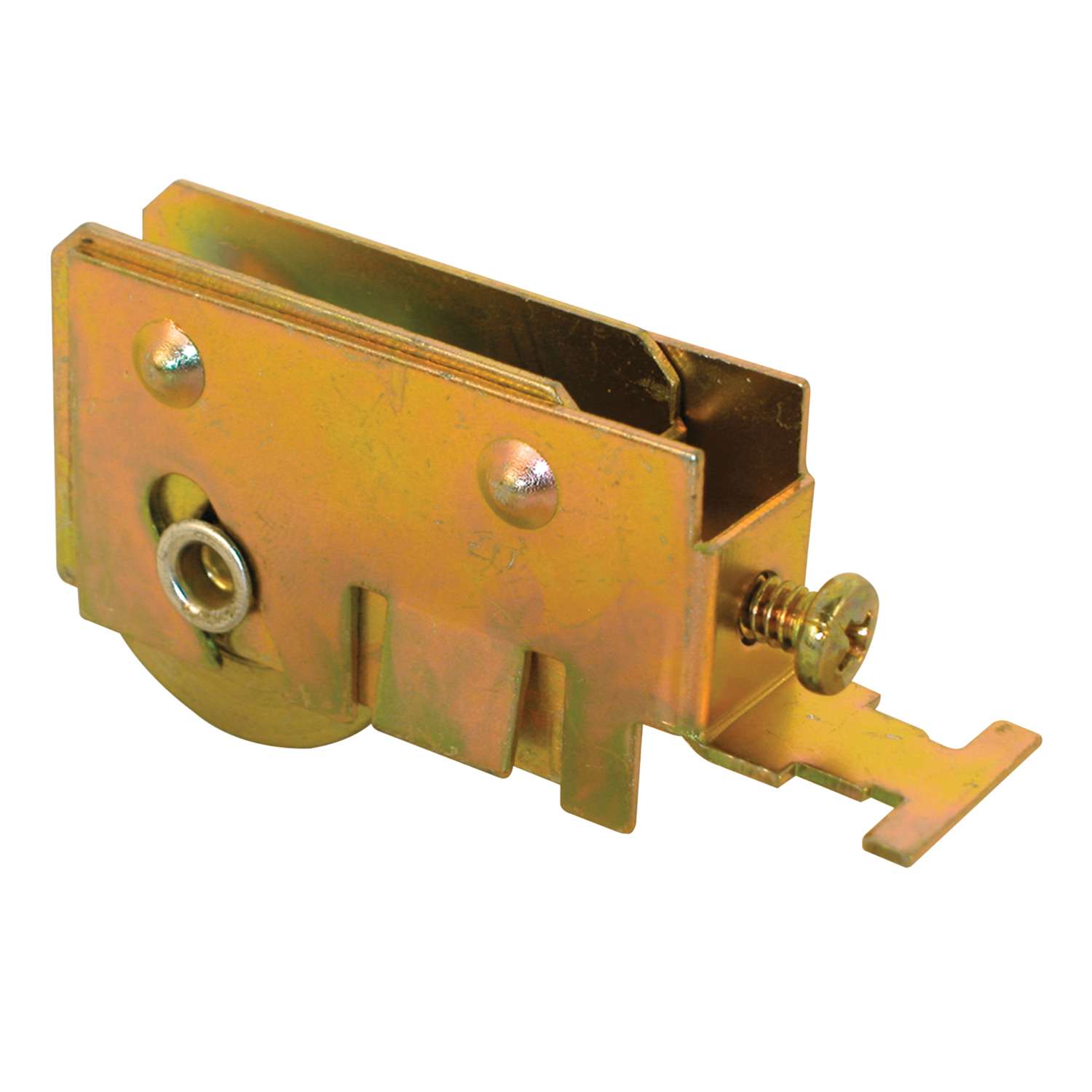

This is a K-tab patio door roller assembly with a 1-1/4 in. concave or grooved steel ball bearing roller. The T-shaped tab (K-Tab) is simply slid up into a T-shaped receptacle in the bottom of the patio door. No screws are required. The housing is 5/8 in. wide and 1-3/16 in. tall with a flare and a 3/4 in. dimple width. Used by International and a variety of other sliding patio door manufacturers.
  • Used by International Windows Corporation and a variety of other sliding patio door manufacturers
  • K-tab style housing
  • 1-1/4 in. diameter concave steel roller
  • Stamped steel housing with ball bearing roller
  • Features rear screw adjustment
  • Used on metal framed sliding patio doors
  • A Phillips head screwdriver is required for installation

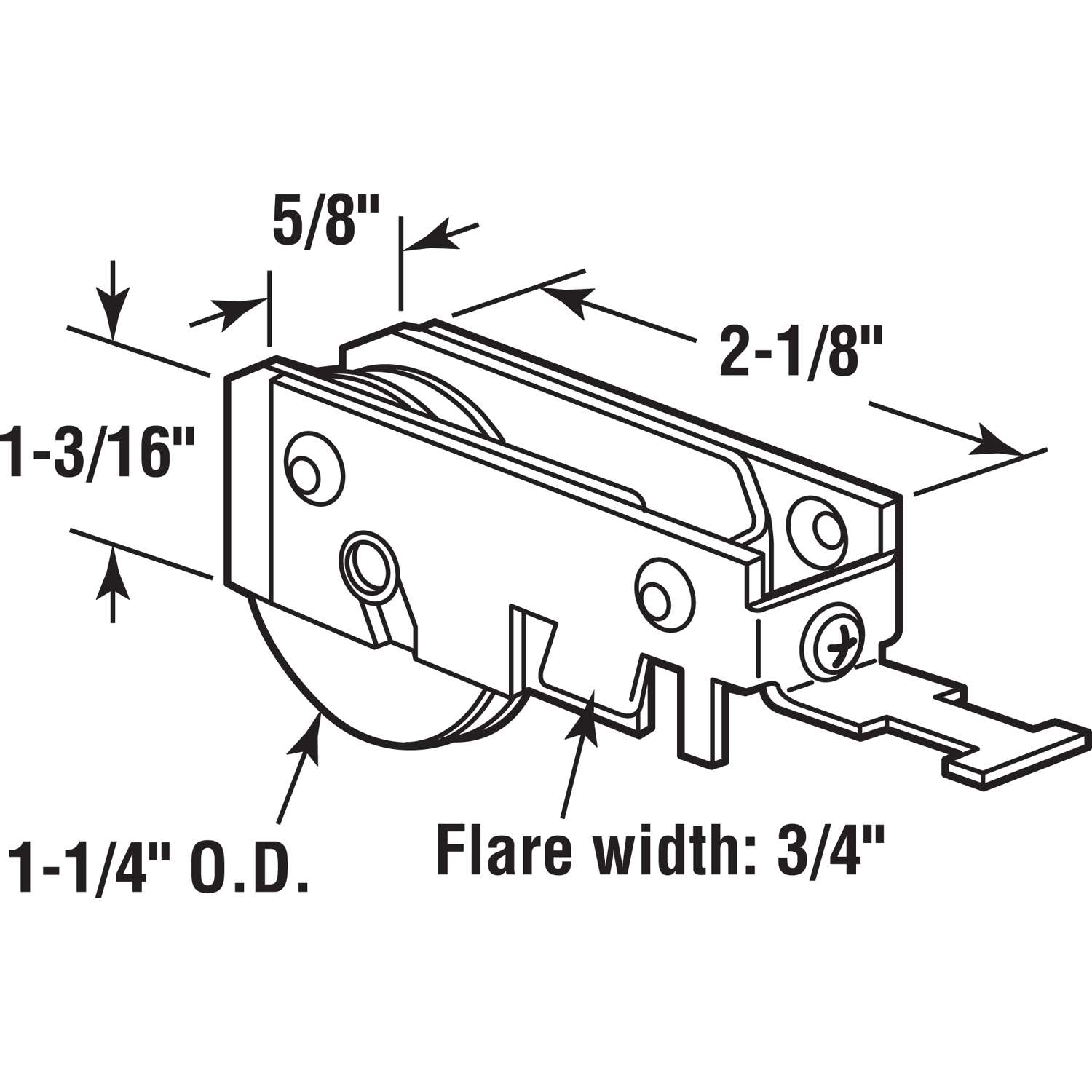

  • For further dimensional information, please see the line drawing

Specifications

  • Brand Name: Prime-Line
  • Product Type: Pocket Door Roller Assembly
  • Compatibility: International and other patio doors manufacturers.
  • Diameter: 1 1/4 inch
  • Hardware included: YEs
  • Length: 5/16 inch
  • Material: Steel
  • Number in Package: 1 pack
  • Packaging Type: Carded
  • Brand Name: Prime-Line
  • Click here to see the Safety Data Sheets for this product.
