Product Overview

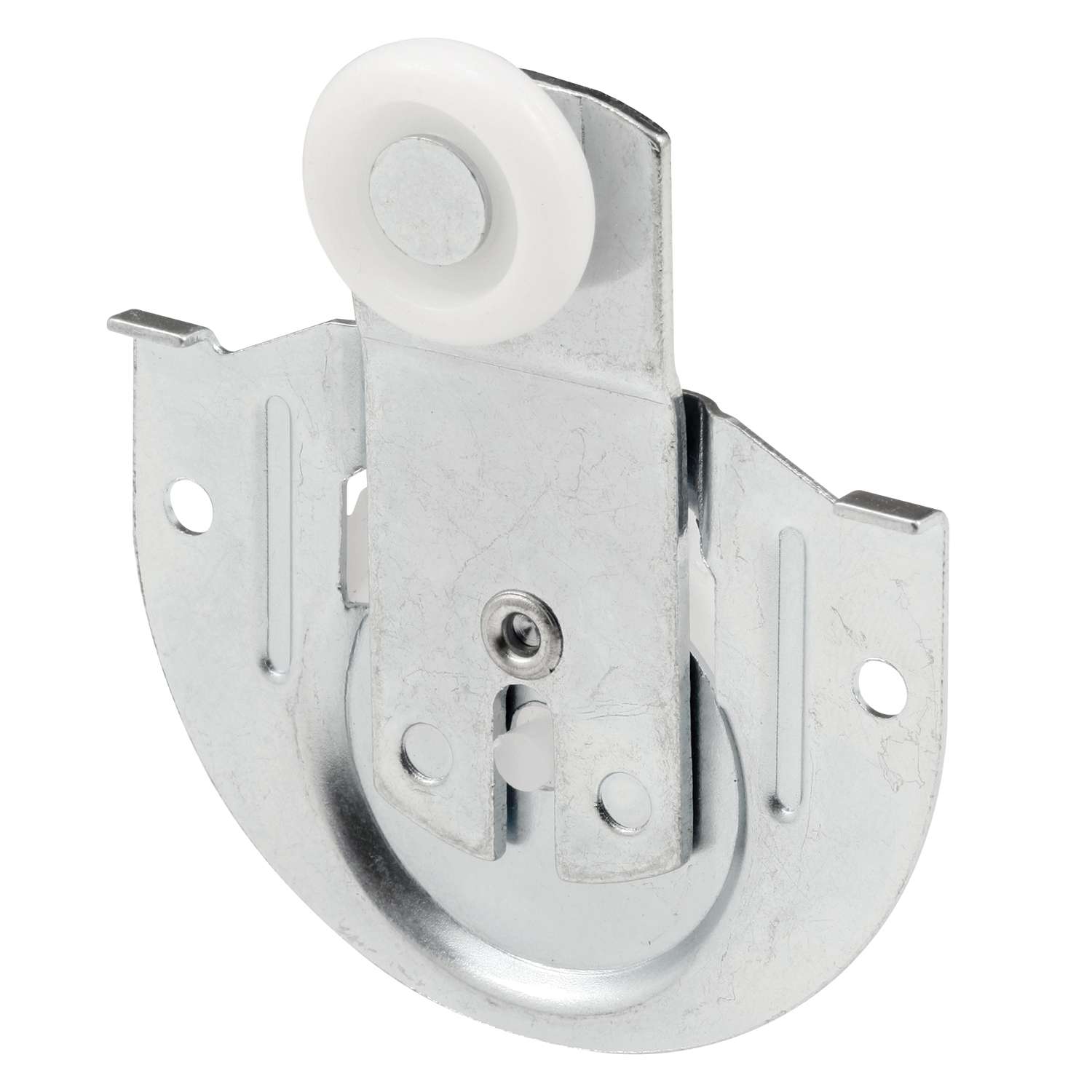

This is a side mounted, top hung adjustable wardrobe door roller assembly used on the front sliding door panel. The bracket is a dial adjust design with a 1/8 in. offset and a 7/8 in. convex nylon roller. Used on 3/4 in. to 1-3/8 in. thick doors. Used by Stanley and a variety of manufacturers. For back panel see Prime-line part N 6649.
  • Used on Stanley as well as a variety of other manufacturers
  • Top Hung, Side Mount design
  • Fits on the front sliding door
  • Stamped steel bracket uses a dial adjust design
  • 7/8 in. diameter convex roller with a 1/8 in. offset
  • All the necessary mounting hardware is included for a quick and easy installation
  • A Phillips head screwdriver is required for installation

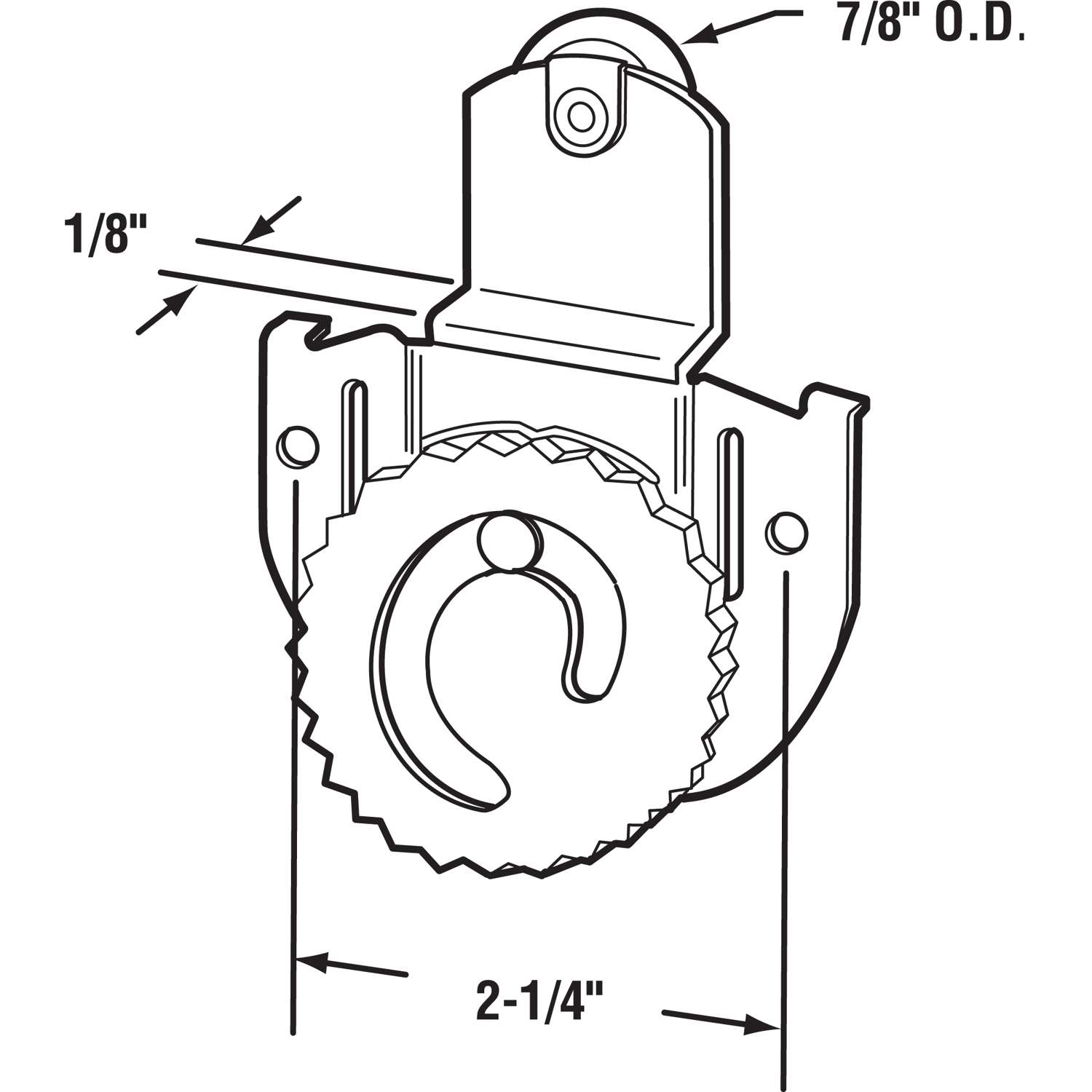

  • For further dimensional information, please see the line drawing

Specifications

  • Brand Name: Prime-Line
  • Product Type: Roller Assembly
  • Compatibility: Used by Stanley and a variety of manufacturers
  • Diameter: 7/8 inch
  • Finish: Mill
  • Hardware included: YEs
  • Maximum Door Length: 1-3/8 inch
  • Length: 1/8 inch
  • Minimum Door Length: 0.75 inch
  • Material: Nylon/Steel
  • Number in Package: 2 pack
  • Packaging Type: Carded
  • Brand Name: Prime-Line
