Product Overview

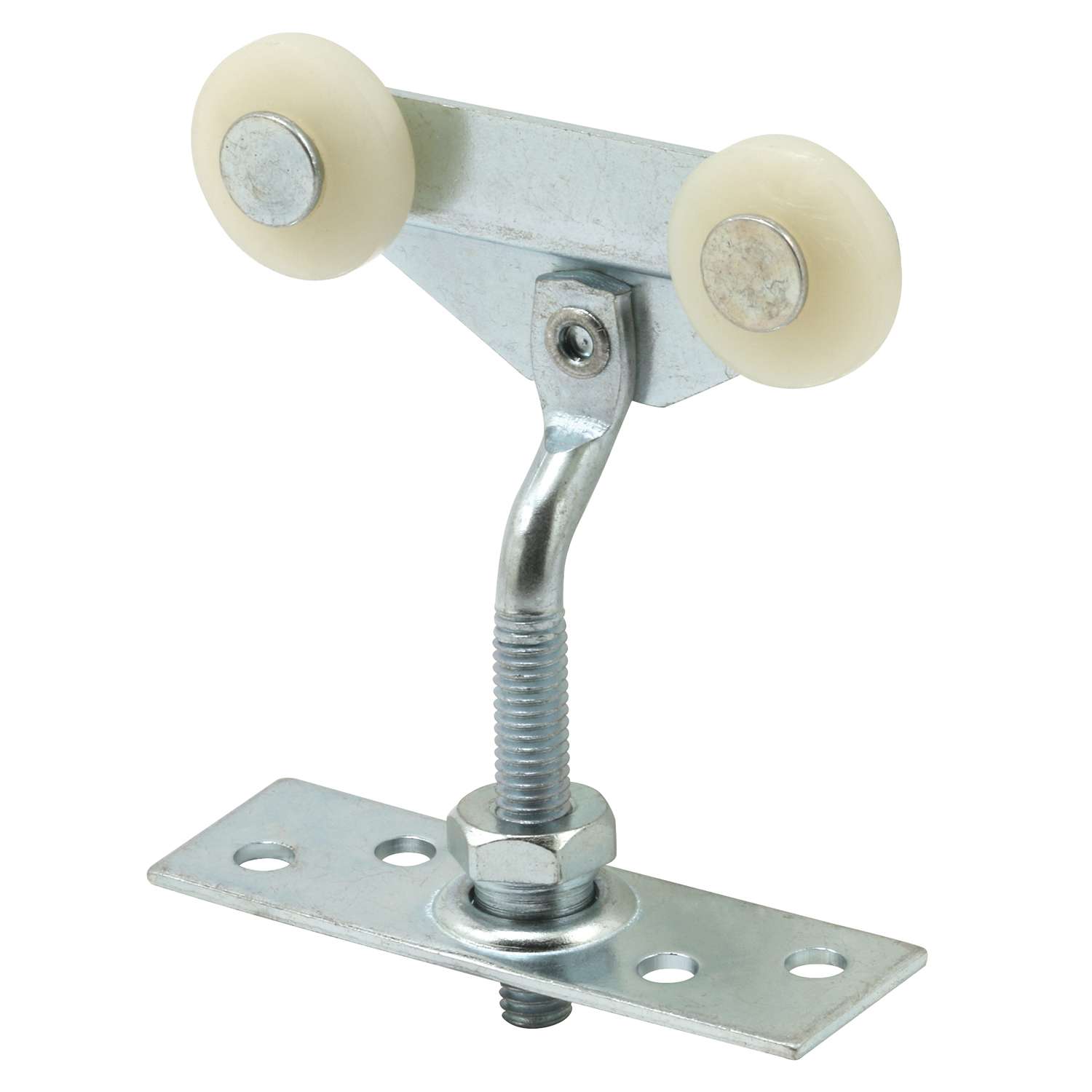

This is a top, center mounted, adjustable, tandem roller assembly. The 3/4 in. convex edged nylon rollers are attached to a stamped steel tandem housing mounted on top of a 5/16 in. threaded steel rod. Used on Harvey closet doors 3/4 in. to 1-3/8 in. thick, it threads into a top bracket like the Prime-Line part N 6797.
  • Used on Harvey and a variety of other closet door manufacturers
  • Top hung center mount design
  • 3/4 in. diameter rounded nylon tandem rollers
  • Stamped steel housing
  • 5/16 in. threaded steel rod
  • Mounting hardware included
  • A Phillips head screwdriver is required for Installation

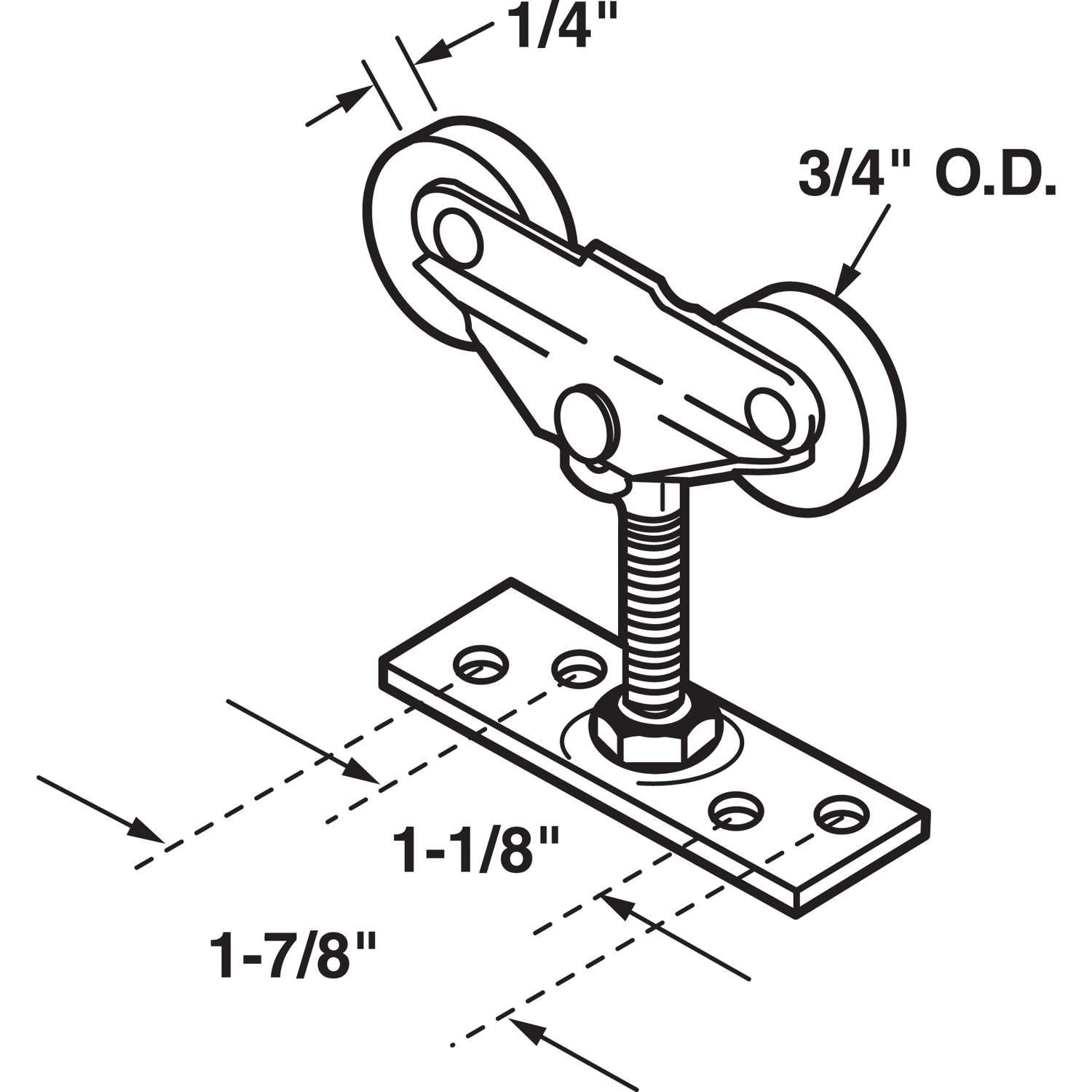

  • For further dimensional information, please see the line drawing

Specifications

  • Brand Name: Prime-Line
  • Product Type: Pocket Door Roller Assembly
  • Compatibility: Harvey Door Systems
  • Diameter: 3/4 inch
  • Finish: Mill
  • Hardware included: YEs
  • Maximum Door Length: 1-3/8 inch
  • Length: 1/4 inch
  • Minimum Door Length: 0.75 inch
  • Material: Nylon/Steel
  • Number in Package: 1 pack
  • Packaging Type: Carded
  • Brand Name: Prime-Line
  • Click here to see the Safety Data Sheets for this product.
