Product Overview

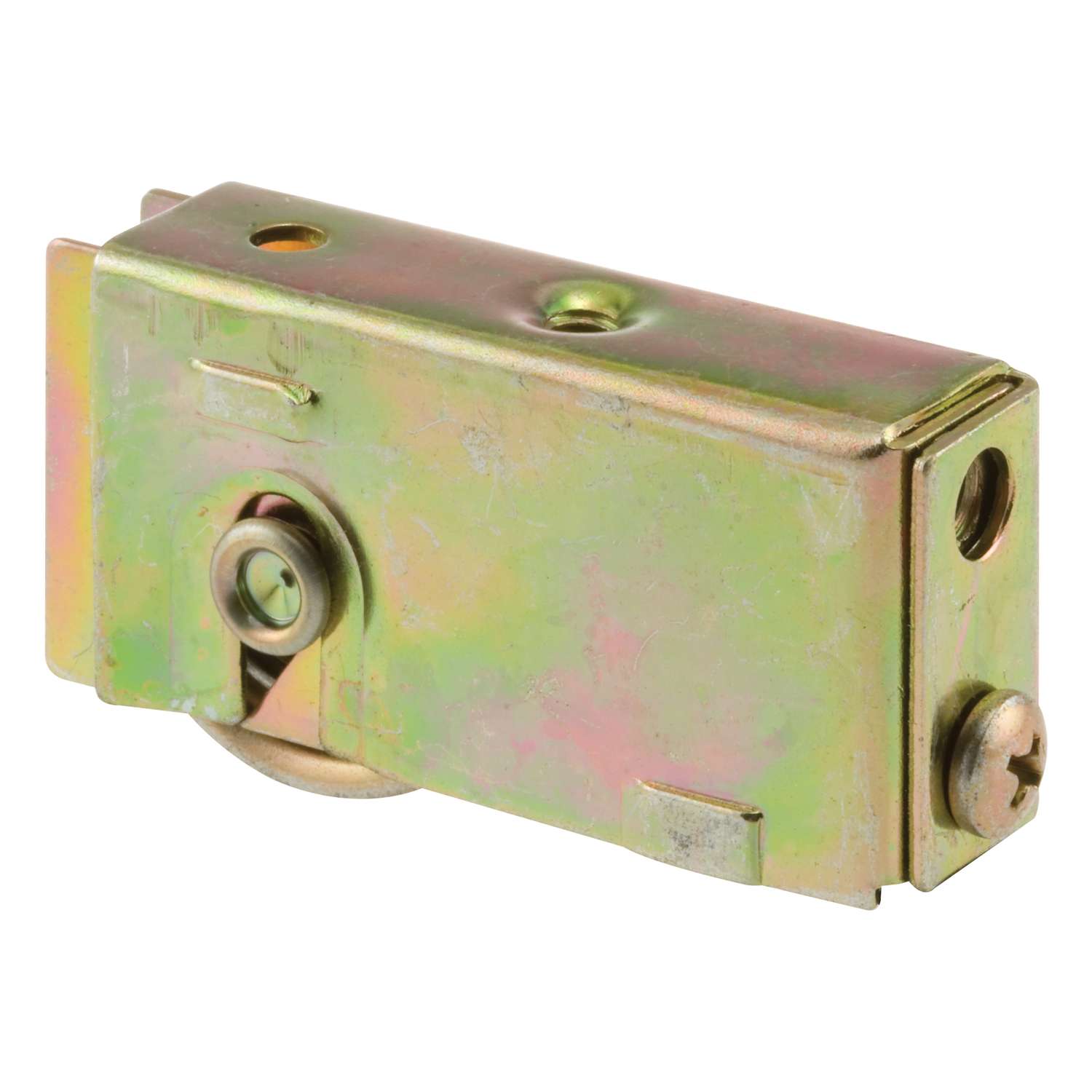

This is a plain back patio door roller assembly with a 1-1/4 in. concave or grooved steel ball bearing roller. It has a plain back housing that is 11/16 in. wide and 1-1/4 in. tall with a flare width of 13/16 in. with a rear adjusting screw. Features a 1/4-20 machine thread mounting hole on the plain back end and a #10-32 threaded optional use hole on the top. Used by Blomberg and a variety of other manufacturers of vinyl and metal sliding patio doors.
  • Can be found on Blomberg and a variety of other sliding patio door manufacturers
  • 1/4-20 threaded mounting hole on the back end and an optional use 10-32 threaded hole on the top of the housing
  • 1-1/4 in. concave ball bearing steel roller
  • Made of stamped steel
  • Easy to install
  • Two mounting variations
  • A Phillips head screwdriver is required for Installation
  • For further dimensional information, please see the line drawing
  • 2-3/8 inch housing length

Specifications

  • Brand Name: Prime-Line
  • Product Type: Roller Assembly
  • Compatibility: Bloomberg and other glass doors
  • Diameter: 1 1/4 inch
  • Hardware included: YEs
  • Length: 0.69 inch
  • Material: Steel
  • Number in Package: 1 pack
  • Packaging Type: Carded
  • Brand Name: Prime-Line
