Product Overview

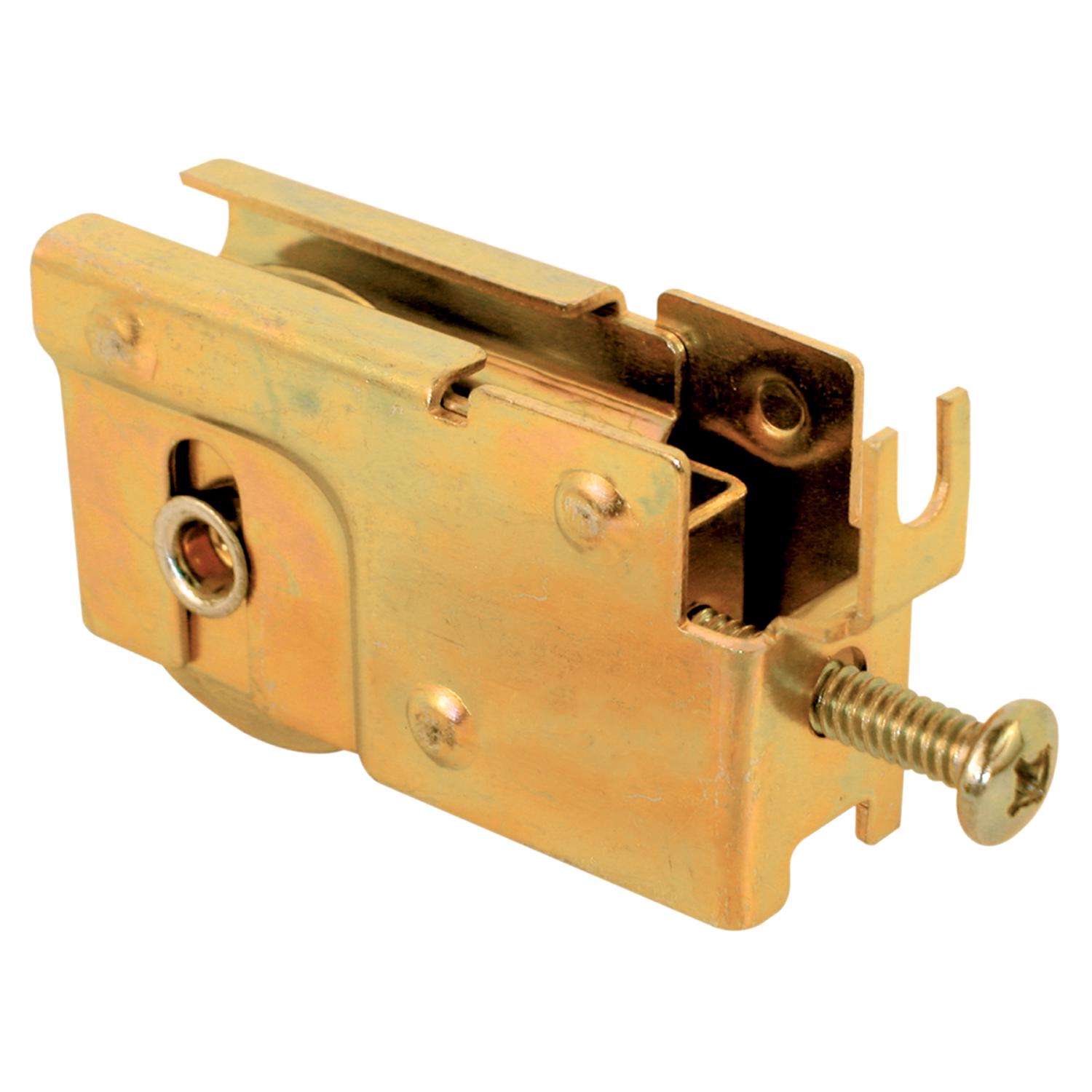

This is a C-tab patio door roller assembly with a 1-1/8 in. diameter concave, or grooved, steel ball bearing roller. As the C-shaped tab fits around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 23/32 in. wide and 1-3/16 in. tall with a dimple width of 7/8 in., and most often used by Solar Industries and a variety of other patio door manufacturers.
  • Used by Solar Industries and a variety of other metal framed patio door manufacturers
  • 1-1/8 in. diameter roller
  • C-tab housing with rear adjust
  • Steel housing and ball bearing roller
  • The C-shaped tab fits around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together
  • Easy to install
  • A Phillips head screwdriver is required for installation
  • For further dimensional information, please see the line drawing

Specifications

  • Brand Name: Prime-Line
  • Product Type: Roller Assembly
  • Compatibility: Solar Ind and other glass doors
  • Diameter: 1-1/8 inch
  • Finish: Brass
  • Hardware included: YEs
  • Length: 5/16 inch
  • Material: Steel
  • Number in Package: 1 pack
  • Packaging Type: Carded
  • Brand Name: Prime-Line
