Product Overview

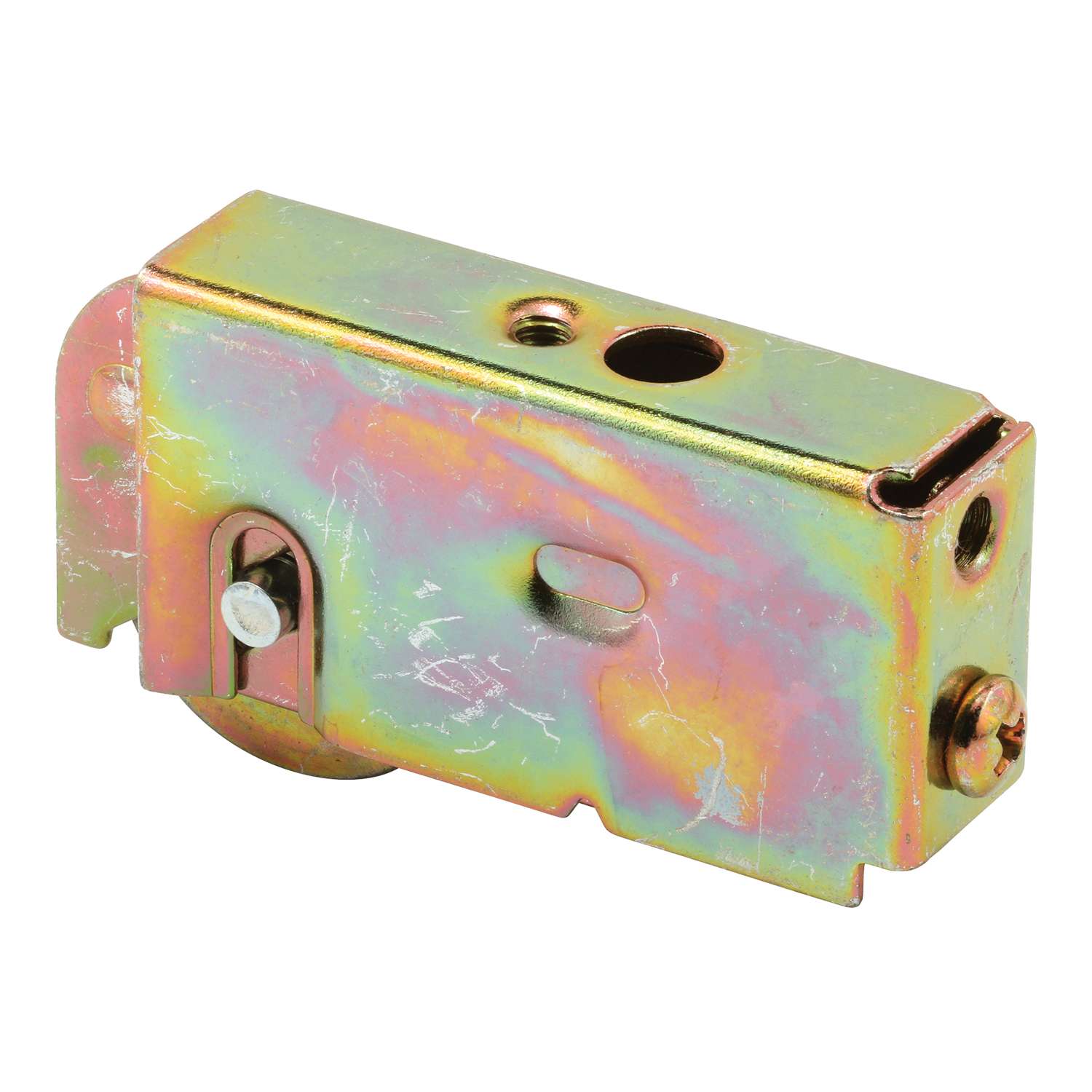

This is a plain back patio door roller assembly with a 1-1/4 in. concave or grooved steel ball bearing roller. It has a plain back housing that is 3/4 in. wide and 1-3/8 in. tall. It is rear adjusting with a 1/4-20 threaded mounting hole on the back end and an optional use #10-32 threaded hole on top. It is used by Air Control, Howmet, Krestmark and a variety of other manufacturers of patio doors.
  • Used by Air Control, Howmet, Krestmark and a variety of other sliding patio door manufacturers
  • Plain back housing with 1/4-20 threaded mounting hole on back
  • 1-1/4 in. diameter concave steel roller
  • Stamped steel housing with ball bearing roller
  • Features rear screw adjustment
  • Used on metal framed sliding patio doors
  • A Phillips head screwdriver is required for installation

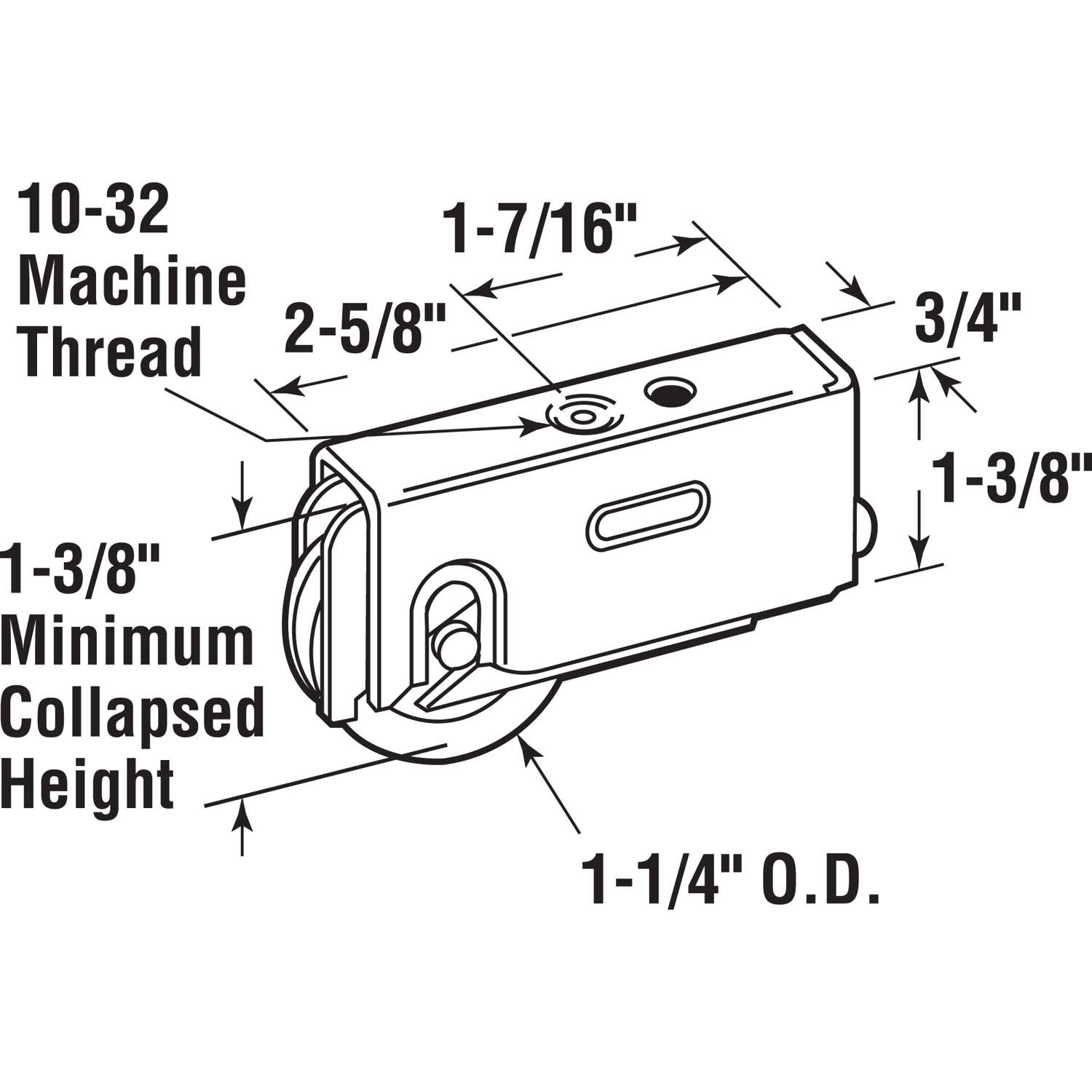

  • For further dimensional information, please see the line drawing

Specifications

  • Brand Name: Prime-Line
  • Product Type: Roller Assembly
  • Compatibility: Air Control, Howmet, Krestmark
  • Diameter: 1 1/4 inch
  • Hardware included: YEs
  • Length: 0.75 inch
  • Material: Steel
  • Number in Package: 1 pack
  • Packaging Type: Carded
  • Brand Name: Prime-Line
