Product Overview

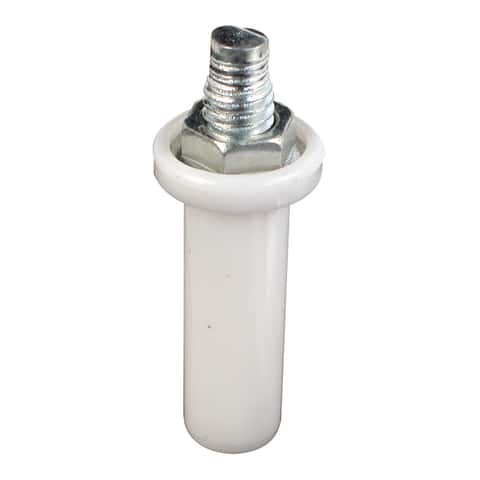

This is a bottom mount pivot used on Cox and a variety of other bi-fold door manufacturers. The 7/16 in. diameter nylon base houses a 3/16 in. pivot with a hex head nut for adjustment. It fits 1 in. to 1-3/8 in. thick bi-fold doors weighing up to 30 lbs. each.
  • What's Included: Bi-fold door bottom pivots
  • Used on Cox and a variety of other bi-fold doors
  • Fits doors 1 in. to 1-3/8 in. thick
  • Bottom mount
  • Nylon base with hex head nut
  • Easy to install
  • Maximum weight limit is 30 lbs
  • A soft mallet may be required for installation

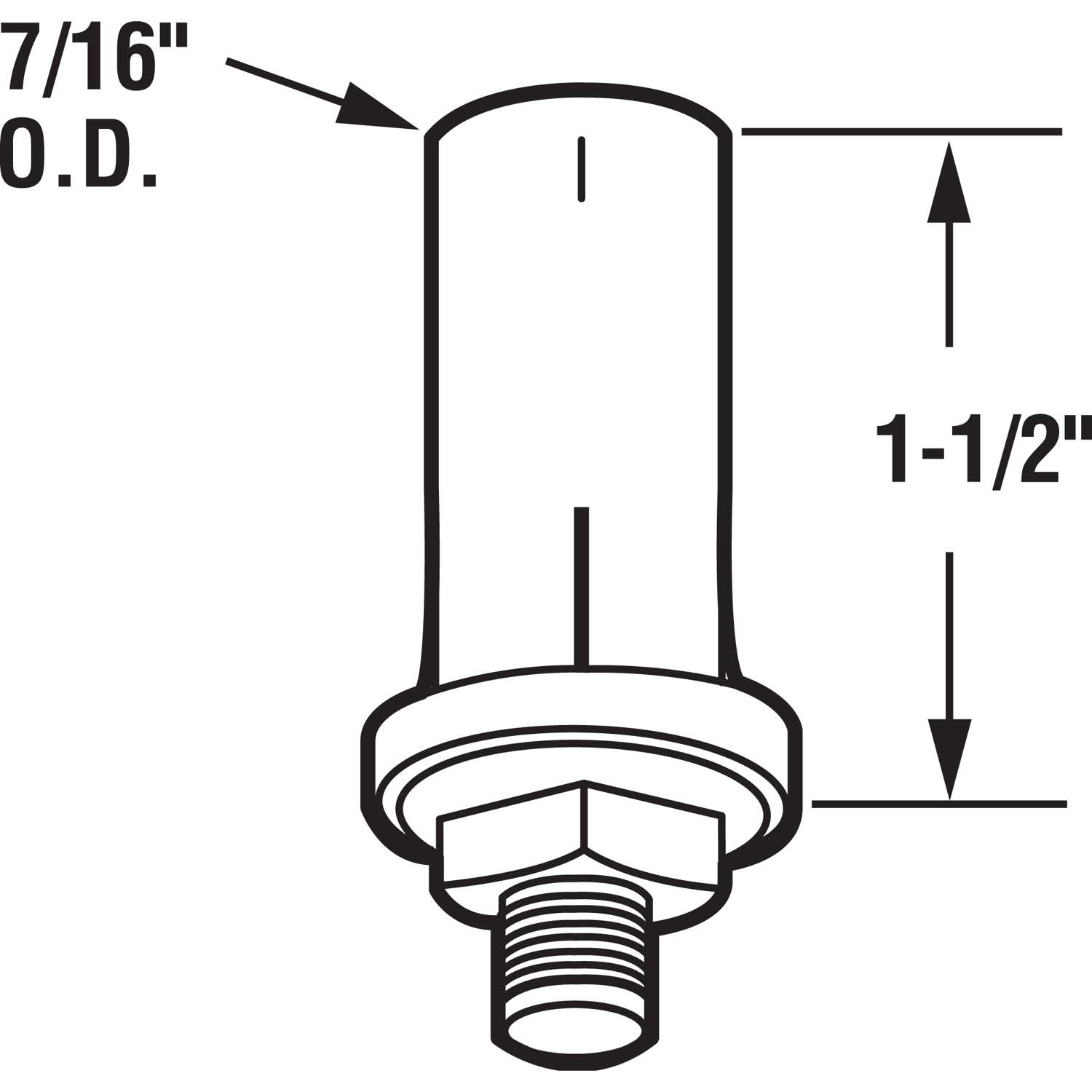

  • For further dimensional information, please see the line drawing

Specifications

  • What's Included: Bi-fold door bottom pivots
  • Brand Name: Prime-Line
  • Product Type: Bi-Fold Closet Door Pivot
  • Application: 1 in. to 1-3/8 in. Bi-Fold Doors up to 30 lbs.
  • Capacity: 30 pound
  • Commercial or Residential: Residential
  • Color: WHITE
  • Diameter: 7/16 inch
  • Application: 1 in. to 1-3/8 in. Bi-Fold Doors up to 30 lbs.
  • Finish: Matte
  • Hardware included: YEs
  • Height: 1.5 inch
  • Maximum Door Thickness: 1.38 inch
  • Length: 1.5 inch
  • Material: Plastic
  • Mounting: Bottom
  • Number in Package: 2 piece
  • Packaging Type: Carded
  • Screws Included: No
  • Brand Name: Prime-Line
  • Width: 0.44 inch
  • Click here to see the Safety Data Sheets for this product.
