Product Overview

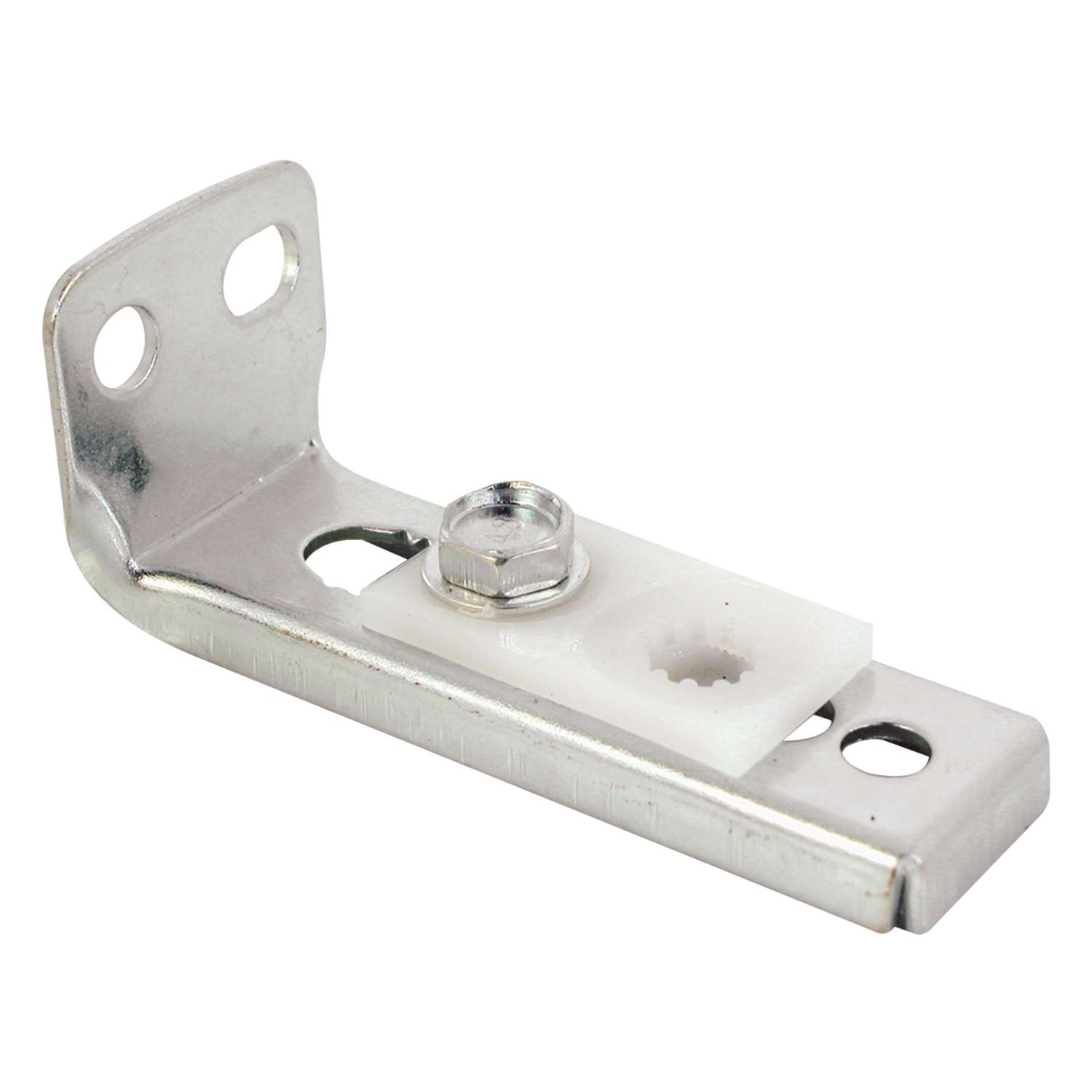

This is a floor and jamb mounted bottom pivot bracket. Typically used on Acme bi-fold doors and a variety of other door manufacturers. Constructed from stamped steel and comes with a zinc plated finish. It features an adjustable self-lubricating nylon bushing. Can be used on doors 1 in. to 1-3/8 in. thick. The maximum safe weight capacity is 50 lbs. per door. All the necessary mounting hardware is included for a quick and easy installation.
  • What's Included: Bi-fold bracket
  • Stamped-steel constructionUsed by Acme and several other bi-fold manufacturers
  • Adjustable floor mounting bracketUsed with 1 in. to 1-3/8 in. thick doors
  • Floor and jamb mounted
  • Stamped steel base
  • For doors up to 50 lbs
  • Mounting hardware included
  • A Phillips head screwdriver is required for installation

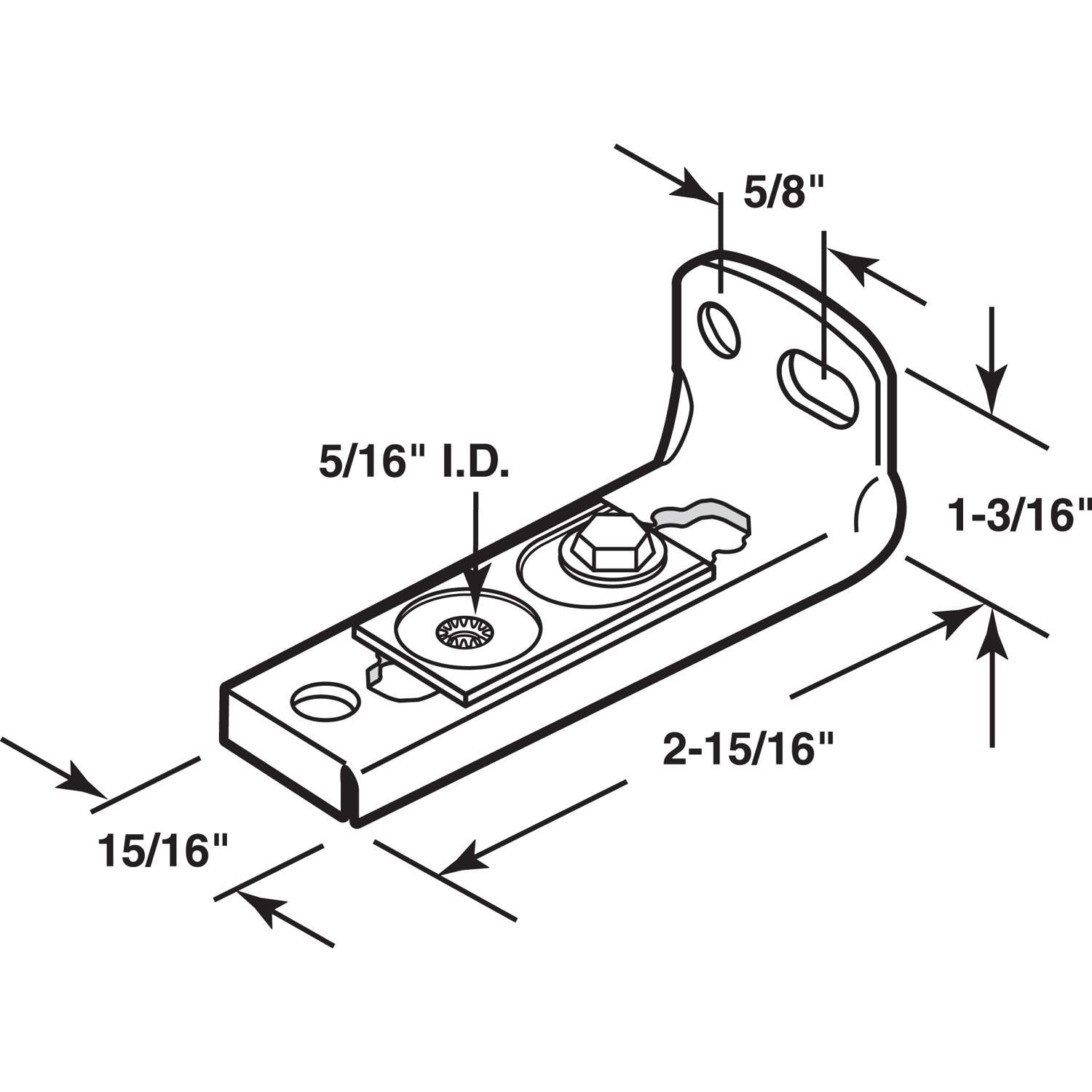

  • For further dimensional information, please see the line drawing

Specifications

  • What's Included: Bi-fold bracket
  • Brand Name: Prime-Line
  • Product Type: Bracket
  • Application: For 1 in. to 1-3/8 in. Folding Door Sup to 50 lbs
  • Capacity: 50 pound
  • Commercial or Residential: Residential
  • Color: Silver
  • Diameter: 0.31 inch
  • Application: For 1 in. to 1-3/8 in. Folding Door Sup to 50 lbs
  • Finish: Zinc Plated
  • Hardware included: No
  • Height: 1.19 inch
  • Maximum Door Thickness: 1.38 inch
  • Length: 2.94 inch
  • Material: Steel
  • Mounting: Floor
  • Number in Package: 1 pack
  • Packaging Type: Carded
  • Screws Included: Yes
  • Brand Name: Prime-Line
  • Width: 15/16 inch
