Product Overview

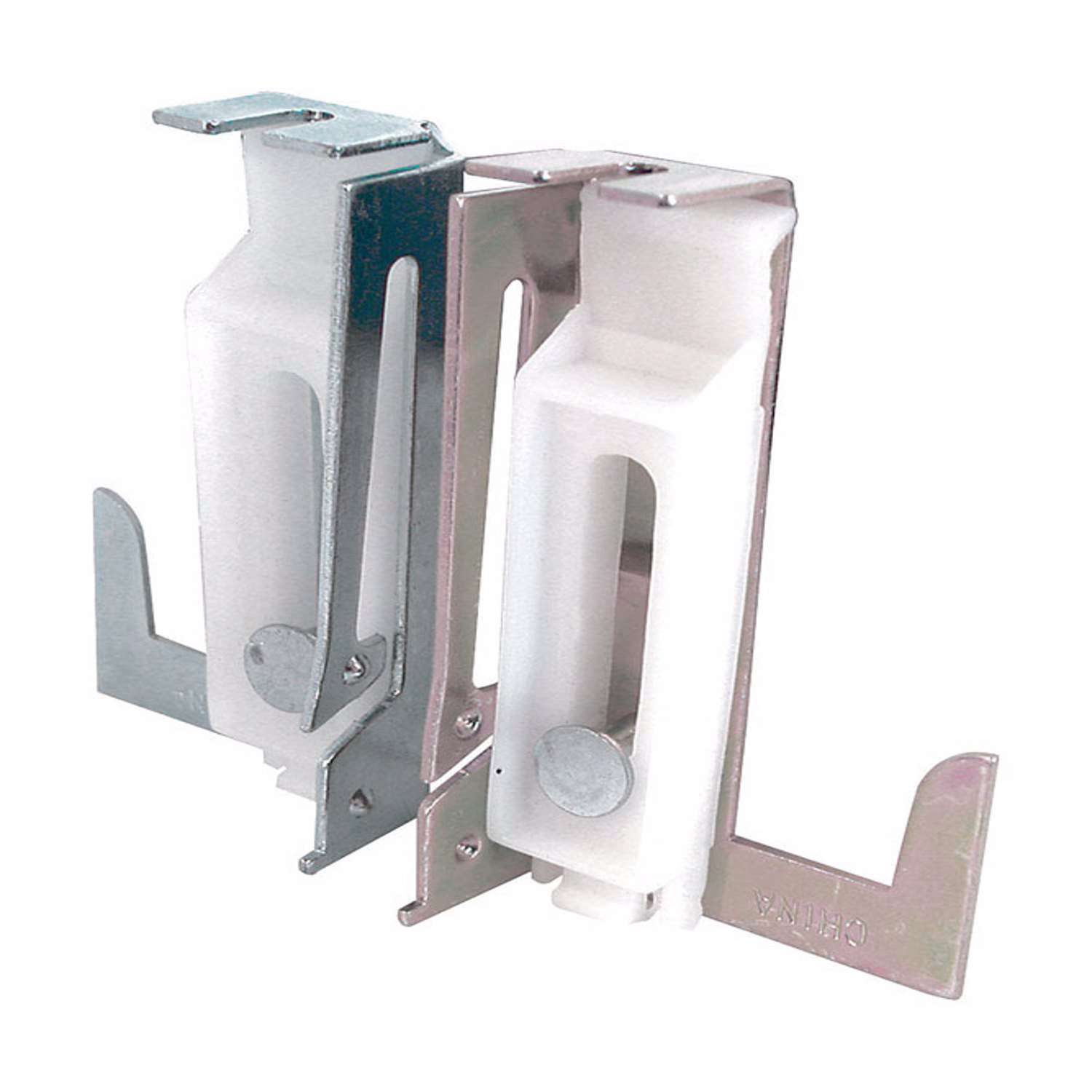

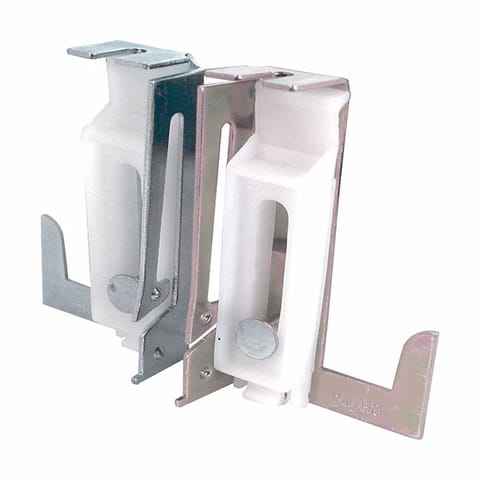

These panel wardrobe door guides are constructed of stamped steel and include nylon inserts. Included with this pair of guides are 1 left-hand and 1 right-hand door guide, both which mount at the bottom of older style Acme and Stanley wardrobe doors. These guide assemblies have an adjustable height feature, and also act as corner brackets while holding the sides and door bottoms together. These replacement door guides are easy to install and they are used by many.
  • What's Included: 2 guide assemblies- 1 left and 1 right and 1 set of installation screws
  • Compatible with older style Acme & Stanley wardrobe doors
  • Used on panel style wardrobe doors
  • Adjustable 2-piece bottom mounted bracket assembly
  • Stamped steel housing with a nylon guide insert
  • Parts are handed, and includes 1-left hand and 1-right hand guide
  • Easy to install in less than 30 minutes with a few simple tools
  • Installation instructions included

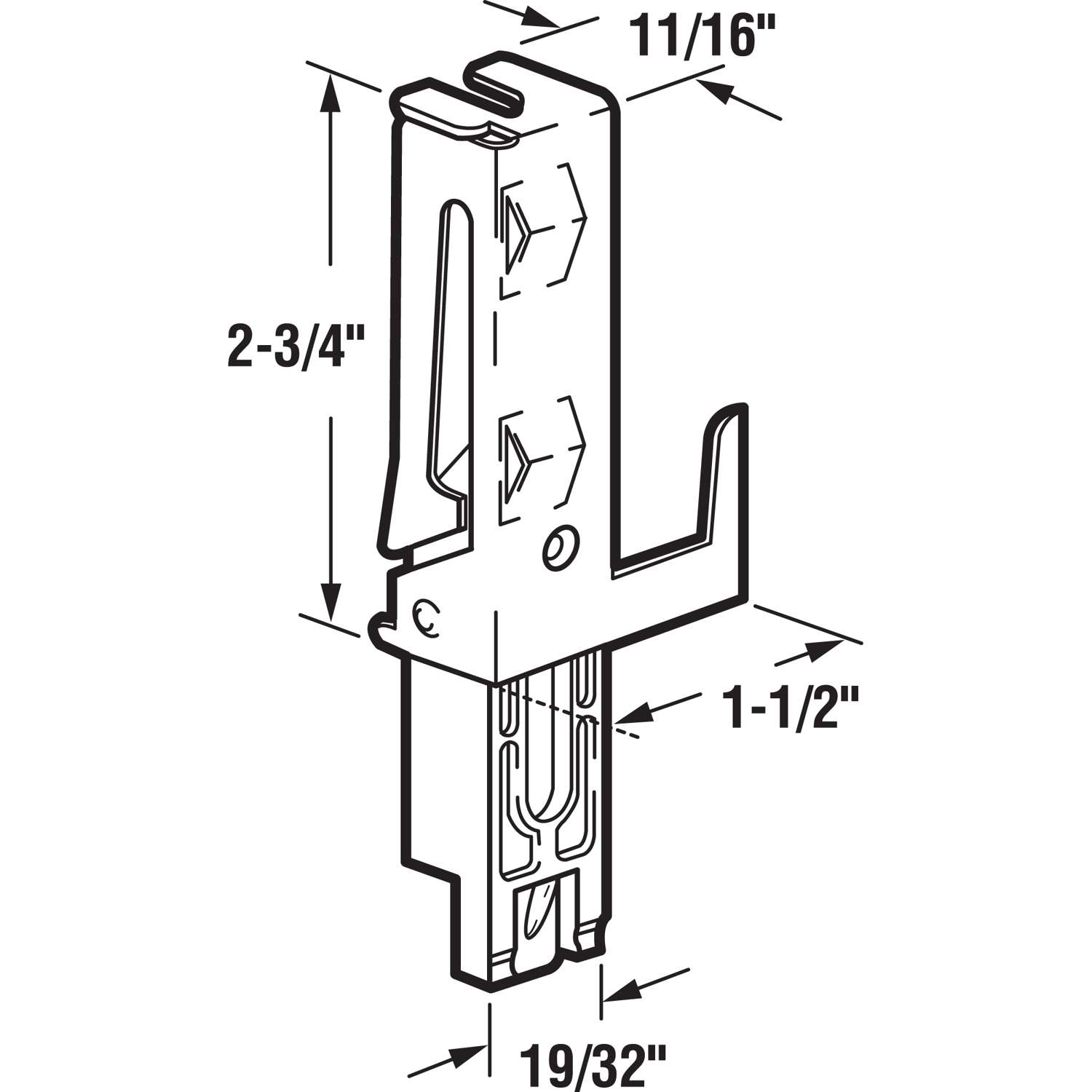

  • For further dimensional information, please see the line drawing

Specifications

  • What's Included: 2 guide assemblies- 1 left and 1 right and 1 set of installation screws
  • Brand Name: Prime-Line
  • Product Type: Door Guide
  • Application: 1 in. to 1-3/8 in. Bi-Fold Doors up to 30 lbs.
  • Capacity: 30 pound
  • Commercial or Residential: Residential
  • Color: Silver/White
  • Diameter: 0.59 inch
  • Application: 1 in. to 1-3/8 in. Bi-Fold Doors up to 30 lbs.
  • Finish: Zinc Plated
  • Hardware included: YEs
  • Height: 3.25 inch
  • Maximum Door Thickness: 1.38 inch
  • Length: 2 3/4 inch
  • Material: Steel
  • Mounting: Bottom
  • Number in Package: 1 pack
  • Packaging Type: Carded
  • Screws Included: No
  • Brand Name: Prime-Line
  • Width: 1 1/2 inch
  • Click here to see the Safety Data Sheets for this product.
