Ace Hardware  /  Hardware  /  Door Knobs and Locks  /  Lock Cylinder Barrels
image-1
image-2
Roll over image to zoom

Price
$15.99
Pickup


Delivery


From:

add to cart Image
Returns

Free returns on most items within 30 days.

Product Overview

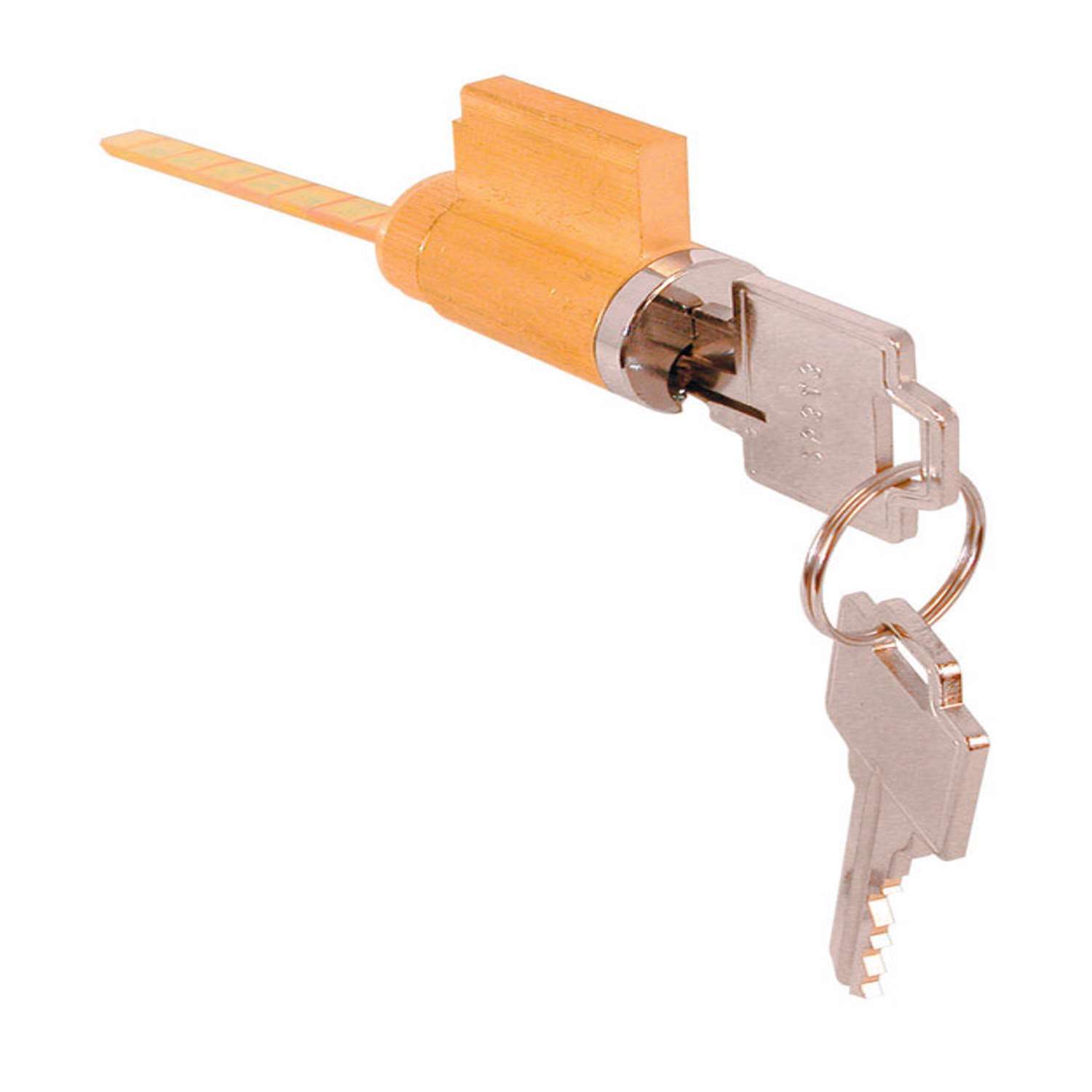

This cylinder housing and 5-pin tumblers of this lock are constructed of brass, it comes finished with a chrome face and features a hardened cut-away tail piece. This cylinder lock is used to key lock most surface mounted patio door handle sets and works with vertical and 45 degree key ways. Compatible key ways include those manufactured by Weiser®, Kwikset® and Weslock®. Tip: if keyed-alike cylinders are desired for more than one lock, kindly see Prime-Line part E 2107.
  • What's Included: 2 keys, 1 lock cylinder, 1 tailpiece
  • Used to replace damaged key cylinders, or cylinders with lost or damaged keys
  • Outside diameter of cylinder housing measures 1-9/16 in
  • Features pre-cut break away tail piece for a variety of mountings
  • Solid brass housing with hardened break away tail piece and a chrome face
  • Compatible with Weiser, Kwikset and Weslock keys
  • Used to re-key most surface mount handlesets
  • Hardened tail piece may need to be cut or filed down to fit your door

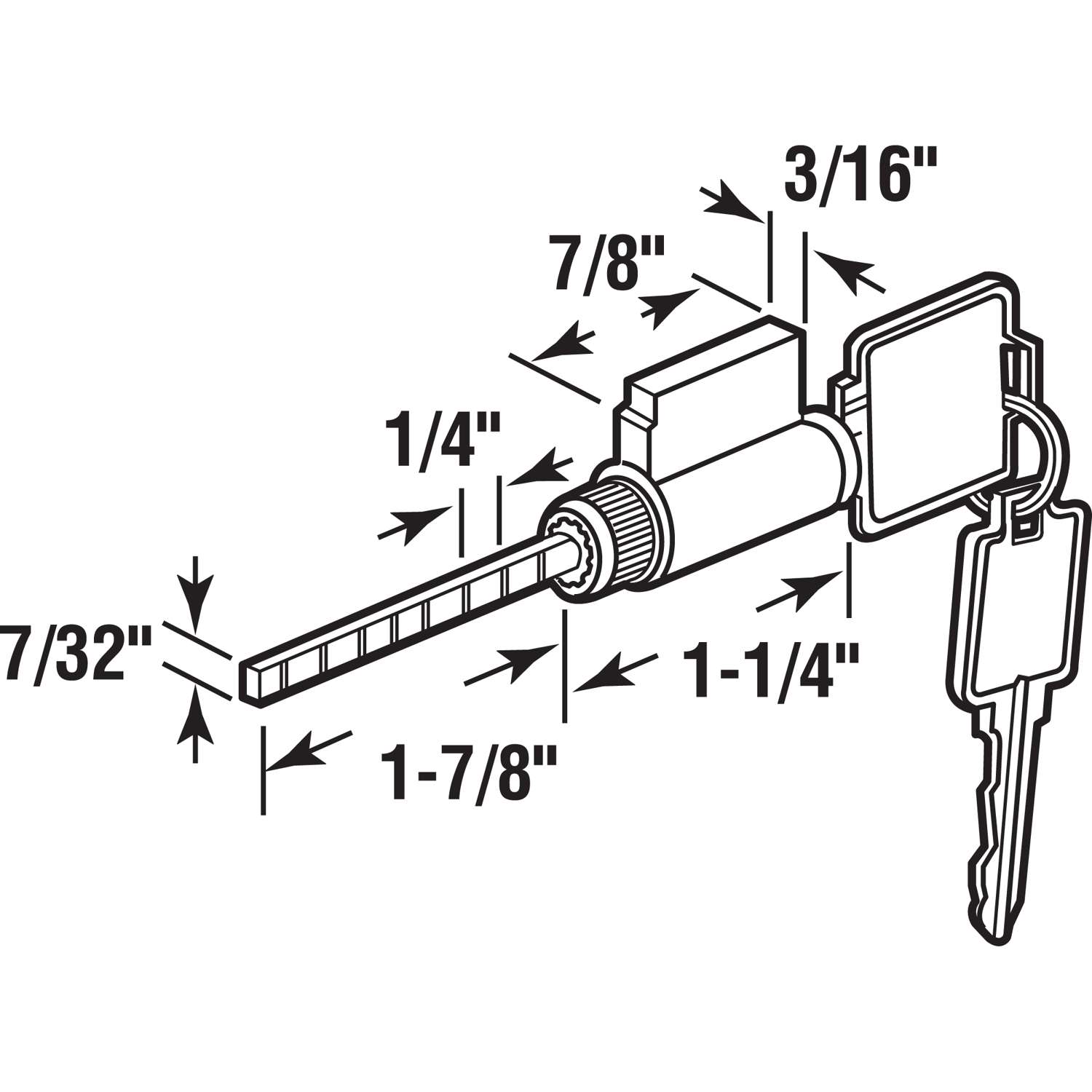

  • For further dimensional information, please see the line drawing

Specifications

  • What's Included: 2 keys, 1 lock cylinder, 1 tailpiece
  • Brand Name: Prime-Line
  • Product Type: Cylinder Lock
  • Commercial or Residential: Commercial and Residential
  • Finish: Brass Plated
  • Height: 0.88 inch
  • Key Configuration: Keyed Differently
  • Keyway: KW
  • Length: 1.88 inch
  • Material: Brass
  • Number of Keys: 2 blade
  • Number of Pins: 5
  • Packaging Type: Carded
  • Brand Name: Prime-Line
  • Width: 0.88 inch
  • Click here to see the Safety Data Sheets for this product.
