Simpson Strong-Tie Galvanized Silver Steel Panel Sheathing Clip 50 pk
Shop all Simpson Strong-Tie
Item # 5049522
| Mfr # PSCL 7/16-R50
Roll over image to zoom
Image gallery
Product images
Roll over image to zoom
Product images
Product images
Price
$11.99
Pickup
Delivery
From:
Returns
Free returns on most items within 30 days.
Product Overview

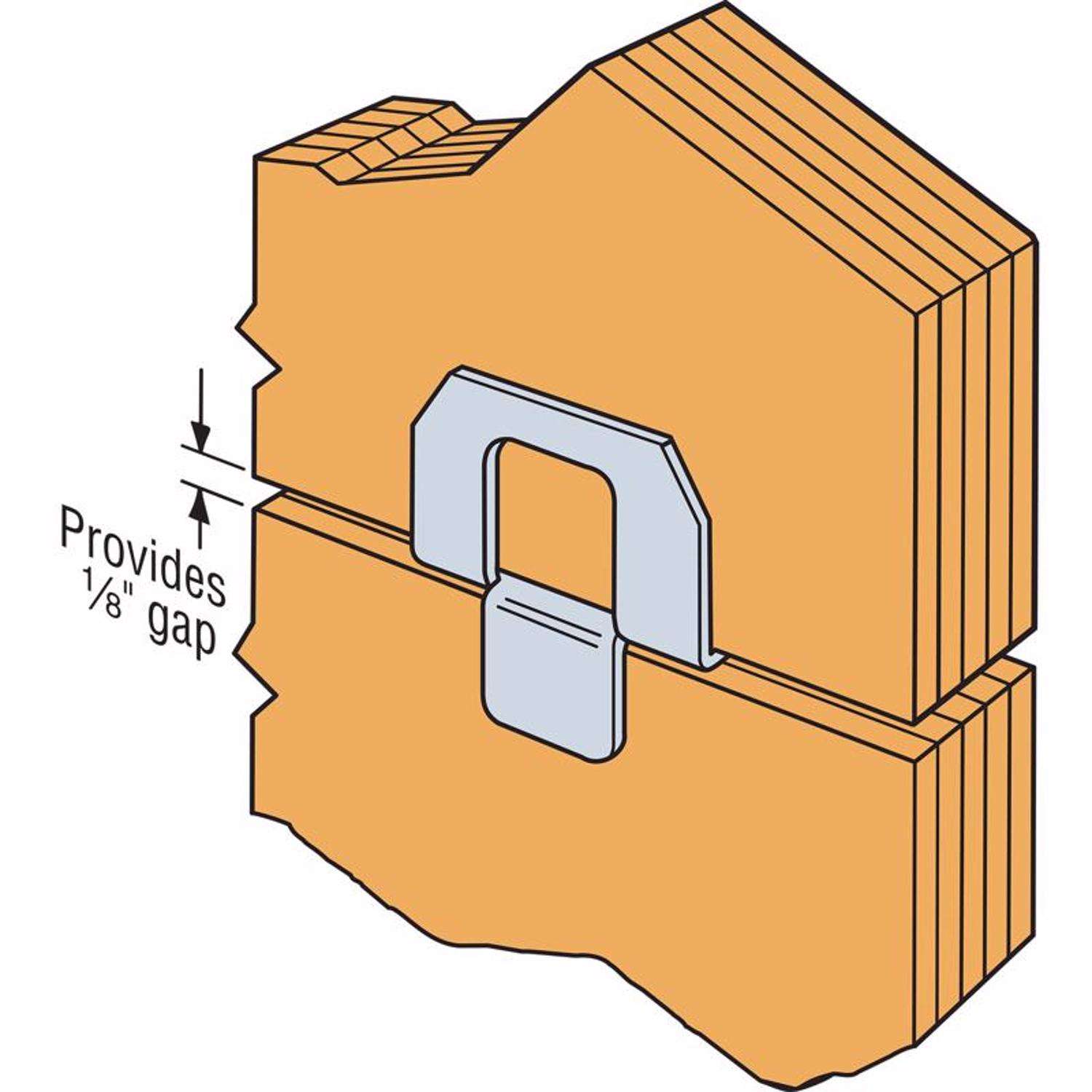

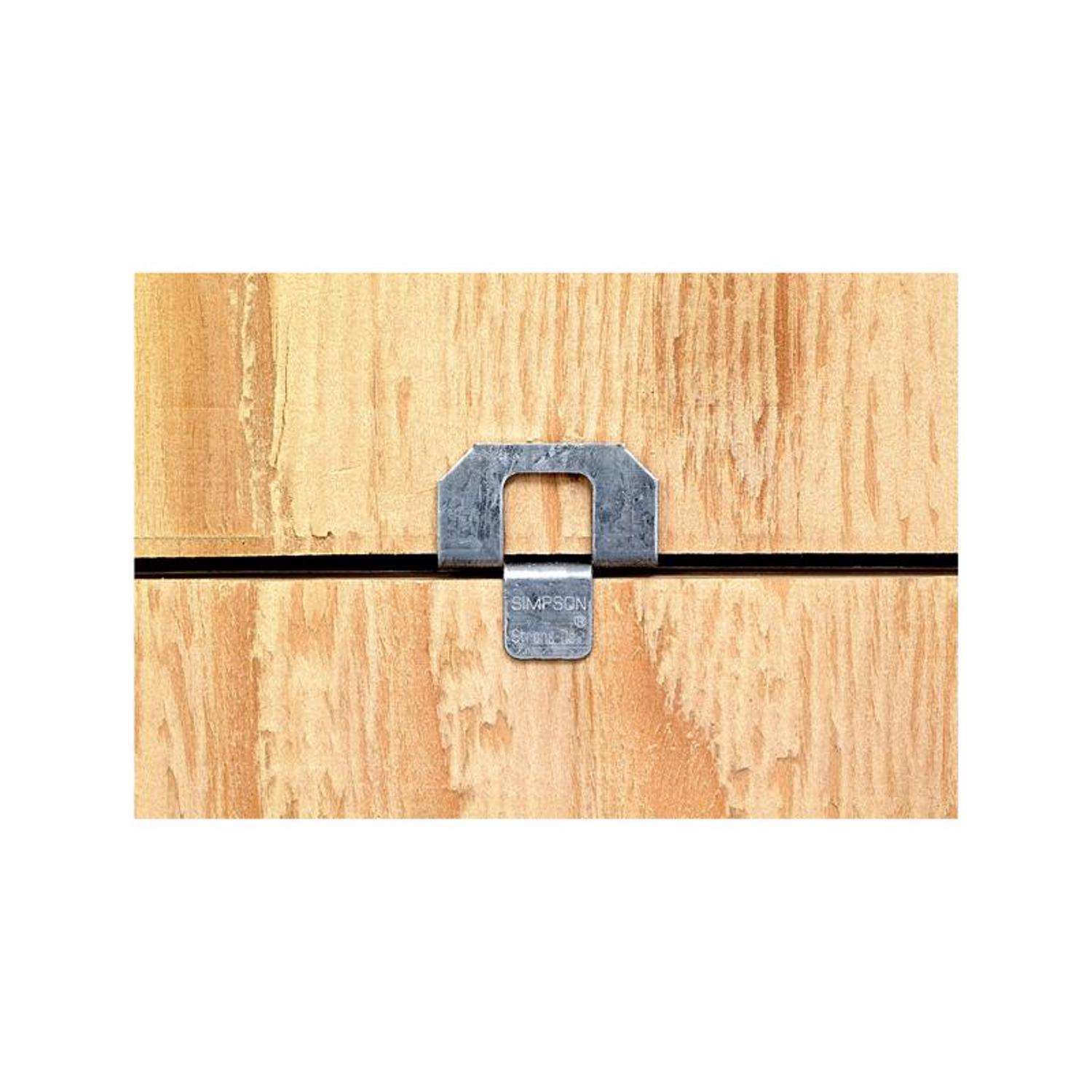

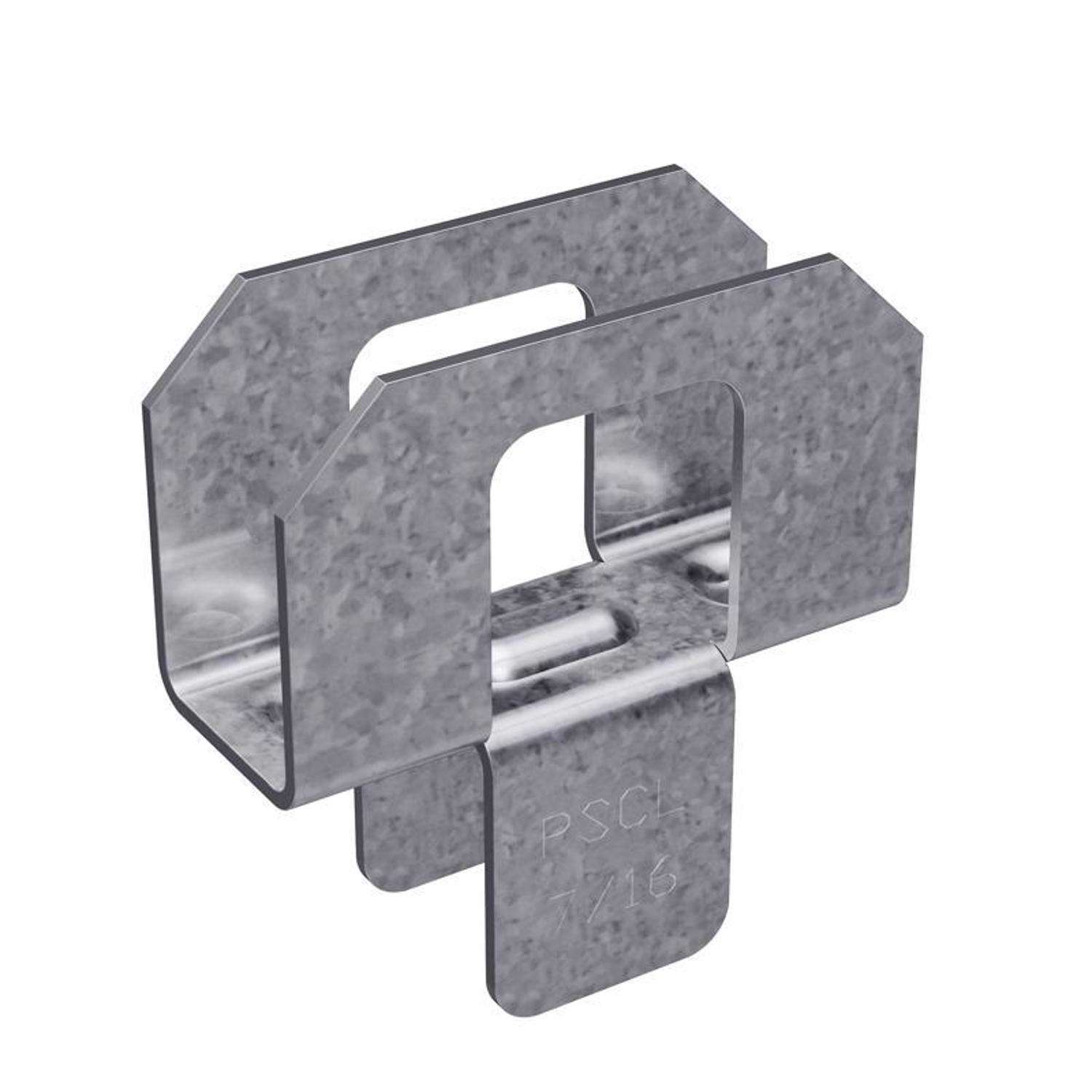

The PSCL is designed to brace unsupported sheathing edges when sheathing meets edge to edge without a rafter for support. This light sheathing clip provides a 1/8-in. gap to address shrinkage and expansion of roof sheathing. Inserted over the edges of adjacent plywood panels, the PSCL reduces deflection and keeps panels even to maintain a level plane on the structure. *
- For 7/16-in. panel thickness *
- Quick installation, no nails required *
- Keeps panels even for a level structural plane *
- Provides the 1/8-in. space between plywood panels as recommended by the American Plywood Association *
- Use the same size sheathing clip as the panel thickness *
- Made from 20-gauge steel *
Specifications
- Brand Name: Simpson Strong-Tie
- Product Type: Panel Sheathing Clip
- Color: Silver
- Finish: Galvanized
- Gauge: 20 Gauge
- Length: 1.25 inch
- Material: Steel
- Number in Package: 50 pack
- Packaging Type: BOXED
- Brand Name: Simpson Strong-Tie
- Click here to see the Safety Data Sheets for this product.
