Product Overview

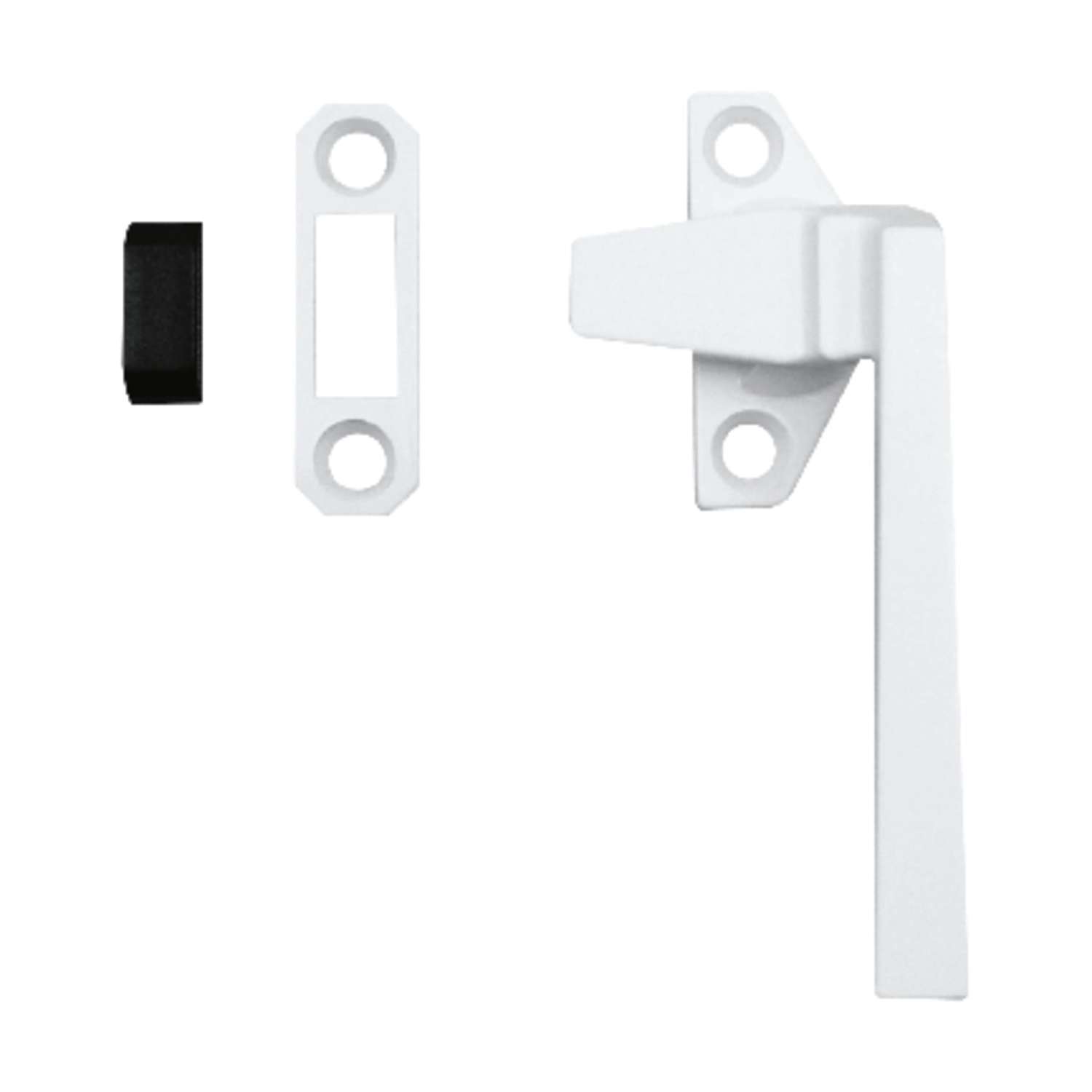

This is a right-handed diecast casement locking handle with an offset base found on many contemporary casement windows (as viewed for the inside looking out). The mounting holes are positioned offset of the centerline down the base placing them closer to the window frame edge by 13/16 in. from the tip of the lock to the center of the mounting holes. This handle has an a white finish with mounting holes for the handle assembly and the keeper at 1-1/2 in. on center.
  • Used by many contemporary window manufactures
  • This contemporary design is similar to a Truth hardware design
  • 1-1/2 in. on center mounting holes
  • Diecast construction with a white finish
  • Matching left hand casement operator is Prime-Line part H 3820
  • Mounting hardware included
  • A Phillips head screwdriver is required for installation

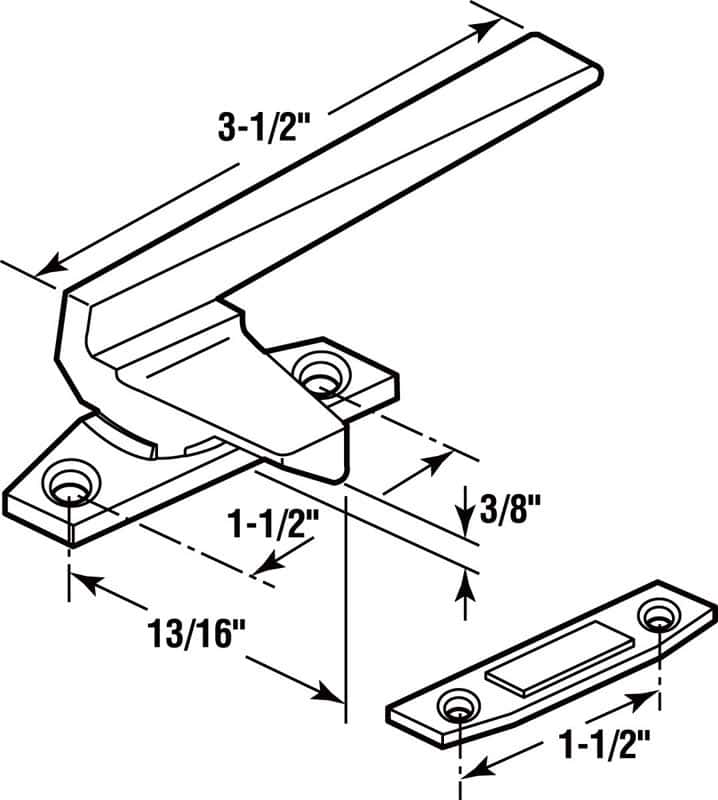

  • For further dimensional information, please see the line drawing

Specifications

  • Brand Name: Prime-Line
  • Product Type: Casement Operator Tee Handle
  • Color: WHITE
  • Finish: Die-Cast
  • Hardware included: YEs
  • Length: 3.5 inch
  • Material: Steel
  • Number in Package: 1 pack
  • Packaging Type: Carded
  • Right or Left: Right
  • Brand Name: Prime-Line
  • Click here to see the Safety Data Sheets for this product.
