Product Overview

This casement window operator is a right-handed, bronze, surface mount body type with four mounting holes in the top of the body and mounts directly onto the sill. It has a 9 in. steel arm with a round disc on the tip The disc slides in the Prime-Line part H 3595 casement track located on the bottom edge of the casement window. It is worm gear driven by a 3/8 in. crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included.
  • Constructed of diecast and steel material
  • Comes in a neutral gray color to blend with existing hardware, in a corrosion resistant, baked-on enamel finish
  • Designed for use with awning windows manufactured by various manufacturers
  • Features an L-shaped mounting hole pattern to provide greater stability when cranking
  • Easy to install with only a few simple tools

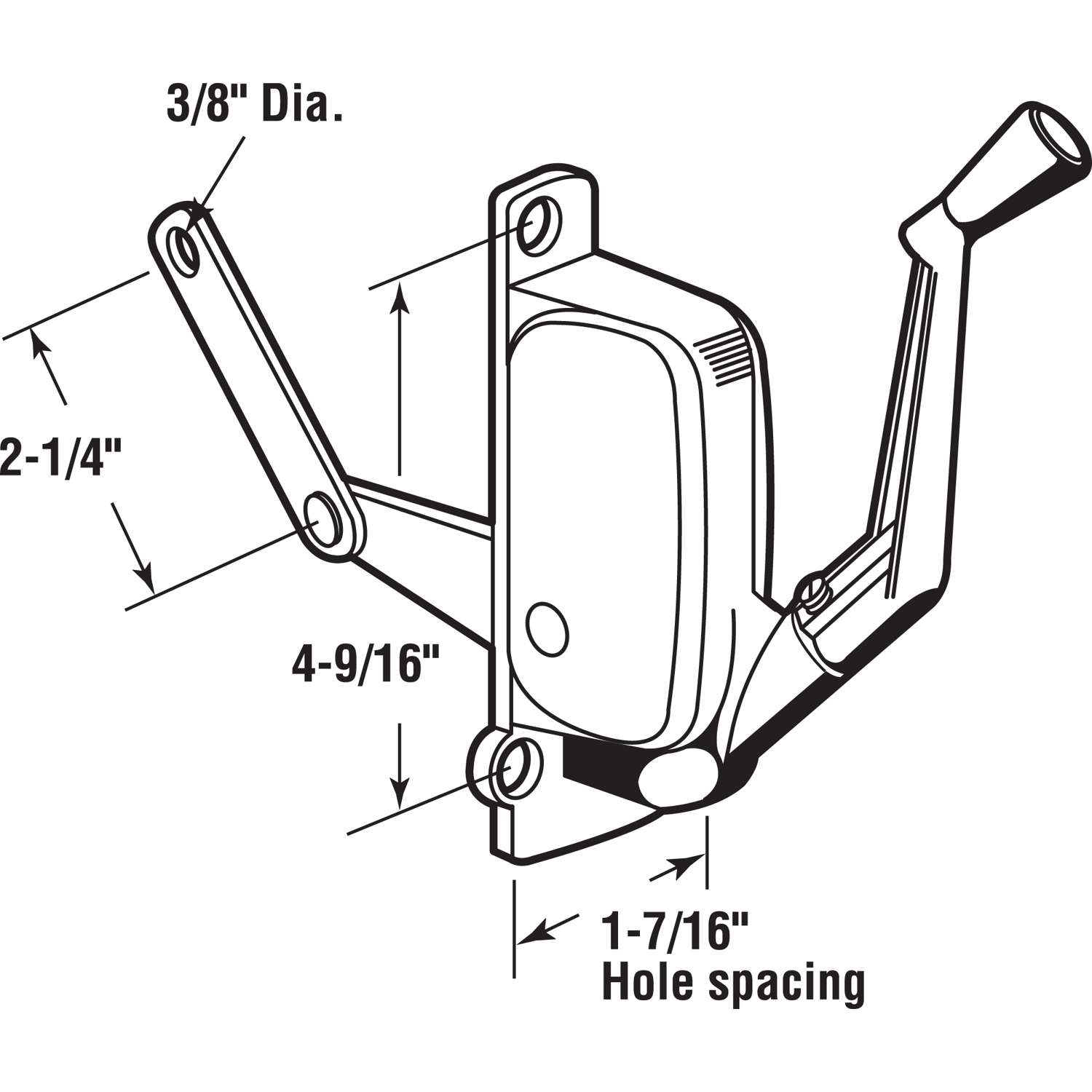

  • For further dimensional and specification information, please see the line drawing
  • A Phillips head screwdriver is required for Installation
  • For further dimensional information, please see the line drawing

Specifications

  • Brand Name: Prime-Line
  • Product Type: Window Operator
  • Brand Compatibility: Crown Windows
  • Color: Silver
  • Handle Type: Awning
  • Length: 2 1/4 inch
  • Material: Steel
  • Number in Package: 1 pack
  • Orientation: Right
  • Packaging Type: Carded
  • Brand Name: Prime-Line
  • Width: 4.5625 inch
  • Click here to see the Safety Data Sheets for this product.
