Prime-Line Bronze Zinc Right Single-Arm Casement Window Operator For Steel Framed Windows
Shop all Prime-Line
Item # 5068341
| Mfr # H 3523
Roll over image to zoom
Image gallery
Product images
Roll over image to zoom
Product images
Product images
Price
$19.99
Pickup
Delivery
From:
Returns
Free returns on most items within 30 days.
Product Overview

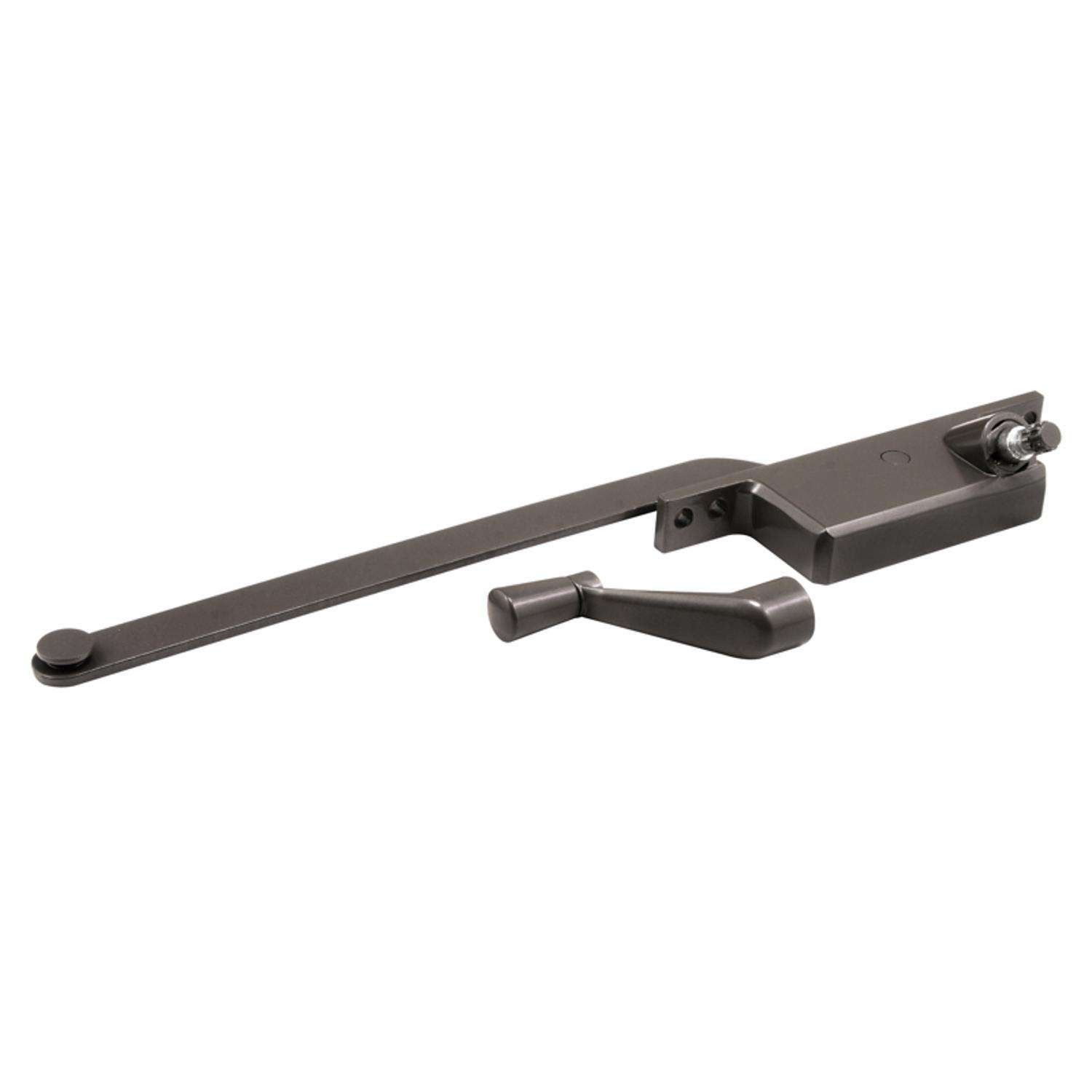

This casement window operator is a right-handed bronze square body type. It has a 8 in. steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the Prime-Line part H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 3/8 in. crank spindle.
- What's Included: Matching Crank Handle
- A Phillips head screwdriver is required for installation
- Steel worm drive gear for durability

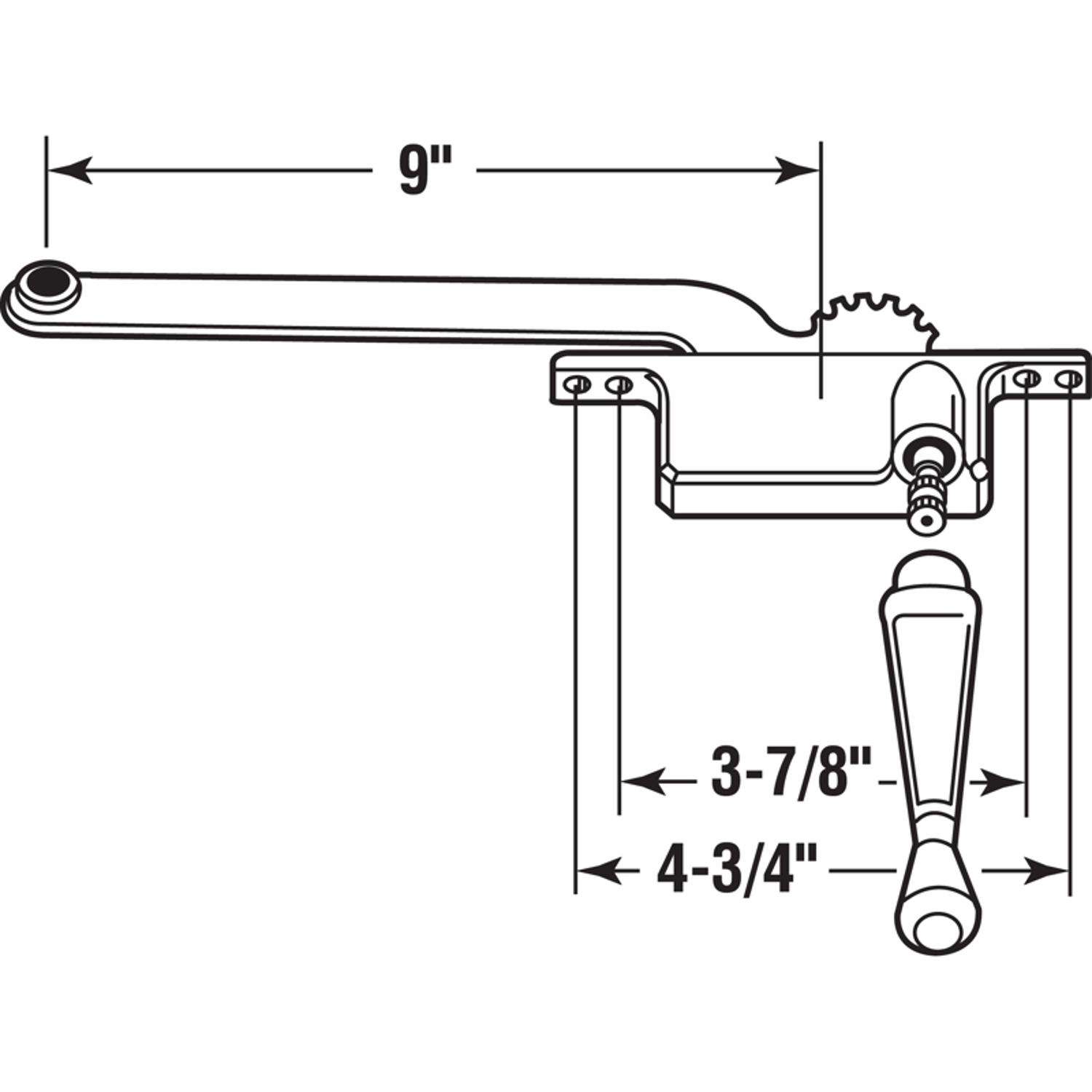

- Arm is 9 in. from middle of the guide button to the middle of the crank operator while closed
- Heavy duty diecast zinc construction with a bronze finish
Specifications
- What's Included: Matching Crank Handle
- Brand Name: Prime-Line
- Product Type: Window Operator
- Brand Compatibility: Steel Framed Windows
- Color: Bronze
- Diameter: 3/8 inch
- Handle Type: Single-Arm Casement
- Length: 9 inch
- Material: Zinc
- Number in Package: 1 pack
- Orientation: Right
- Packaging Type: Carded
- Brand Name: Prime-Line
- Click here to see the Safety Data Sheets for this product.
