Prime-Line Bronze Steel Right Single-Arm Casement Operator For Steel Framed Windows
Shop all Prime-Line
Item # 53604
| Mfr # H 3511
Roll over image to zoom
Image gallery
Product images
Roll over image to zoom
Product images
Product images
Price
$34.99
Pickup
Delivery
From:
Returns
Free returns on most items within 30 days.
Product Overview

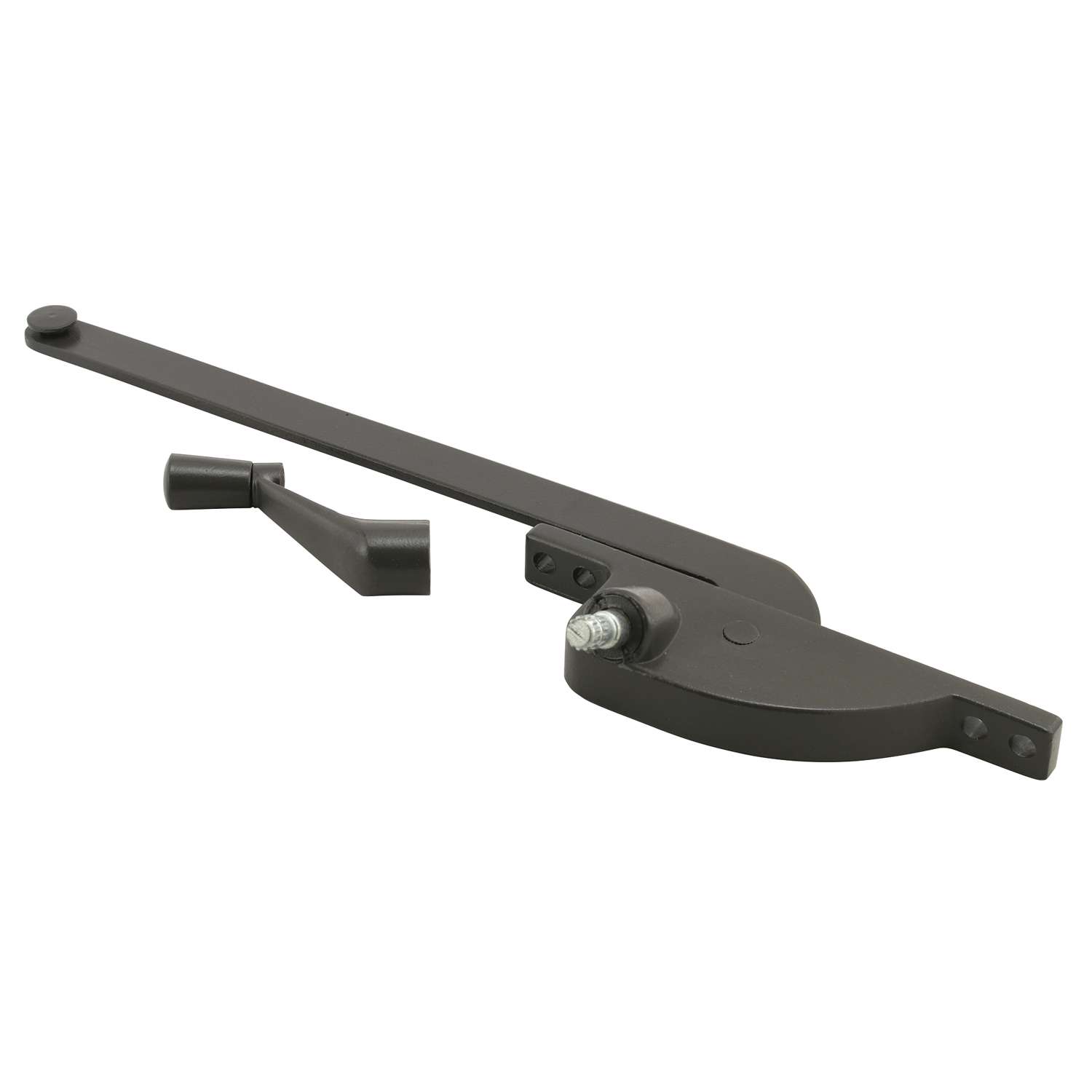

This casement window operator is a right-hand Bronze Teardrop body type . It has a 9 in. steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 5/16 in. crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 and 4-3/4 in. on center.
- Teardrop Style Body
- Bronze Finish
- 3-7/8 and 4-3/4 in. Mounting Holes
- 9 in. Steel Arm
- Right handed (as viewed from inside looking out)
- 5/16 in. crank spindle
- Matching crank handle included

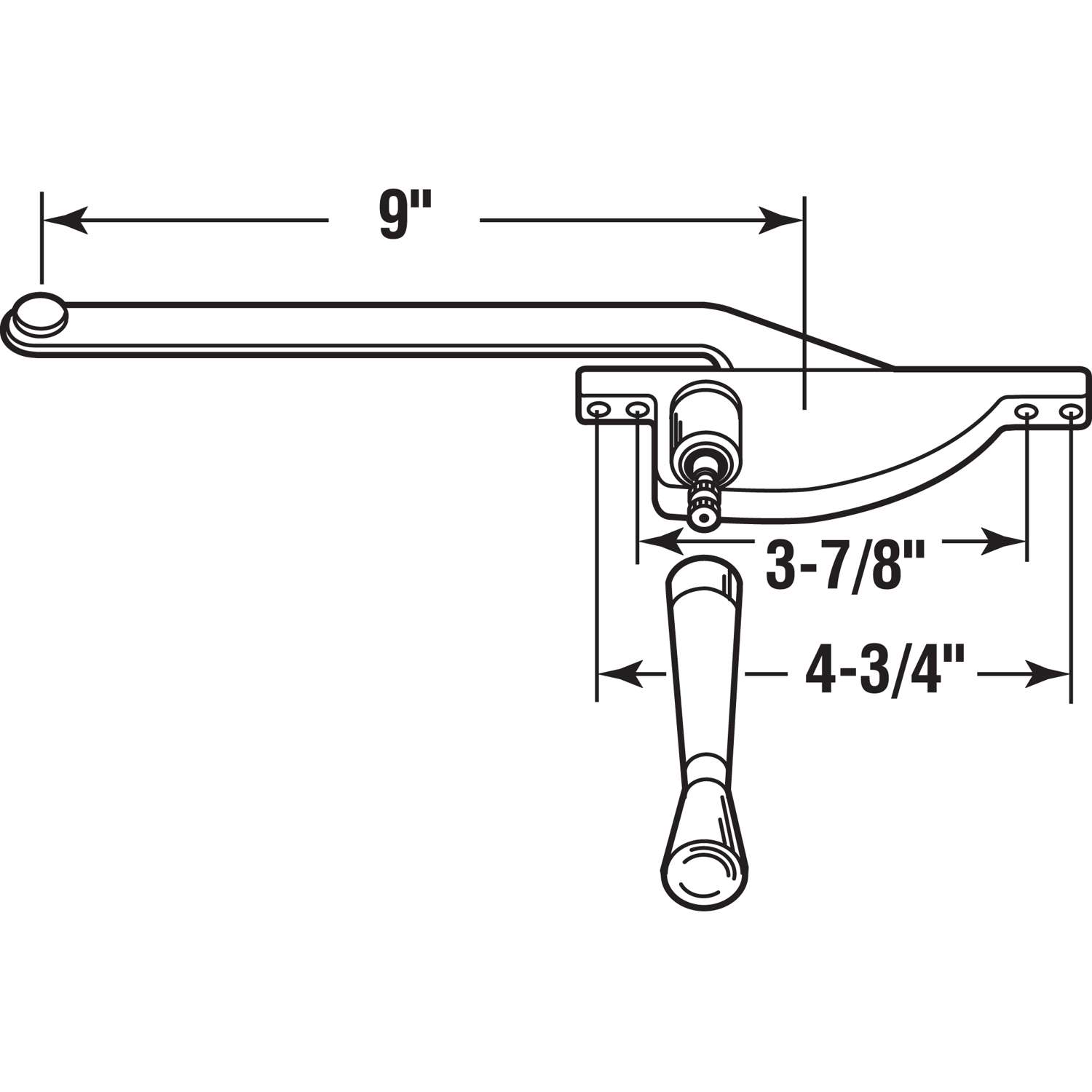

- For further dimensional information, please see the line drawing
Specifications
- Brand Name: Prime-Line
- Product Type: Operator
- Brand Compatibility: Steel Framed Windows
- Color: Bronze
- Handle Type: Single-Arm Casement
- Length: 9 inch
- Material: Steel
- Number in Package: 1 pack
- Orientation: Right
- Packaging Type: Carded
- Brand Name: Prime-Line
- Click here to see the Safety Data Sheets for this product.
