Product Overview

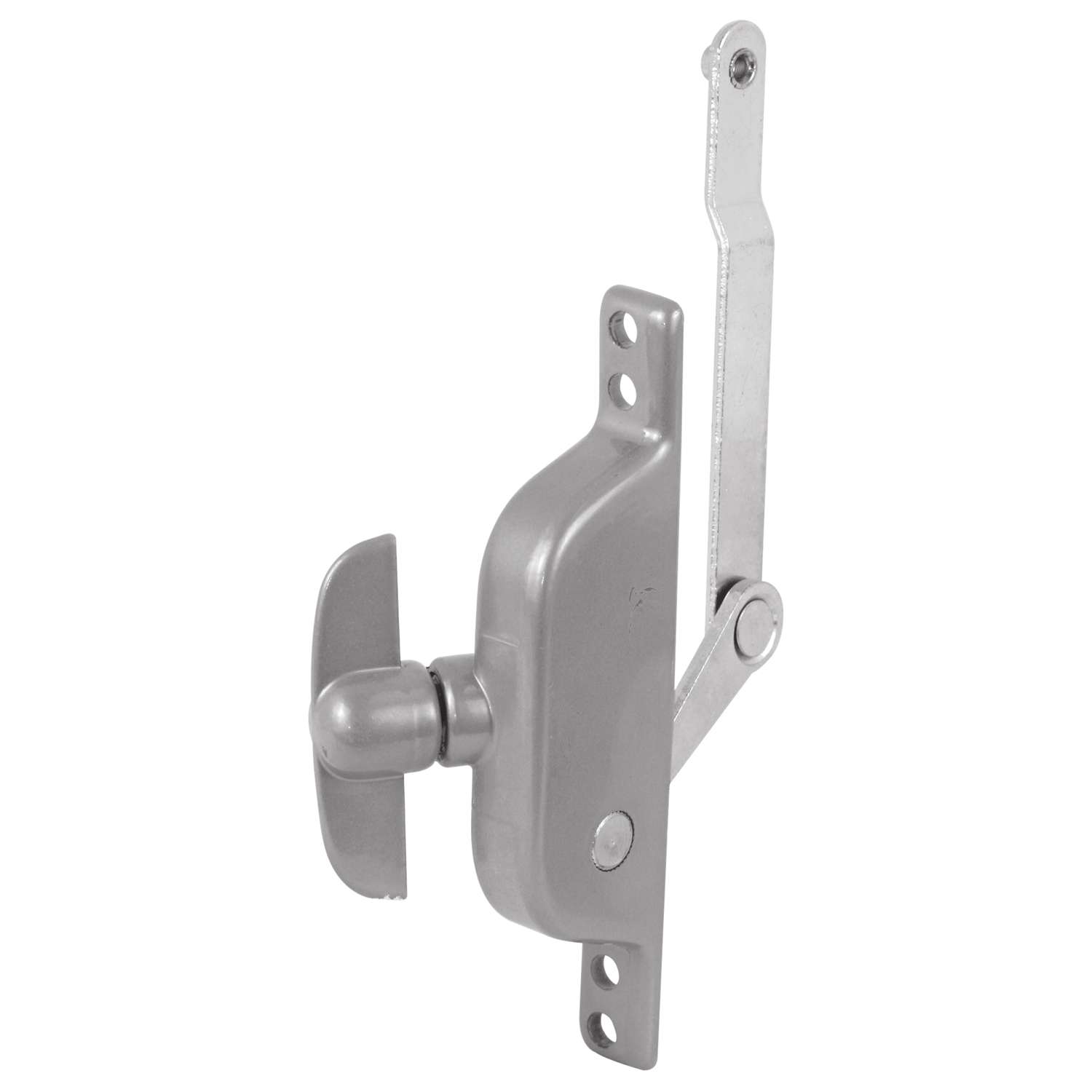

This is a jalousie operator in an aluminum finish that is diecast construction. Used on Daryl Windows as well as a variety of other manufacturers. The 3-5/8 in. link arm has an offset at the end. Mounting holes are 4-3/4 in. or 3-7/8 in. on center. It is a reversible, non-handed design that can be used on either left or right-handed installations. Matching T-handle is included and easily fits on the 5/16 in. spindle.
  • Constructed of diecast and steel material
  • Comes in a neutral gray color to blend with existing hardware, in a corrosion resistant, baked-on enamel finish
  • Designed for use with jalousie windows manufactured by Daryl Windows and a variety of other manufacturers
  • Features an offset link arm and crank handle
  • Easy to install with only a few simple tools

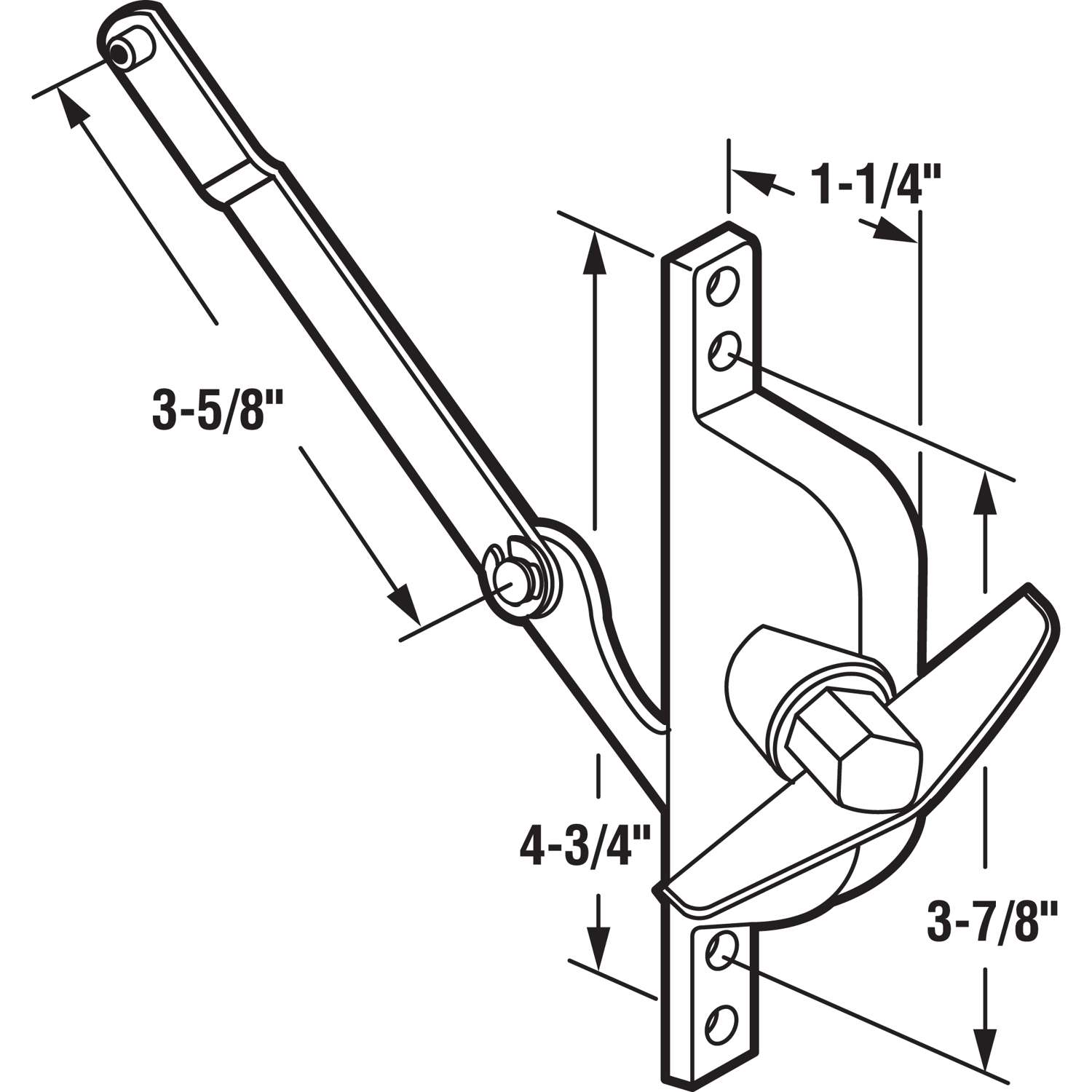

  • For further dimensional and specification information, please see the line drawing
  • A Phillips head screwdriver is required for installation
  • For further dimensional information, please see the line drawing

Specifications

  • Brand Name: Prime-Line
  • Product Type: Operator w/Crank
  • Brand Compatibility: Daryl Windows
  • Color: GRAY
  • Handle Type: Jalousie
  • Hardware included: YEs
  • Length: 3 5/8 inch
  • Material: Cast Metal
  • Number in Package: 1 pack
  • Orientation: Left/Right
  • Packaging Type: Carded
  • Brand Name: Prime-Line
