Product Overview

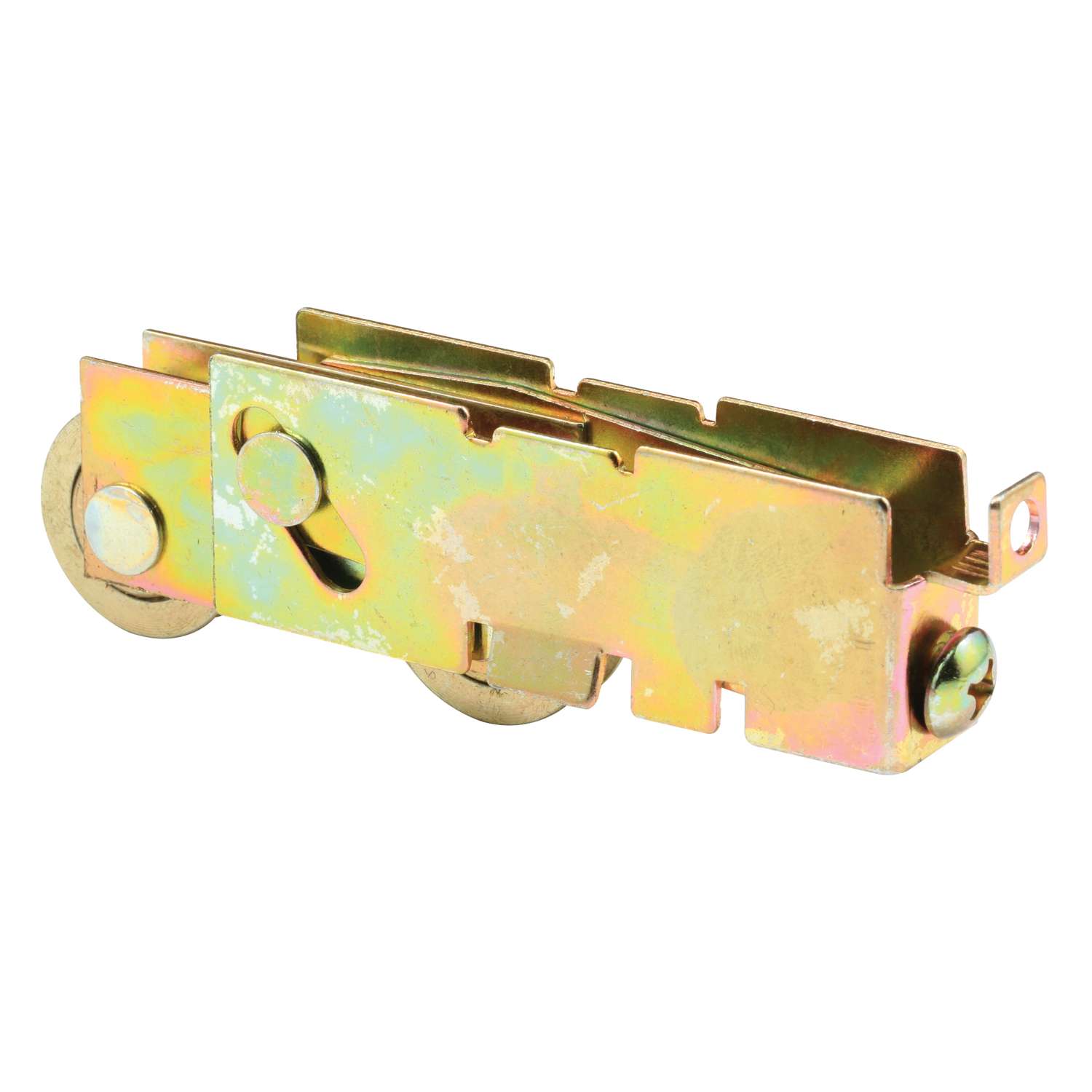

This is a F-tab tandem roller assembly with two 1-1/8 in. concave steel ball bearing rollers installed. When the corner screw passes through the F-tab, the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The adjustable stamped steel housing is 11/16 in. wide with a 13/16 in. flare, 1-1/8 in. tall and 3-1/8 in. long. Used by a variety of sliding patio door manufacturers.
  • Used by a variety of sliding patio door manufacturers
  • When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
  • 1-1/8 in. diameter tandem concave rollers
  • Stamped steel with steel ball bearing
  • Rear adjustment screw
  • Allows the door to roll smoothly
  • A Phillips head screwdriver is required for installation

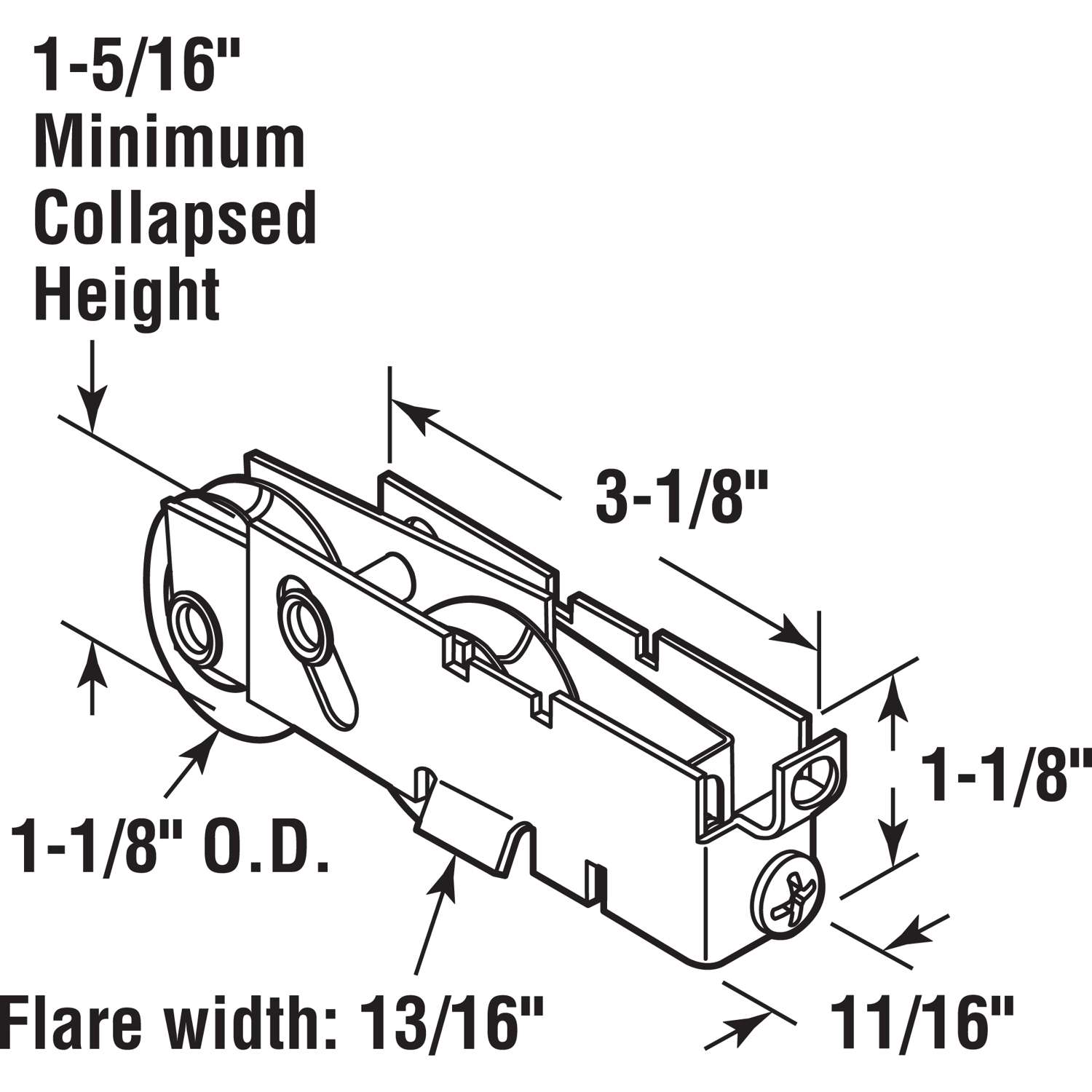

  • For further dimensional information, please see the line drawing

Specifications

  • Brand Name: Prime-Line
  • Product Type: Roller Assembly
  • Brand Compatibility: Guaranteed Products
  • Diameter: 1.13 inch
  • Handle Type: Universal
  • Length: 3-1/8 inch
  • Material: Steel
  • Number in Package: 1 pack
  • Packaging Type: Carded
  • Brand Name: Prime-Line
  • Width: 0.31 inch
  • Click here to see the Safety Data Sheets for this product.
