Product Overview

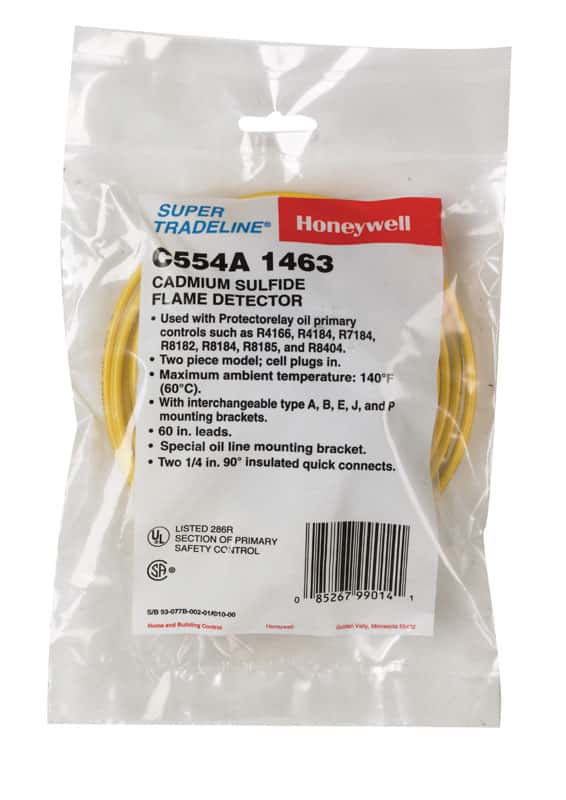

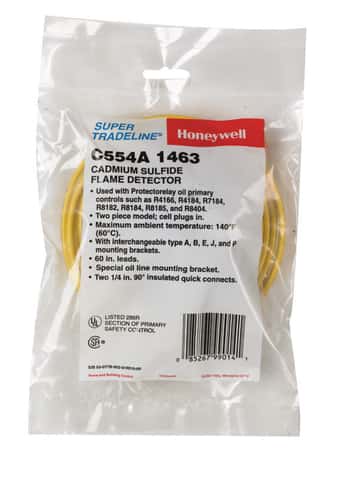

Cadmium sulfide flame detector for use with protect relay oil primary controls. Can be used with controls such as R4166, R4184, R7184, R8182, R8184, R8185 and R8404. Glass-to-metal hermetic seal in plug-in cell prevents deterioration by humidity, soot or oil fumes. On flame failure, the light sensitive cadmium sulfide cell, in conjunction with flame sensing circuitry, causes the Protectorelay control to shutdown the main oil burner.
  • Replaceable CAD cell
  • Photoconductive flame sensing device for sequencing oil burner systems
  • With interchangeable type A, B, E, J and P mounting brackets
  • Special oil line mounting brackets

Specifications

  • Brand Name: Honeywell Home
  • Product Type: Flame Detector
  • Application: For Sequencing Oil Burner Systems
  • CSA LIsted: Yes
  • Connection Length: 1 inch
  • Application: For Sequencing Oil Burner Systems
  • Maximum Temperature: 140 degree Fahrenheit
  • Mounting Type: Direct Mount
  • Packaging Type: BOXED
  • Brand Name: Honeywell Home
  • UL Listed: Yes
  • Click here to see the Safety Data Sheets for this product.
