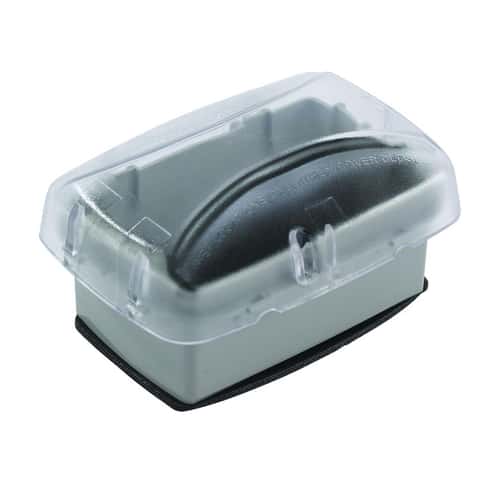

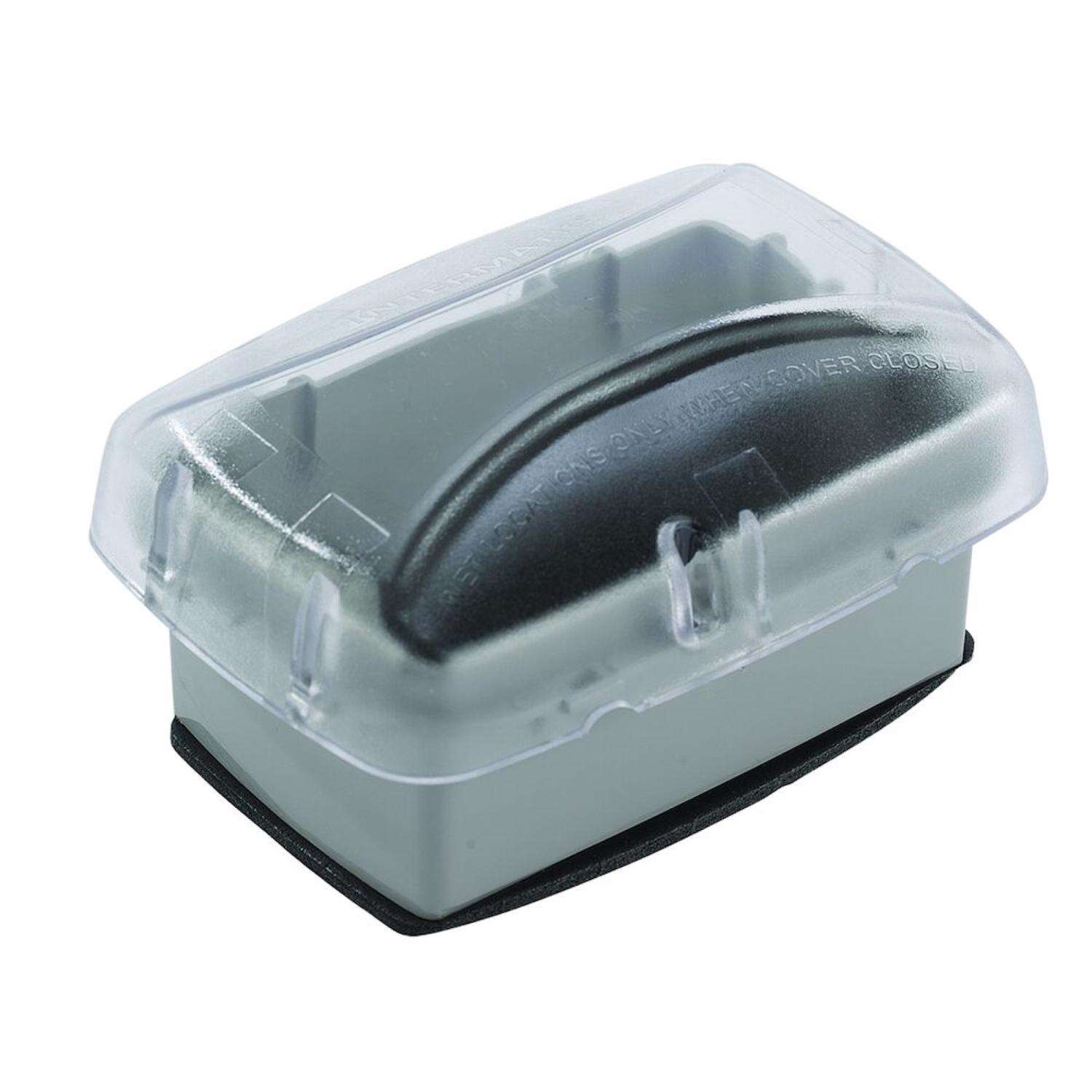

Intermatic Rectangle Plastic 1 gang 5.75 in. H X 4 in. W Weather Proof Receptacle Box Cover
Shop all Intermatic
Item # 3016778
| Mfr # WP3100C
Roll over image to zoom
Image gallery
Product images
Roll over image to zoom
Product images
Product images
Price
$8.59
Pickup
Delivery
From:
Returns
Free returns on most items within 30 days.
Product Overview

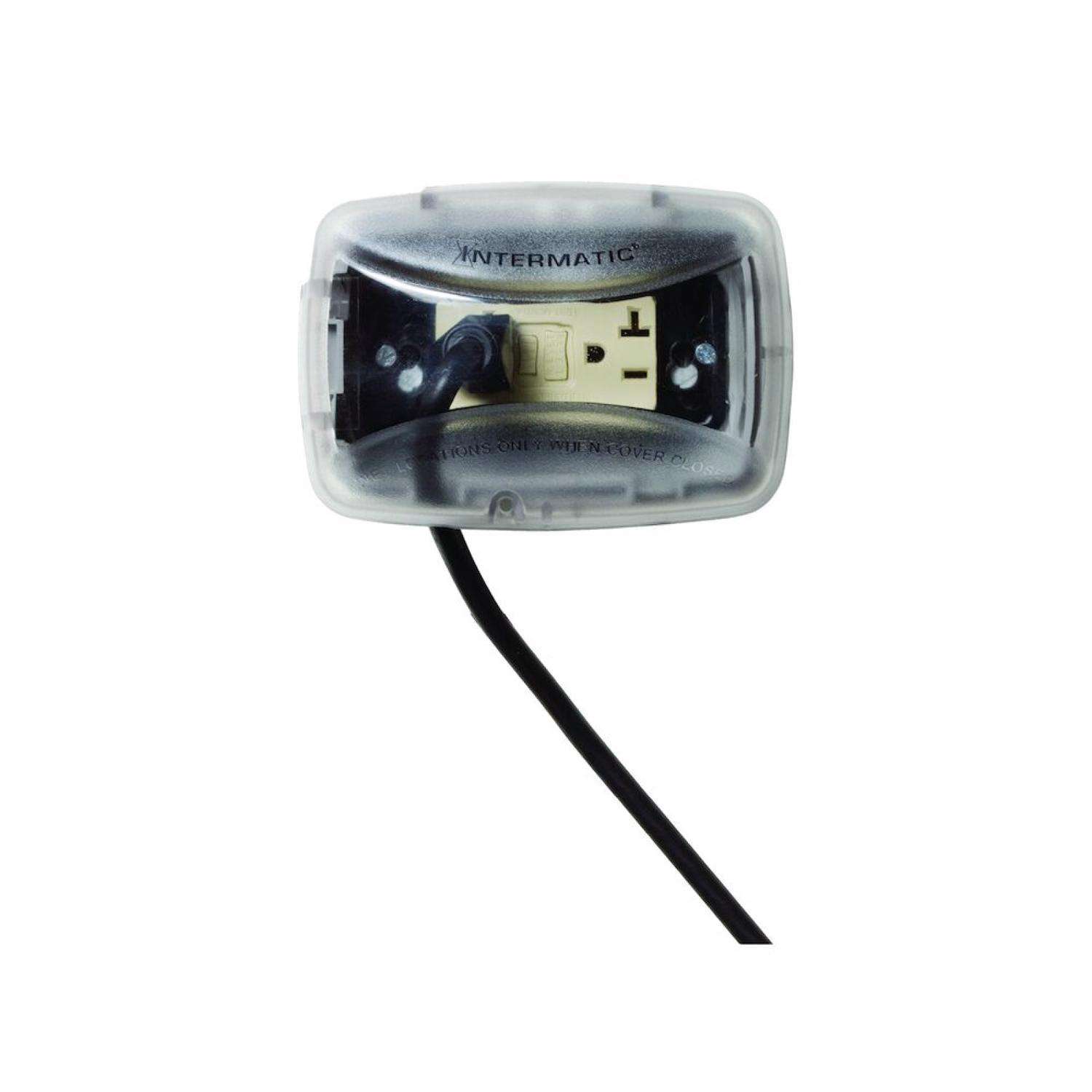

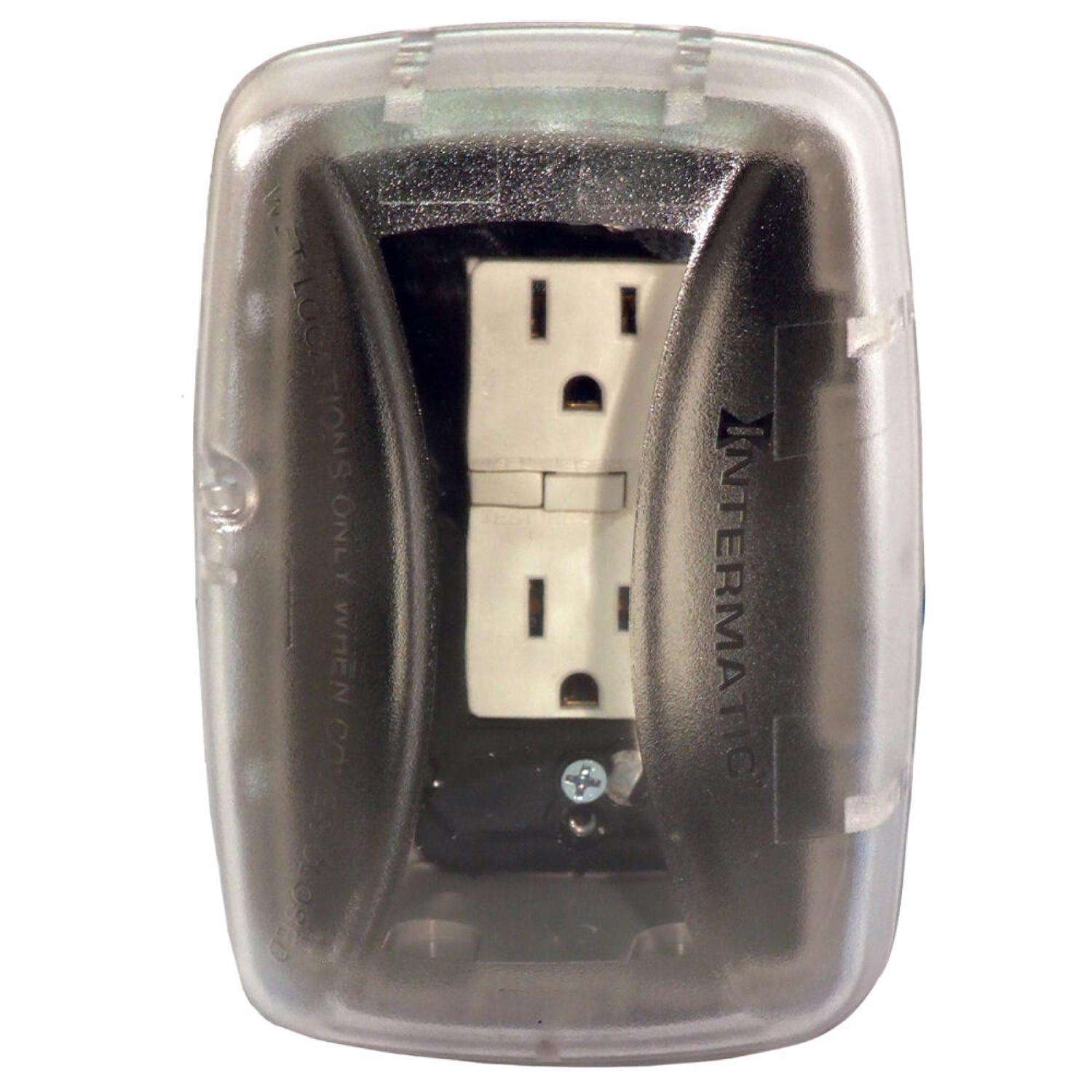

Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.
- Complies with 2020 NEC article 314.15 for damp and wet locations
- UL certified for type 3R outdoor enclosures
- Meets requirements for cold impact testing: -60 deg. F (-51 deg. C)
- Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
- 1/8 in. (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
- Lockable hasp: all models accept up to 1/4 in. (6 mm) dia shank, except WP3100C & WP3103C accept up to 1/8 in. (3 mm) dia shank
- Three inserts provided with all models that allow each model to meet multiple installations
- Max cord size: (2) #14 AWG or (1) #12 AWG
- Mounts vertically or horizontally
Specifications
- Brand Name: Intermatic
- Product Type: Weather Proof Receptacle Box Cover
- Color: Clear
- Depth: 2.75 inch
- Height: 5.75 inch
- Material: Plastic
- Number of Gangs: 1 gang
- Brand Name: Intermatic
- Shape: Rectangle
- UL Listed: Yes
- Width: 4 inch
- Click here to see the Safety Data Sheets for this product.
