Product Overview

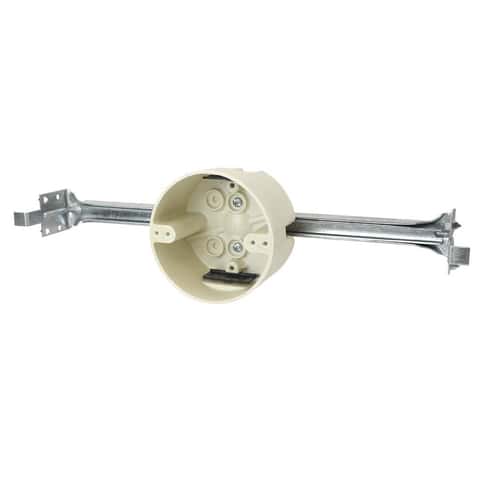

This 4 inch round 22.5 cu. in. Outlet Box is designed for new work applications. This premium box features fiberglass construction, is UL listed and carries a 2-hour fire rating. An adjustable bar hanger 16 in. - 24 in. is included.
  • High strength fiberglass reinforced polyester material
  • Non-distorting in high heat, impact resistant in cold temps
  • Factory installed with speed K klamps for securing nm cable
  • Knockouts on fiberglass boxes are complete, reducing drafts and easily removed with wire for no tools installation
  • Device holes are pre-tapped and tapered for secure device installation and drastically reduce device pull out
  • Patented non-metallic Speed K Klamps dependably secure wire in the box, should a knockout be inadvertently opened and not used, the Speed K Klamp is considered sufficient closure of the opening per UL
  • Fixture rated to 50 lbs.
  • For 16 in. to 24 in. on center joist applications
  • Combination fixture mounting patterns at widths of 2.75 in. and 3.5 in.

Specifications

  • Brand Name: Allied Moulded
  • Product Type: Ceiling Box
  • Box Type: Ceiling/Wall
  • Capacity: 22.5 cubic inch-x
  • Color: OFF WHITE
  • Height: 3.12 inch
  • Material: Polycarbonate
  • Number of Gangs: 1 gang
  • Number in Package: 1 pack
  • Brand Name: Allied Moulded
  • Shape: Round
  • UL Listed: Yes
  • Work Style: New Work
