Product Overview

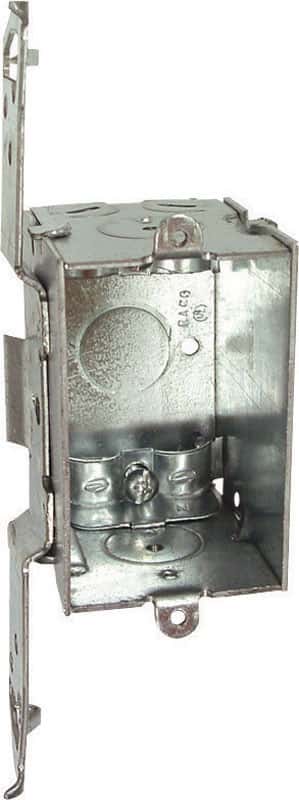

Gangable switch boxes offer the option of constructing a box to hold two or more devices. Reference the box selection section in the front of this catalog for complete description of bracket types and features.
  • Acceptable for use in 2-hour fire rated walls
  • Includes "TS" side-mount bracket with gauging tabs and recessed nailing spurs for metal or wood studs
  • 2-1/2 in. Deep
  • Gangable with Nonmetallic Sheathed Cable Clamps
  • L clamps provided for non-metallic sheathed cable (NMSC)
  • 1/2 in. Setback
  • 12.5 cu. in. capacity
  • Gangable switch boxes offer the option of constructing a box to hold two or more devices

Specifications

  • Brand Name: Raco
  • Product Type: Switch Box
  • Application: For Non-Metallic Sheathed Cable
  • Box Type: Wall
  • CSA LIsted: No
  • Capacity: 12-1/2 cubic inch
  • Color: GRAY
  • Depth: 2.5 inch
  • Application: For Non-Metallic Sheathed Cable
  • ETL Listed: No
  • Height: 3 inch
  • Knockout Size: 1/2 inch
  • Material: Steel
  • Number of Gangs: 1 gang
  • Number of Knockouts: 7
  • Number in Package: 1 pack
  • Brand Name: Raco
  • Shape: Rectangle
  • UL Listed: Yes
  • Weather Resistant: No
  • Width: 2
