Product Overview

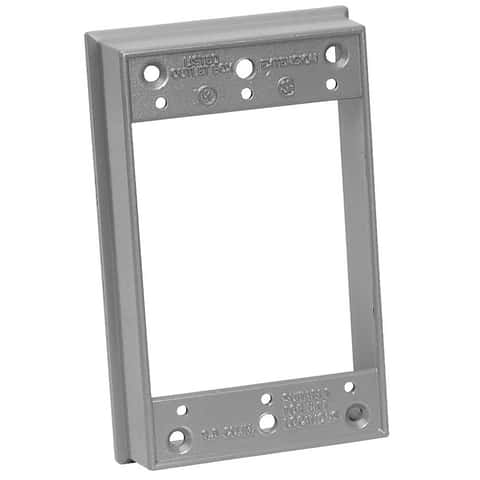

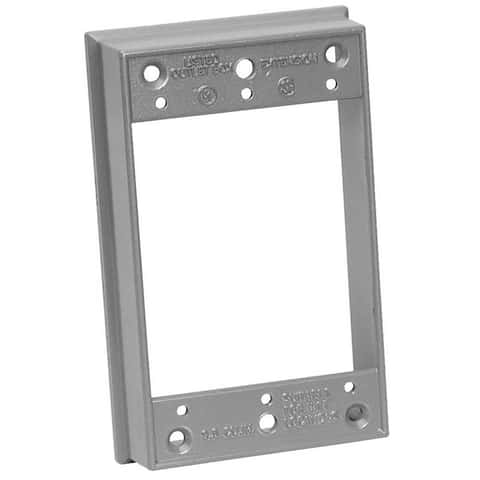

Sigma's weatherproof extension rings increase the capacity of a weatherproof box. The rugged, die-cast construction prevents moisture penetration making the extension rings suitable for wet, damp or dry locations. They are powder coated for corrosion resistance and include gasket and hardware.
  • What's Included: Extension ring, gasket and hardware
  • Features 9.5 cubic inch capacity
  • Extension ring increases the capacity of a one-gang weatherproof box
  • Includes gasket and (4) #6-32 UNC-2A X 1.37-in screws
  • Die-cast metal construction and powder coated for corrosion resistance
  • Can be mounted in vertical or horizontal orientations
  • Product is UL and CSA listed, suitable for wet locations
  • Product is NEMA 3R rated

Specifications

  • What's Included: Extension ring, gasket and hardware
  • Brand Name: Sigma Engineered Solutions
  • Product Type: Extension Ring
  • CSA LIsted: Yes
  • Capacity: 9.5 cubic inch-x
  • Color: GRAY
  • Depth: 1.125 inch
  • Height: 4-11/16 inch
  • Material: Metallic
  • Packaging Type: Shrinkwrapped
  • Brand Name: Sigma Engineered Solutions
  • Shape: Rectangle
  • UL Listed: Yes
  • Weather Resistant: Yes
  • Width: 3 inch
  • Work Style: New Work
