Product Overview

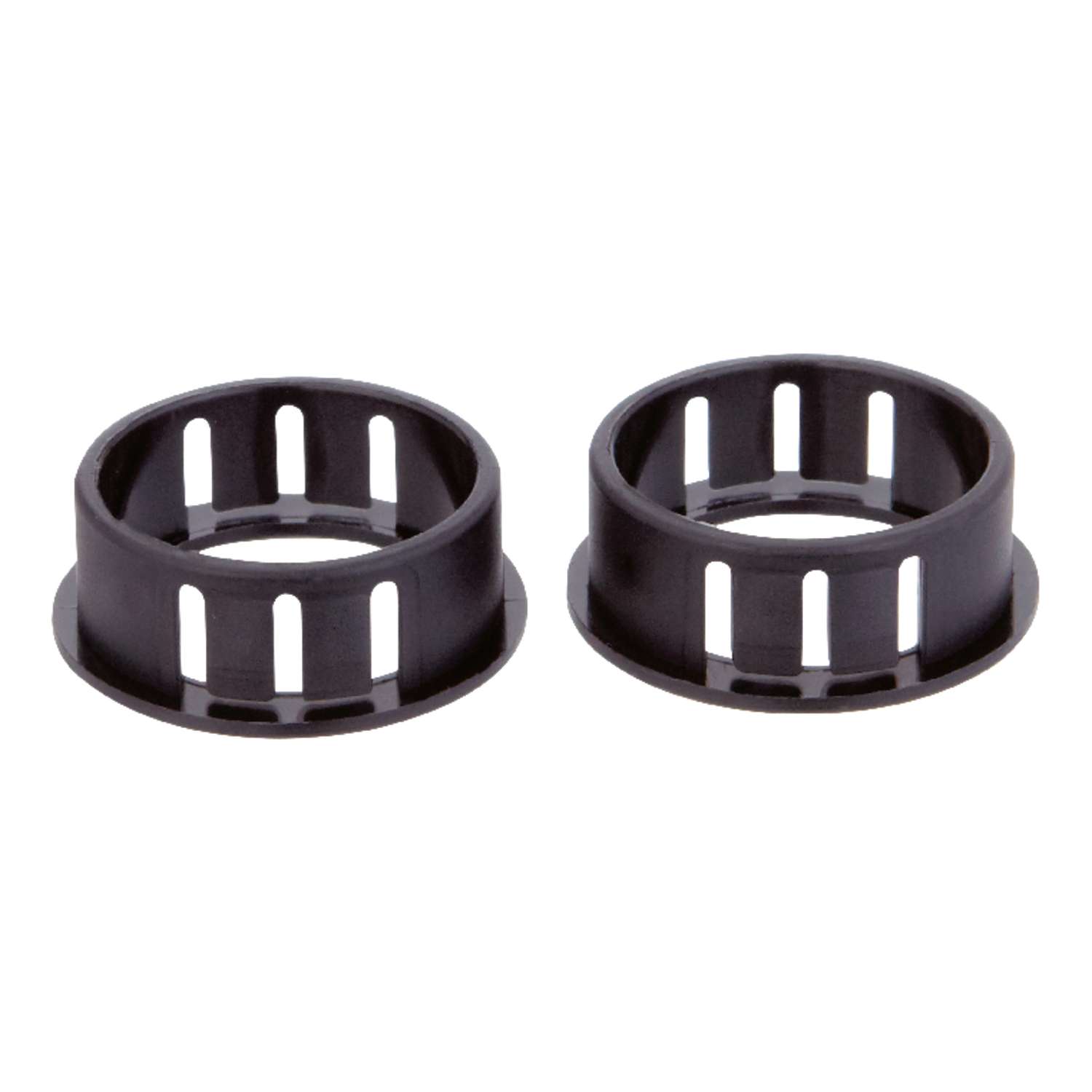

The nylon snap bushing is used in rough, unfinished holes, converting them into smooth openings to mechanically protect and insulate electrical and telecommunications cables, tubing, rope and utility lines. With multiple locking steps to easily snap into place in a mounting hole that has a panel thickness up to 0.125 inches and a mounting hole diameter of 1.093 inches.
  • Mechanically protects and insulates electrical and telecommunications cables, tubing, rope and utility lines
  • Used in rough, unfinished holes to convert into smooth, insulated openings
  • With multiple locking steps to easily snap into place in a mounting hole that has a panel thickness up to 0.125 inch
  • Nylon Snap Bushing

Specifications

  • Brand Name: Jandorf
  • Product Type: Bushing
  • Bushing Inside Diameter: 0.88 inch
  • CSA LIsted: Yes
  • Bushing Outside Diameter: 1.22 inch
  • Bushing Thickness: 0.45 inch
  • Insulating: Yes
  • Material: Nylon
  • Number in Package: 2 pack
  • Packaging Type: Carded
  • Brand Name: Jandorf
  • Trade Size: 1-3/32 inch
  • UL Listed: Yes
  • Click here to see the Safety Data Sheets for this product.
